9322S-P07-01-70: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerE Connector Solutions

Download Datasheet Parametric View All

9322S-P07-01-70 Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

9322S-P07-01-70 Parametric

Parameter Name	Attribute value
Objectid	1327457049
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.232 inch
subject depth	0.319 inch
body length	1.1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

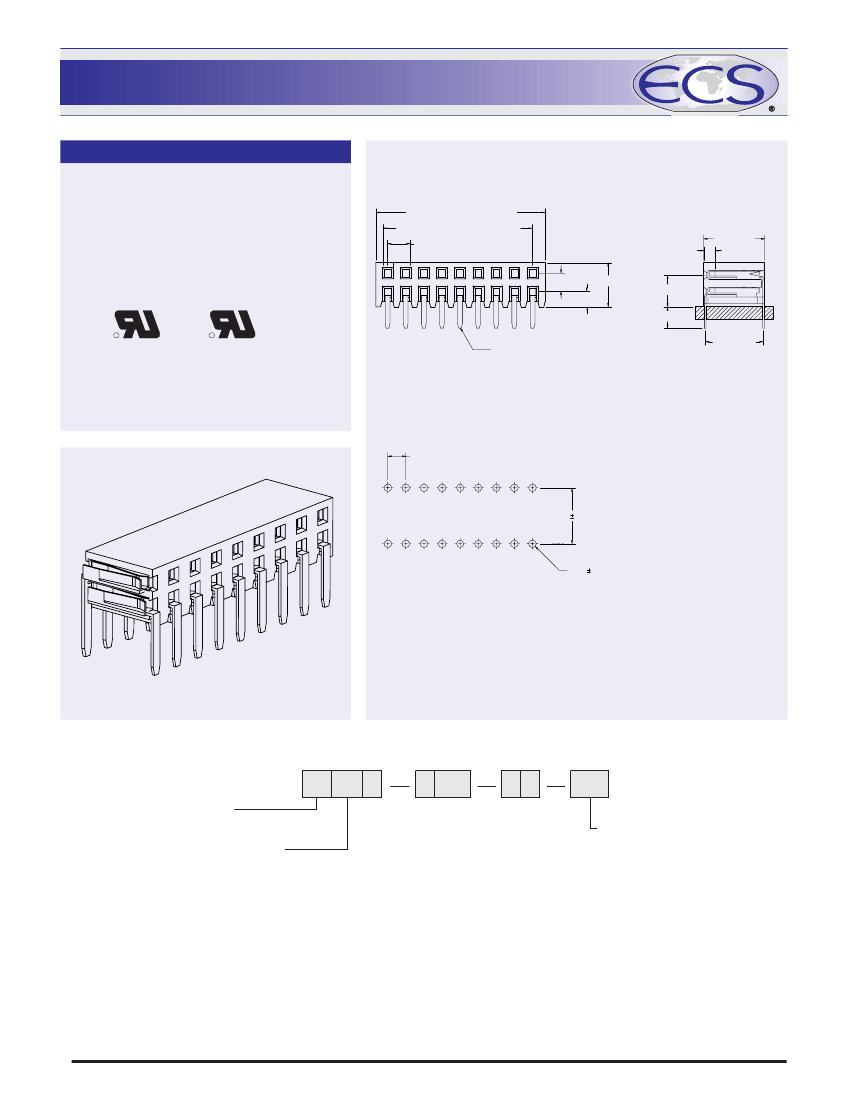

.100

[2.54] SOCKET, SIDE ENTRY

Specifications

Current Rating:

Insulator Resistance:

Contact Resistance:

Dielectric Withstanding:

Operating Temperature:

Max Processing Temp:

Contact Material:

Insulator Material:

Finish:

3 Amps

5000 Megohms min

20m ohms max

AC 500V

-40° ~± 105° C

230° C to 60 seconds

Phosphor Bronze

Polyester, UL 94V-0, PBT

See Contact Plating

SMT

.100 [2.54] X No of Positions

.100 [2.54] X (No of Contacts/2-1)

.100 [2.54]

.319 [8.10]

.075 [1.9]

.100 [2.54]

.232 [5.9]

.174 [4.42]

.0157 [.40]

.118 [3.0]

R

C

R

.310 [7.87]

PIN .0276 [.70] X .0098 [.25]

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

Products specifications are subject to be changed

without notice.

.100 .002 [2.54] TYP.

.310 .002 [7.87]

Recommended P.C.B Layout

.040 .002 [1.02] TYP.

Dimensions are in inches [mm]

PART NUMBERING

93 XX S

SERIES CODE

NO. OF CONTACTS

04

to

80

P 07

01

XX

CONTACT PLATING

Lead Free & RoHS Compliant

.000050” Nickel underplate

CONTACT

TAIL

03

= Gold Flash

80

= 10µ” Gold

85

= 15µ” Gold

90

= 30µ” Gold

70

= 100µ” Sn

75

= Au Flash

100µ” Sn

15

= 10µ” Au

100µ” Sn

25

= 15µ” Au

100µ” Sn

35

= 30µ” Au

100µ” Sn

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN

WWW.ECSCONN.COM
