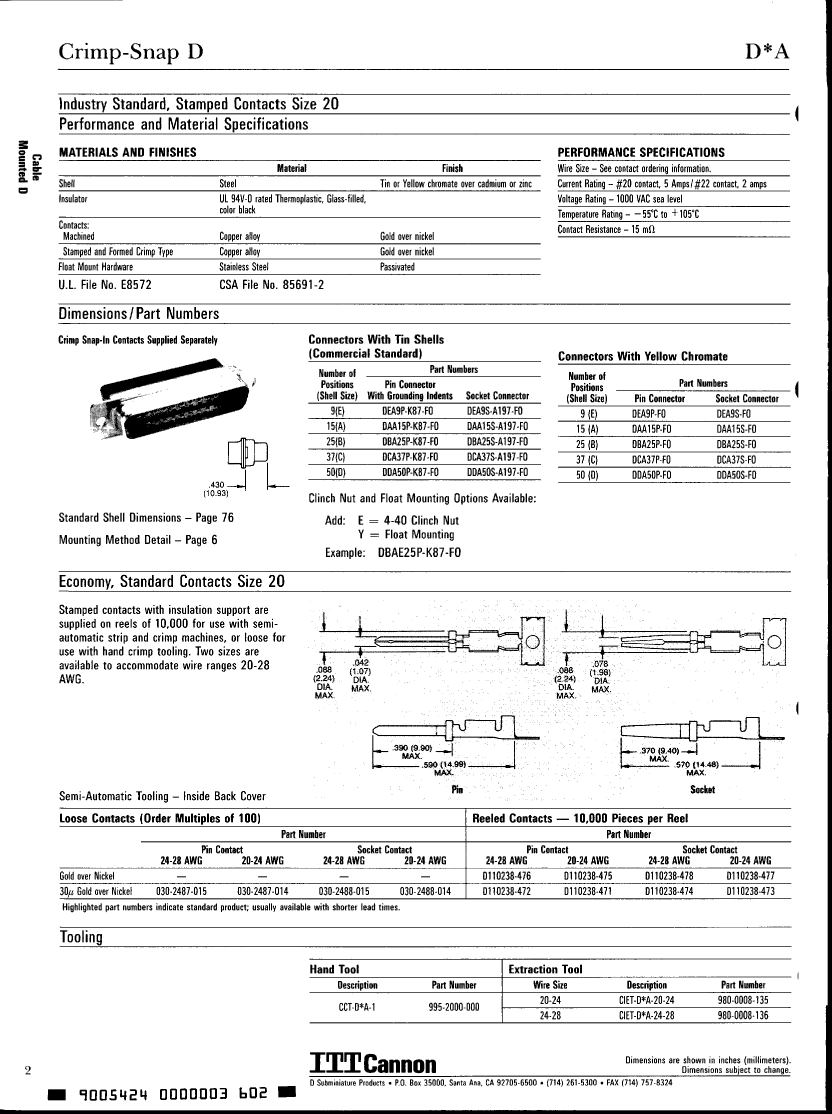

DBAE25P-F0 datasheet, PDF - EEWORLD Datasheet

DBAE25P-F0: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size265KB，3 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

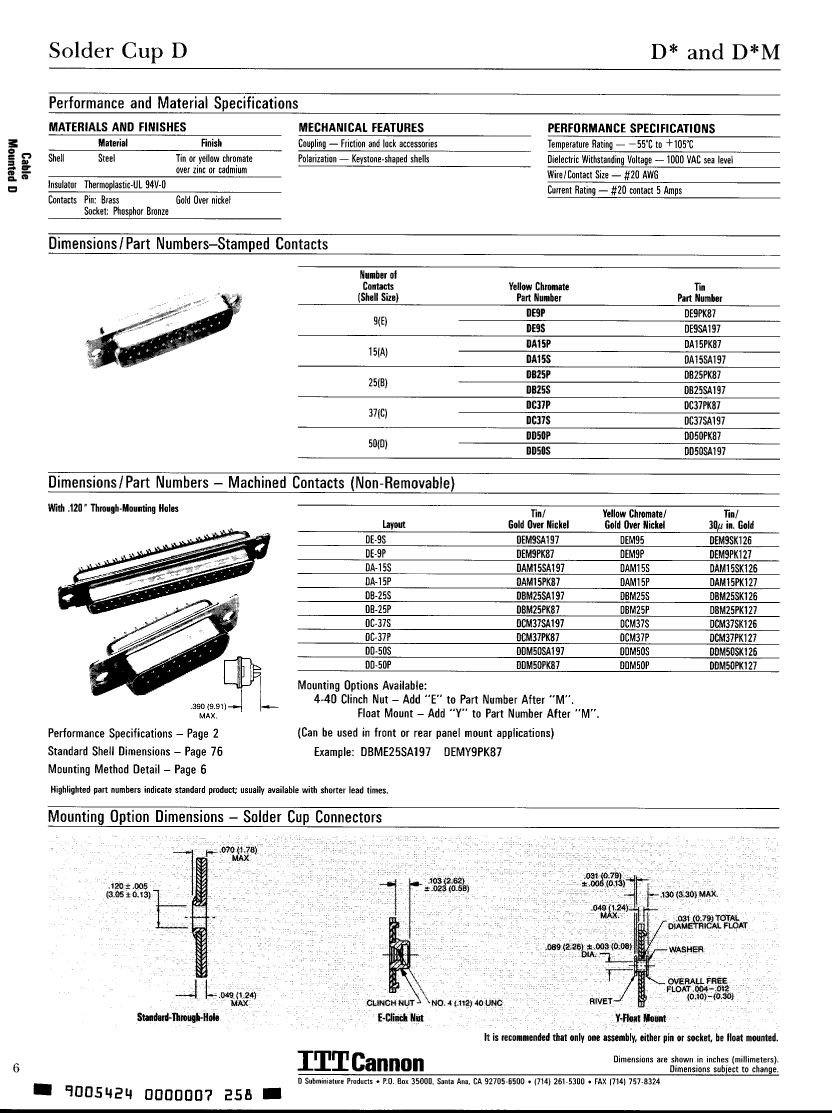

DBAE25P-F0 Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Objectid	300006727
Reach Compliance Code	compliant
ECCN code	EAR99

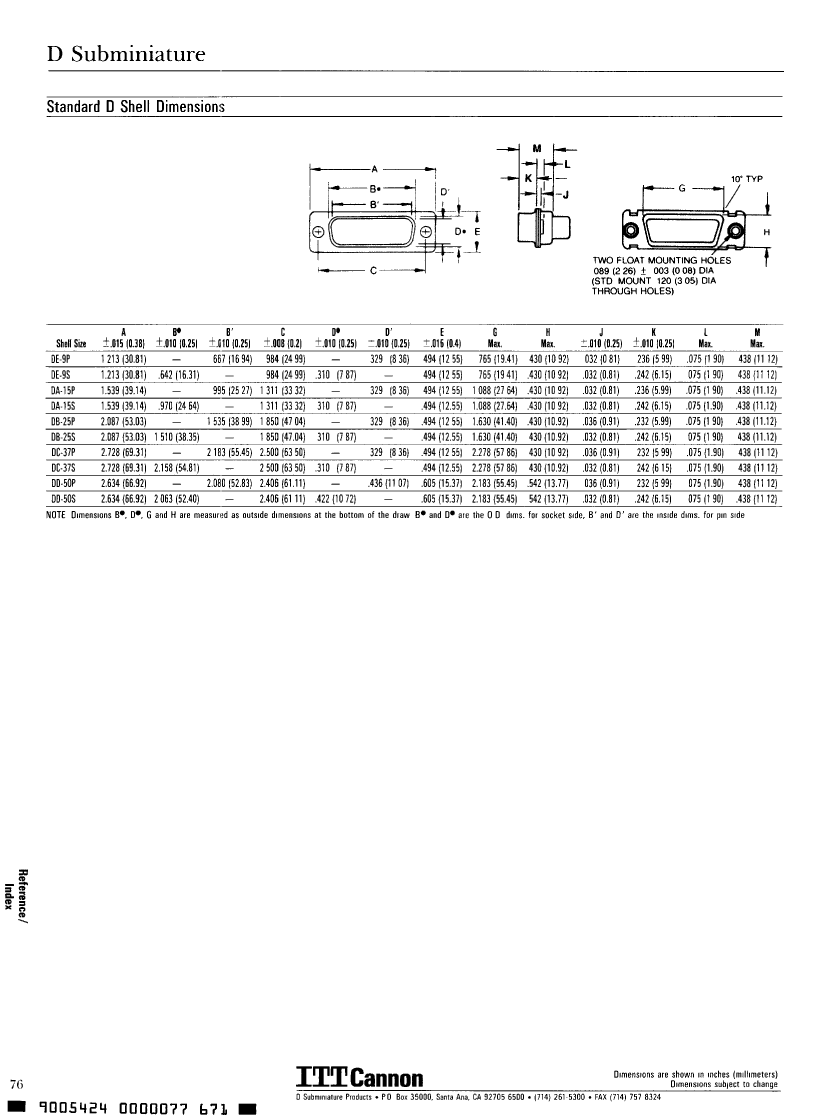

body width	0.494 inch
subject depth	0.43 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Contactor design	STRIP OR LOOSE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	YELLOW CHROMATE
Shell material	STEEL
Termination type	CRIMP
Total number of contacts	25
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG
