CDRH3D14EHPNP-6R8PB

Description
General Purpose Inductor, 6.8uH, 25%, 1 Element, Ferrite-Core, SMD, 1616, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT
CategoryPassive components    inductor
File Size126KB，2 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

CDRH3D14EHPNP-6R8PB Overview

General Purpose Inductor, 6.8uH, 25%, 1 Element, Ferrite-Core, SMD, 1616, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT

CDRH3D14EHPNP-6R8PB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
package instruction1616
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes1616
structureMagnetically Shielded
core materialFerrite
DC Resistance0.29 Ω
Nominal inductance(L)6.8 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCDRH
Number of functions1
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package height1.35 mm
Package length3.8 mm
Package formSMT
Package width3.8 mm
method of packingBox
Maximum rated current0.84 A
seriesCDRH3D14/EHP
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance25%
Base Number Matches1

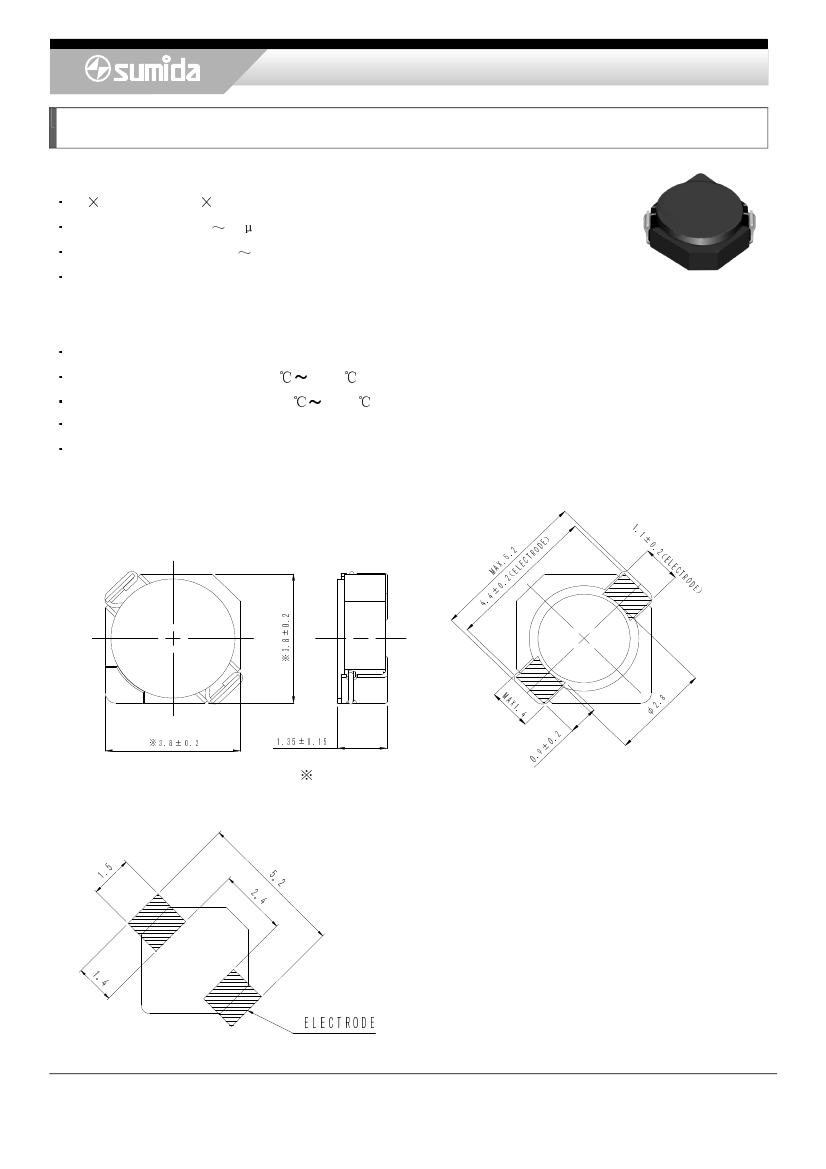

Preview

Download Datasheet
Power Inductors <SMD Type: CDRH Series>
Type: CDRH3D14/EHP
◆
Product Description
4.0 4.0mm Max.(L W), 1.5mm Max. height.
Inductance range:
1.0 22 H.
Rated current range:
0.48 1.92A.
Custom design is available.
◆
Feature
Magnetically shielded construction.
Operating temperature range: -40
+105 (Including coil’s self temperature rise).
Ideally used in Mobile phone,PDA,MP3,HDD,DSC/DVC,etc as DC-DC converter inductors.
