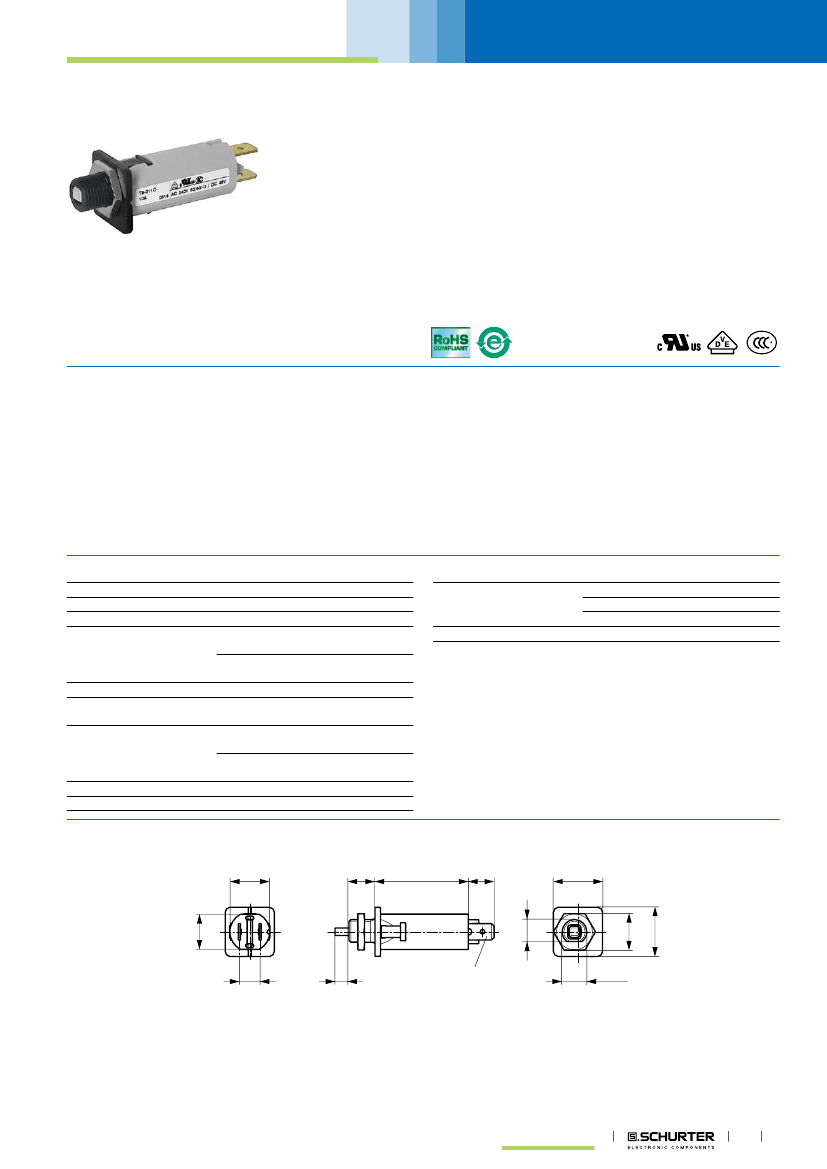

Circuit Breaker for Equipment thermal, Threaded-neck type, 1 pole
T9-311
T9-311: Threaded neck type with nut nickel-
plated
Description
-
-
-
-
-
-
-
-
-
-
Threaded neck type,
Thermal circuit breaker,
1-pole
Reset type
Cycling trip-free release
Quick connect terminal 6.3 x 0.8 mm
IEC 60934
UL 1077
CSA C22.2 235
GB 17701
Applications
-
-
-
-
-
-
-
Standards
Designed for standard and medical applications
Power supplies
Uninterruptible power supply
Power tools
Industrial appliances
HVAC
Household appliances
Weblinks
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product, Product News
Technical Data
Rated Voltage AC
Rated Voltage DC
Rated current
Conditional short circuit ca-
pacity
␣
240 V, 50 / 60 Hz
48 / 32 V, see approvals
3-16 A, see approbations
IEC: Inc, PC1, AC 240V: 2kA
Ambient temperature
␣
␣
Weight
3 A: -5 °C to 60 °C
4 A: -5°C to 50 °C
5-16 A: -5 °C to 60 °C
9 - 13 g
UL / CSA: SC, AC 240 V DC 48 / 32 V:
2 kA, C1
Degree of protection front side IP 40
Endurance minimum
IEC: 200% Ir, cos
φ
0.6: min. 50 swit-
ching cycles
Endurance typical
3-8 A: 150% Ir, cos
φ
0.9:
2500 switching cycles
␣
10-16 A: 150% Ir, cos
φ
0.9:
6000 switching cycles
Dielectric Strength
1500 VAC
Insulation resistance
500 VDC > 1000 MΩ
Dimension
T9-211/311
ø 15.4
±0.2
10.4
36.1
10
19
13.6
±0.2
SW14
3/8" -27UNS
8.6
8
5
6.3x0.8
Pannel thickness s = 0.8 - 5.5 mm
Circuit Breakers
19
1
T9-311
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
9.6
8.90
+0.10
0.00
Hexagonal nut TZZ12 / TZZ51
Cover TZZ31für IP65 optional, see accessory
SW 14
9.6
3/8" -27UNS
2.5
13.6
Approvals
Approval
UL 1077
Rated current
3 - 12 A
14 - 16 A
3 - 12 A
14 - 16 A
3 - 12 A
14 - 16 A
3 - 12 A
14 - 16 A
Rated voltage AC
240 V
240 V
240 V
240 V
240 V
240 V
240 V
240 V
Rated voltage DC
48 V
32 V
48 V
32 V
48 V
32 V
48 V
32 V
CSA 22.2 235
IEC 60934
GB 17701
Typical internal resistance
Rated Current [A]
3
4
5
6
7
8
10
12
14
15
16
Internal Resistance [mΩ]
65.0
21.6
23.6
16.3
15.3
12.9
7.3
7.0
4.8
4.3
3.9
2
Circuit Breakers
17
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
T9-311

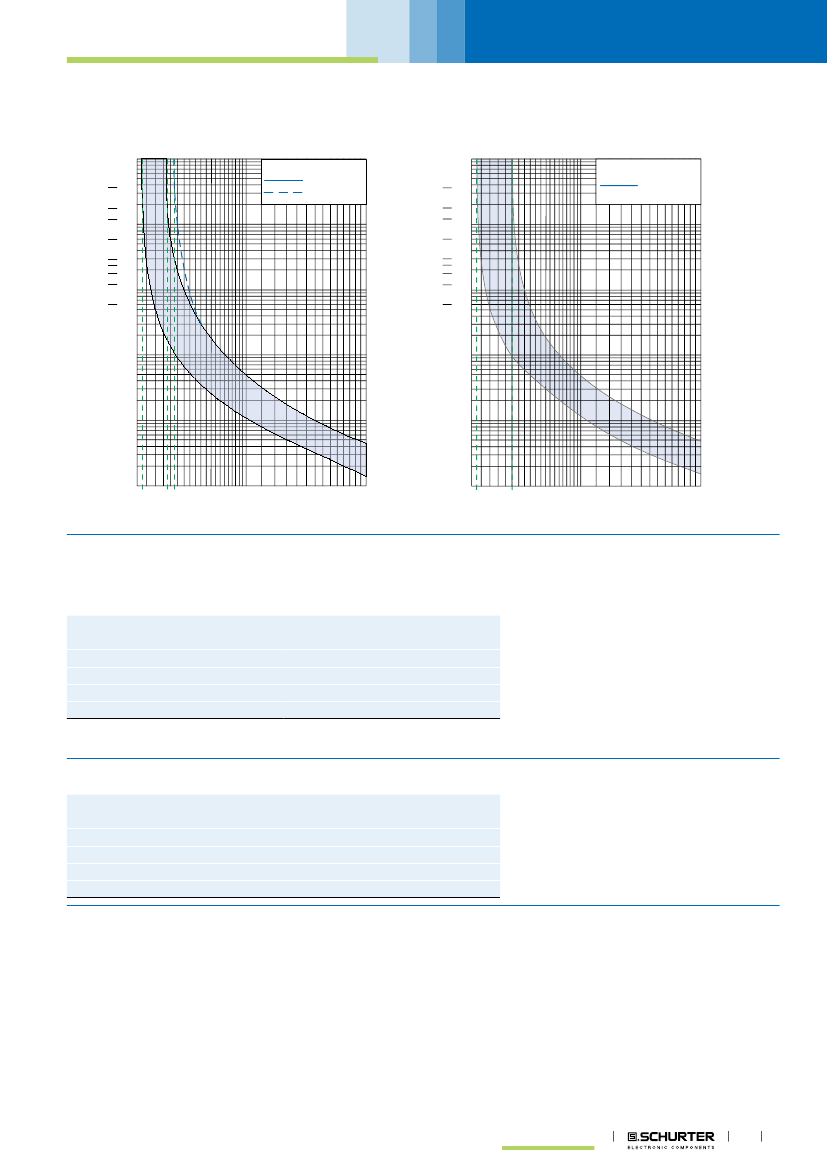

Time-Current-Curves
[min]
[sec]
10'000
[min]
[sec]
10'000
T9
60
30
20
10
5
3
1'000
T9
5 A -16 A (TC-1)
4A
(TC-2)
60
30
20
10
5
3
1'000
3 A
(TC-2)
Time in Seconds
1
Time in Seconds
100
100
1
10
10
1
1
1.05
1.05
1.35
1.45
Multiple of Rated Current In
Reference Temperature +23°
Multiple of Rated Current In
Reference Temperature +23°
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient temperature [°C]
-5
+10
+23
+40
+60
Correction factor
0,85
0,95
1,00
1,08
1,21
Example: Rated current = 10 A; Environmental temperature = 60 °C; --> Correction factor
= 1.21; Resulting current = 12.1 A --> Fount to next higher rated current: 13 A
Accessory
Part Number
4404.0039
4400.0420
4400.0559
4400.0425
4404.0072
Type
TZZ31
TZZ11
TZZ11-414
TZZ12
TZZ51
Resources / Description
Protection cover for IP 65
Knurled nut nickel-plated
Knurled nut black
Additional hexagonal nut nickel-plated
Additional hexagonal nut PA 66
Circuit Breakers
1.5
0.1
1
2
3
4
5
6
7
8
10
0.1
1
2
3
4
5
6
7
8
10
3
T9-311
All Variants
Mounting
Front printing
Rated current
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
Order Number
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
Threaded-neck type
█
Most Popular.
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
3.0 A
4.0 A
5.0 A
6.0 A
7.0 A
8.0 A
10.0 A
12.0 A
14.0 A
15.0 A
16.0 A
4404.0049
4404.0019
4404.0025
4404.0020
4404.0027
4404.0021
4404.0022
4404.0023
4404.0026
4404.0028
4404.0024
█
█
█
█
█
█
█
█
█
█
█
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging Unit
100 Pcs
4
Circuit Breakers
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
12.09.2014
