contact design insures long term reliability. Various styling options
allow design flexibility.
Typical applications include power supplies, medical equipment,
and telecommunications equipment. In addition, these breakers
meet CSA Standard 22.2 No. 100 for the Generator & Welder
markets.
Agency Certifications
UL Recognized
UL Standard 1077
CSA Accepted
Component Recognition Program as
Protectors, Supplementary (Guide
CCN/QVNU2, File E75596)
VDE Certified
Communications Equipment (Guide
CCN/DITT, File E189195)
TUV Certified
Component Supplementary
Protector under Class 3215 30,
File 047848 0 000
CSA Standard C22.2 No. 235
EN60934, VDE 0642 under File
10537
EN60934, under License No.
R9671109
UL Listed
UL Standard 489A
Electrical

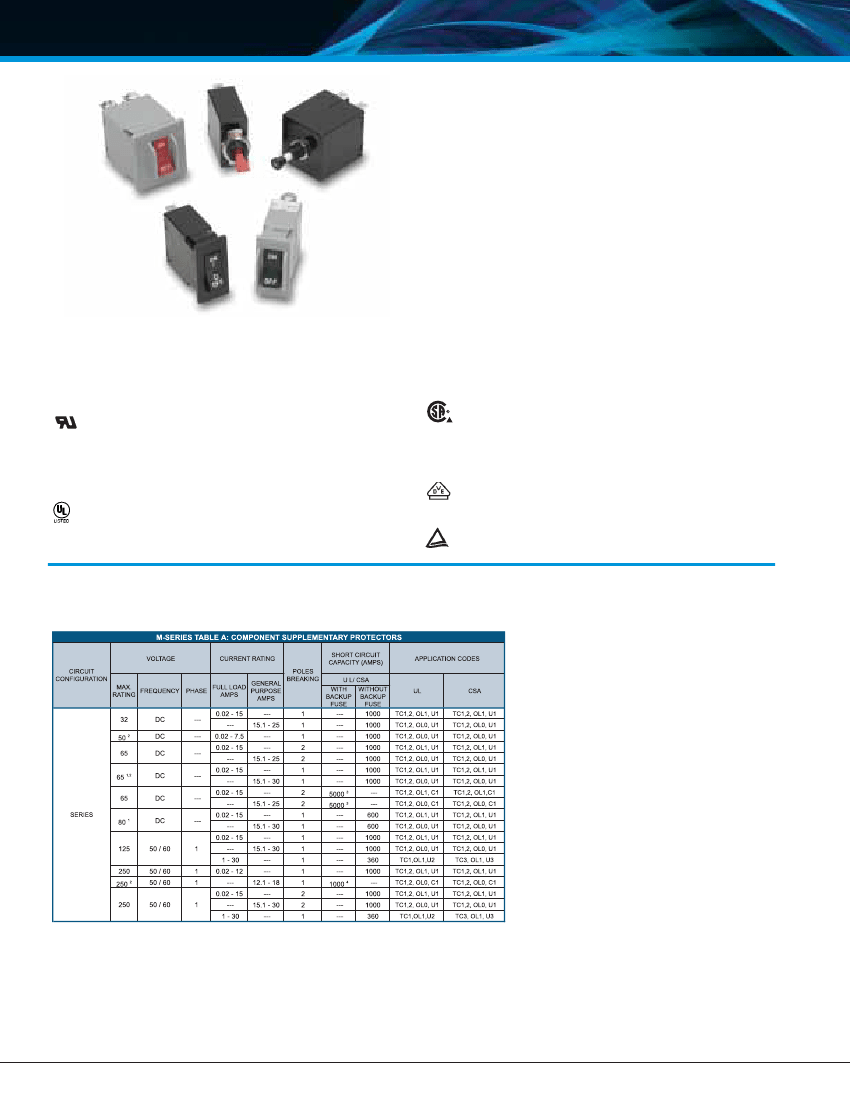

Table A:
Lists UL Recognized and CSA Accepted configurations & performance capabilities as a Component Supplementary Protector
.
NOTES FOR TABLE A
1
Polarity Sensitive
2
Available only with Special Catalog Number. Consult Factory.
3
Requires Branch Circuit Backup with a UL Listed type K-5 or RK-5 fuse rated 30 Amps maximum
4
Requires Branch Circuit Backup with a UL Listed type K-5 or RK-5 fuse rated 60 Amps maximum
18
www.carlingtech.com
M-Series General Specifications
Electrical

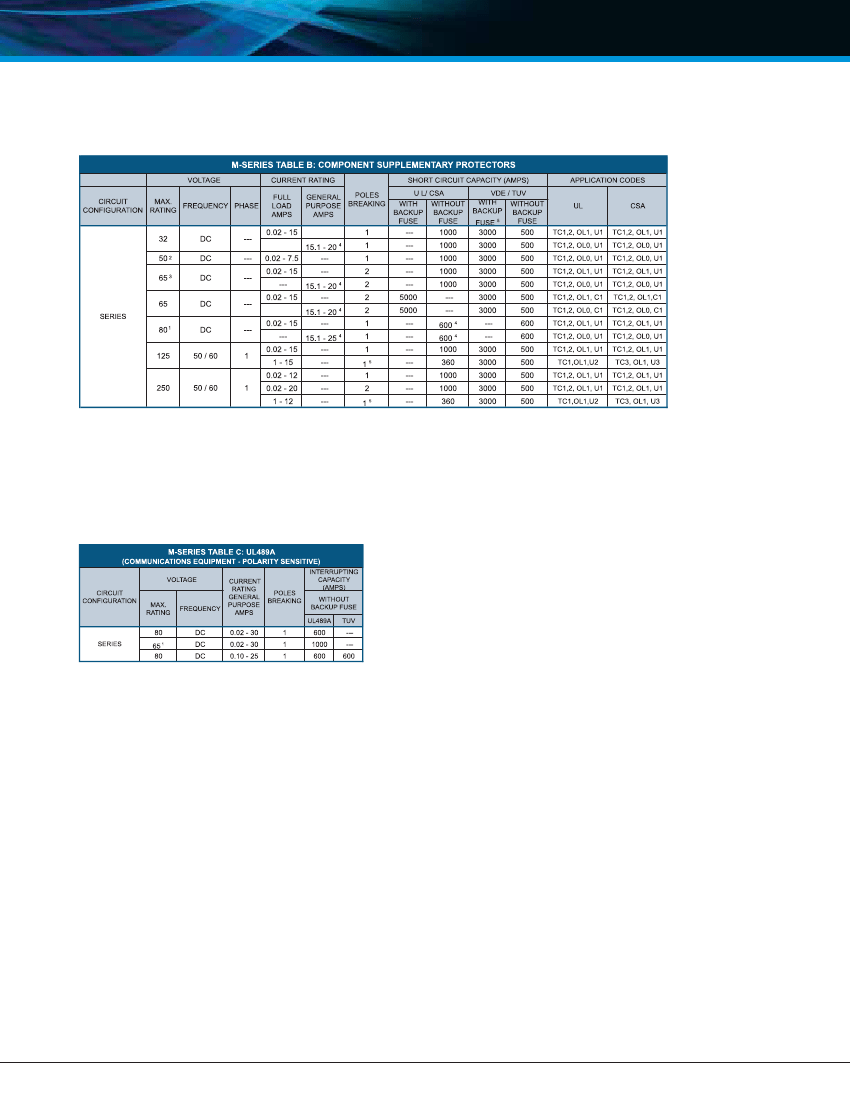

Table B:
Lists UL Recognized,CSA Accepted and TUV and VDE Certified configurations and performance capabilities as a
Component Supplementary Protector.
NOTES FOR TABLE B
1
Polarity Sensitive
2
Available only with Special Catalog Number. Consult Factory.
3
Requires Branch Circuit Backup with a UL Listed type K-5 or RK-5 fuse rated 30 Amps maximum
4
TUV only, not VDE
5
Requires backup protection with a thermal magnetic circuit breaker rated 32 amps and having a Type C trip characteristic per EN60898/DIN VDE 0641 (C32A) for ratings greater than 15 amps,
and a thermal magnetic circuit breaker rated 16 amps and having a Type C trip characteristic per EN60898/DIN VDE 0641 (C16A) for ratings 15 amps and less.
Table C:
Lists UL489A Listed and TUV Certified configurations and performance capabilities for use in Communications
Equipment.
NOTES FOR TABLE C
1. Available only with Special Caralog Number
www.carlingtech.com
19
M-Series General Specifications
Electrical
Maximum Voltage
Current Ratings
125/250 VAC 50/60 Hz, 80 VDC
(See Rating Tables.)
Standard current coils: 0.100, 0.250,
0.500, 0.750, 1.00 thru 15.0 in 1
amp increments, 18.0,
20.0, 25.0, 30.0. Other ratings avail-
able - see Ordering Scheme.
SPDT; 7A 250VAC, 7A (Res)
28VDC, 4A (Ind.) 28VDC, 0.25A
80VDC (Res) (silver contacts), 0.1A
125VAC (gold contacts).
Minimum of 100 Megohms at 500
VDC.
UL, CSA 1500V, 50/60 Hz for one
minute between all electrically isolat-
ed terminals. M-Series Circuit
Breakers comply with the 8mm
spacing and 3750 V 50/60Hz dielec-
tric requirements from hazardous
voltage to operator accessible sur-
faces, per Publications IEC 380,
435, 950, EN 60950 and VDE 0805.
Values from Line to Load Terminal -
based on Series Trip Circuit Breaker.
Mechanical
Endurance
10,000 ON-OFF operations @ 6 per
minute with rated Current and
Voltage.
All M-Series Circuit Breakers will trip
on overload, even when actuator is
forcibly held in the ON position.
The actuator moves positively to the
OFF position when an overload
causes the circuit breaker to trip.
Trip Free
Trip Indication
Auxiliary Switch Rating
Physical
Number of Poles
1 or 2
Internal Circuit Configurations Series with or without Auxiliary
Switch.
Switch Only with or without Auxiliary
Switch.
Weight
Approximately 30 grams/pole
(Approximately 1.07 ounces/pole)
Standard Colors
See Ordering Scheme.
Insulation Resistance
Dielectric Strength
Resistance, Impedance
Environmental
Designed and tested in accordance with requirements of specifi-
cation MIL-PRF-55629 & MIL-STD-202 as follows:
Shock
Withstands 100 Gs, 6ms, sawtooth
while carrying rated current per
Method 213, Cond. I. Instantaneous
curves tested at 80% of rated current.
Vibration
Withstands 0.060" excursion from 10-
55 Hz, and 10 Gs 55-500 Hz, at rated
current per Method 204C, Test
Condition A. Instantaneous curves
tested at 80% of rated current.
Moisture Resistance
Method 106D, i.e., ten 24-hour
cycles @ + 25°C to +65°C, 80-98% RH.
Salt Spray
Method 101, Condition A (90-95%
RH @ 5% NaCl Solution, 96 hrs).
Thermal Shock
Method 107D, Condition A (Five
cycles @ -55°C to +25°C to +85°C
to +25°C).
Operating Temperature
-40° C to +85° C
Chemical Resistance
Only the outside surfaces of the case
and the handles may be cleaned with
detergents or alcohol. Organic (hydro-
carbon based) solvents are not rec-
ommended because they attack plas-
tics. Caution should be taken when
solvents are used to clean and
remove flux from terminals. Lubricants
should not be introduced into the han-
dle/bushing openings.

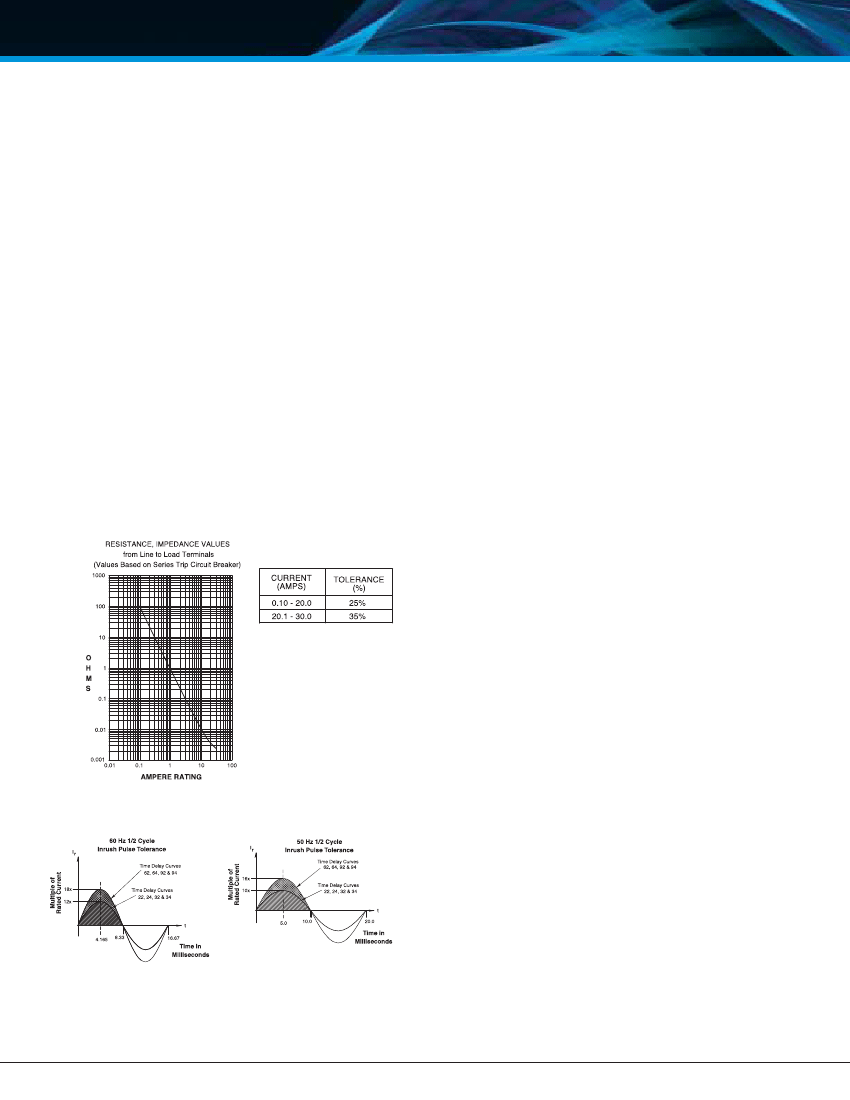

Pulse Tolerance Curves
20
www.carlingtech.com

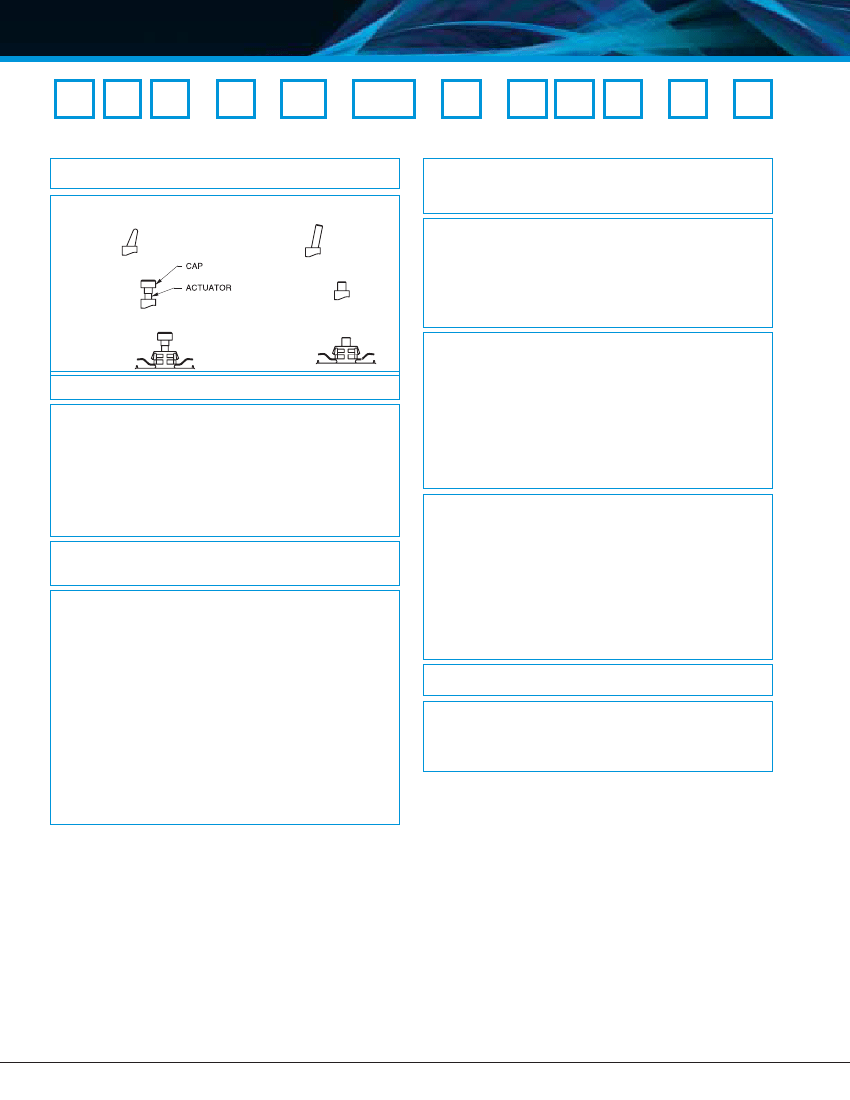

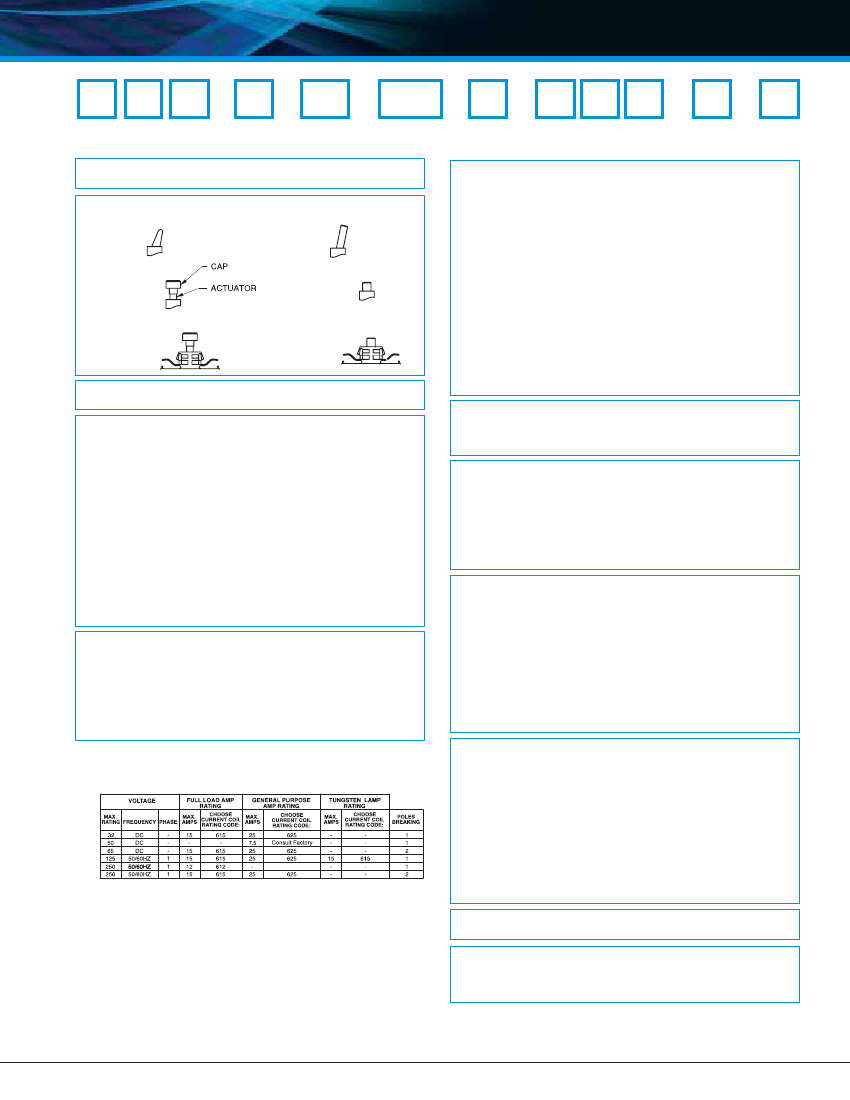

M-Series Handle/Pushbutton UL Recognized - Ordering Scheme
M M 1 – B – 34 – 260 – 1 – 1 B B – B – C
1
Series
2
Actuator
3
Poles
4
Circuit
5
Frequency
& Delay
6
Current Rating
7
Terminal
8
Actuator
Color
10
9
Front Panel Legend
Hardware Plate
11
Bushing
Color
12
Agency
Approval
1 SERIES
M
2 ACTUATOR
1
Handle
M
Paddle
N
Baton
Push Button
T
Push-Pull
U
Push To Reset
Push Button w/ Snap-In Mounting
V
Push-Pull
W
Push To Reset
6 CURRENT RATING (AMPERES)
8
020
0.020
225
0.250
025
0.025
230
0.300
030
0.030
235
0.350
035
0.035
240
0.400
040
0.040
245
0.450
045
0.045
250
0.500
050
0.050
255
0.550
055
0.055
260
0.600
060
0.060
265
0.650
065
0.065
270
0.700
070
0.070
275
0.750
075
0.075
280
0.800
080
0.080
285
0.850
085
0.085
290
0.900
090
0.090
295
0.950
095
0.095
410
1.000
210
0.100
512
1.250
215
0.150
415
1.500
220
0.200
517
1.750
7 TERMINAL
8
1
Push-On 0.250 Tab (Q.C.)
Screw 8-32 w/upturned lugs
2
10
Screw 8-32 (Bus Type)
3
10
8 ACTUATOR COLOR
5
Handle
Push-Button
1
A
2
B
3
C
4
D
5
E
6
F
8
H
9 FRONT PANEL HARDWARE
6
Handle
No outer Panel Hardware
A
Knurled Nut
Bright nickel
B
Bright nickel w/ locking ring
C
Black
D
Black w/ locking ring
E
Panel Dress Nut
Bright nickel
F
Bright nickel w/ locking ring
G
Black
H
Black w/ locking ring
J
420
522
425
527
430
435
440
445
450
455
460
465
470
475
480
485
490
495
610
2.000
2.250
2.500
2.750
3.000
3.500
4.000
4.500
5.000
5.500
6.000
6.500
7.000
7.500
8.000
8.500
9.000
9.500
10.000
710
611
711
612
712
613
614
615
616
617
717
618
619
620
622
624
625
630
9
10.500
11.000
11.500
12.000
12.500
13.000
14.000
15.000
16.000
17.000
17.500
18.000
19.000
20.000
22.000
24.000
25.000
30.000
3 POLES
1
One
2
Two
A
11
P
12
Push-In Stud
Printed Circuit Board
4 CIRCUIT
2
without Auxiliary Switch
A
Switch Only (No Coil), Maintained Contacts
B
Series Trip (Current)
with Auxiliary Switch, Silver Contacts
Terminal Type:
P
3
Switch Only, Maintained Contacts
.060 Dia, Round Solder Turret
Q
3, 4
Switch Only, Maintained Contacts
.058 Dia, Round Q.C.
R
3, 13
Switch Only, Maintained Contacts
.080 Dia x .020 Flat Q.C.
S
3
Series Trip (Current)
.060 Dia, Round Solder Turret
3, 4
T
Series Trip (Current)
.058 Dia, Round Q.C.
U
3, 13
Series Trip, Maintained Contacts
.080 Dia x .020 Flat Q.C.
with Auxiliary Switch, Gold Contacts
2
3, 4
Switch Only, Maintained Contacts
.058 Dia, Round Q.C.
3
3, 13
Switch Only, Maintained Contacts
.080 Dia x .020 Flat Q.C.
4
3,4
Series Trip (Current)
.058 Dia, Round Q.C.
5
3, 13
Series Trip, Maintained Contacts
.080 Dia x .020 Flat Q.C.
5 FREQUENCY & DELAY
03
DC 50/60Hz, Switch Only
10
DC Instantaneous
12
DC Short
14
DC Medium
20
50/60Hz Instantaneous
22
50/60Hz Short
24
50/60Hz Medium
30
DC, 50/60Hz Instantaneous
32
34
62
64
72
74
92
94
DC, 50/60Hz Short
DC, 50/60Hz Medium
50/60Hz Short, Hi-Inrush
50/60Hz Medium, Hi-Inrush
DC, Short,Hi-Inrush
DC, Medium, Hi-Inrush
DC, 50/60Hz Short, Hi-Inrush
DC, 50/60Hz, Medium, Hi-Inrush
Actuator Color
White
Black
Red
Green
Blue
Yellow
Orange
Push-Button
1
2
Notes:
1
One actuator is located in the center of each multi-pole breaker. Actuator codes V & W
limited to single pole breakers only.
2
Switch Only circuits are not available with Push-To-Reset actuators.
For Switch Only circuits, select Current Coil Rating from the following chart:
3
4
5
6
7
8
9
10
11
12
13
One Auxiliary Switch is supplied per breaker. On two-pole breakers, standard Auxiliary
Switch mounting is in pole one. Auxiliary Switch option limited to Series Trip and Switch
Only circuits. Not available with back connect screw or push-in stud terminals.
Mates with AMP .058" diameter pin receptacles including 60983-1 (gold plated) and 60983-
2 (tin plated).
Actuator color is only visible in the OFF position on Push-Pull actuators.
All units except snap-in mounting have one hex nut installed on bushing for use behind the
panel.
Other colors available. Consult factory.
TUV and VDE Certification above 15 amps is for 2-pole only and is limited to a max. of 25
amps. Screw Terminal or Push-In Stud recommended above 20 amps.
30 amp rating not available with delay’s 30, 32, 34, 92 or 94.
Screw Terminals are VDE certified only with use of ring terminal attached to wire.
Terminal code A available with circuit codes A & B only.
Printed circuit board available with UL recognized approval only.
Auxiliary switch (flat Q.C.) available with UL recognized approvals only.
10 LEGEND PLATE / BUTTON MARKING
Handle Actuator Legend Plate (Actuator Styles M & N)
A
No Legend Plate
B
ON - OFF Vertical
C
ON - OFF Horizontal
D
I - O Vertical
E
I - O Horizontal
Push-Pull Actuator Button Cap (Actuator Styles T & V)
Are any of the electronic components, resistors, capacitors, inductors, transformers, magnetic components, resonators, oscillators, filters, electroacoustic devices, connectors, switches, relays, micr...
Now I will briefly introduce the serial port of SAM4E16E. In the SAM4E16E MCU, there are 4 serial ports, two UARTs and two USARTs. As shown below: 185757 This time I will use the UART1 module on the b...
[i=s]This post was last edited by plunify on 2016-6-23 11:13[/i] [align=left][font=宋体] [/font][/align][align=left][font=宋体]Oh[/font]! The ink on the Vivado 2016.1[font=宋体] blog post is barely dry and ...
Hello everyone! I recently made a pyroelectric human body sensing circuit. Why is the first sensing output response time slow when powered on, but there is no problem with subsequent sensing, which is...
Motor Talent Network is the only professional talent website in China that focuses on motor-related [size=4][color=magenta] corporate recruitment[/color][/size] and [size=4][color=magenta] personal jo...
In the enet_io routine, you can control the peripherals on the development board through the web page. I used the makefsfile software to successfully convert the web page file into a .h file, but I do...
The TIA Portal software's shift instructions shift the contents of an accumulator bit by bit to the left or right. The number of bits shifted is determined by N. A left shift of N bits multiplies t...[Details]
On August 24th, Jin Yuzhi, CEO of Huawei's Intelligent Automotive Solutions BU, announced the first automotive application of Huawei Qiankun's unique Limera technology. This technology eliminates t...[Details]
On August 25th, Apple's expansion in India encountered new troubles. According to Bloomberg, Foxconn Technology Group has recalled approximately 300 Chinese engineers from India, further hindering ...[Details]
1. Introduction
Electronic scales are gradually replacing traditional measuring tools like springs and balances in everyday life, such as electronic price computing scales and electronic weigh...[Details]
introduction
Sonar imaging is of great significance in marine resource development and defense. Its long range, intuitive display of the observed area, and target identification make it widely...[Details]
Coal mines typically contain gas and coal dust. When gas and coal dust reach a certain concentration, they can cause explosions. Electrical equipment generates arcs during normal operation or durin...[Details]
According to Nikkei, Japan has performed poorly in responding to China's power semiconductor challenges.
There are five major companies in Japan's power chip market: Mitsubishi Electric,...[Details]
Bosch has released a new SoC series to support L2+ advanced driver assistance functions. The chip integrates high resolution and long-range detection capabilities, and has built-in support for neur...[Details]
Batteries, at the core of new energy vehicles, are crucial to vehicle performance and range. Existing automotive batteries are categorized into lead-acid and lithium batteries. Currently, new energ...[Details]
Civilian internal combustion engines operate in the range of approximately 1000-4000 rpm. This results in the engine's kinetic energy being ineffective at low or high rpm, making starting difficult...[Details]
With the prevalence of online conferencing, live streaming, and voice communication in gaming, high-quality audio input devices are becoming increasingly important. To this end, XMOS, an expert in ...[Details]
introduction
The rapid development of science and technology has enabled mankind to quickly move from the Internet era to the big data era. As a result, the amount of data generated by people ...[Details]
Since the beginning of the 21st century, with the rapid development of my country's urban and rural economies and the improvement of people's living standards, more and more people have begun to ow...[Details]
Silicon Labs (also known as "Silicon Labs"), an innovative leader in low-power wireless connectivity, will showcase its cutting-edge artificial intelligence (AI) and Internet of Things (IoT) solu...[Details]
A new multi-layer diffractive optical processor can block images in one direction while allowing images in another direction to pass through.
Researchers at the University of California,...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
