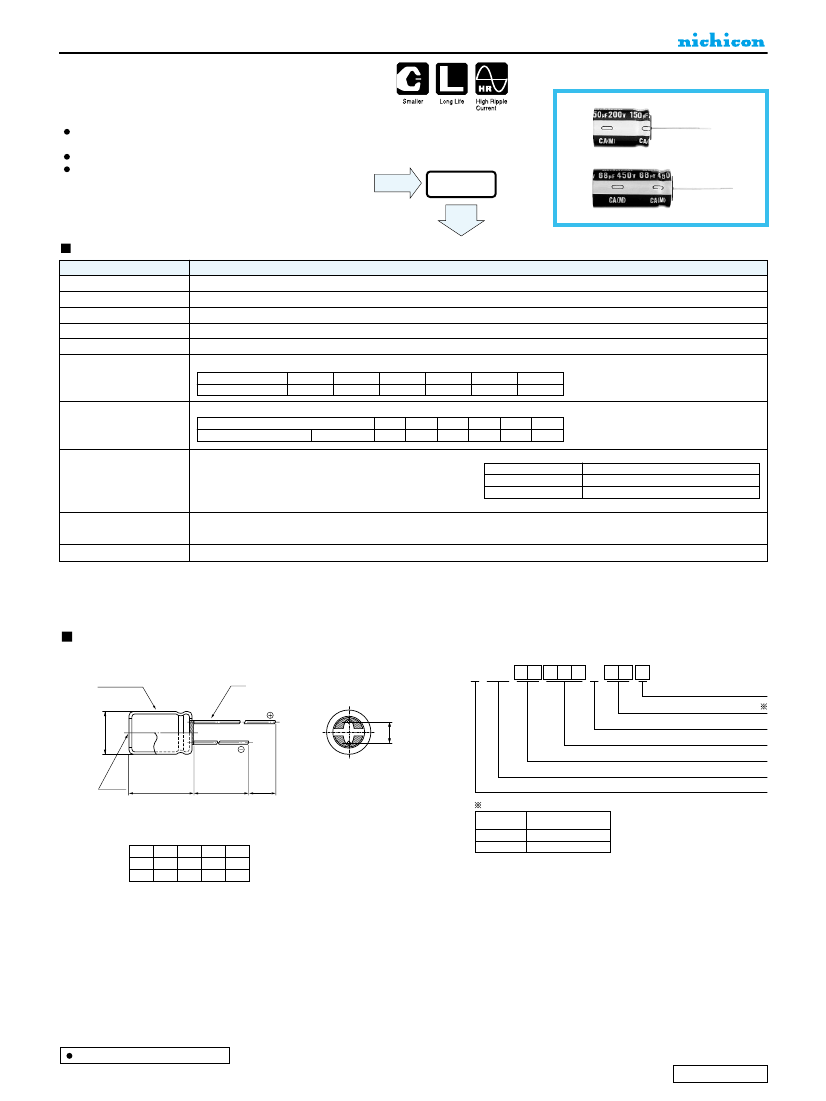

ALUMINUM ELECTROLYTIC CAPACITORS
CA
Miniature Sized, High Ripple Current, Long Life
series
High ripple current and Long Life product withstanding load
life of 12000 hours(10000 hours for
φD=10)
at +105°C.
Suited for ballast application.
Compliant to the RoHS directive (2002/95/EC).
PB
Long Life
CA
Smaller
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
CS
Performance Characteristics
– 25 to +105°C
160 to 450V
6.8 to 220µF
± 20% at 120Hz, 20°C
After 1 minute's application of rated voltage, leakage current is not more than 0.04CV+100 (µA)
Measurement frequency : 120Hz,
Rated voltage (V)
tan
δ
(MAX.)
Temperature : 20°C
160
0.15
200
0.15
250
0.15
350
0.20
400
0.20
450
0.20
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Impedance ratio ZT / Z20 (MAX.) Z–25°C / Z+20°C
160
3
200
3
250
3
350
6
400
6
450
6
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 12000 hours (10000 hours for
φD=10)
at 105°C, the peak voltage shall not exceed the rated
voltage.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C
5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
Radial Lead Type
Type numbering system (Example : 250V 100µF)
1
2
3
4
5
6
7
8
9
10 11
12
Sleeve (P.E.T.)
φd
U CA 2 E 1 0 1 M HD
T
Size code
Configuration
φD
+
0.5MAX.
P
±
0.5
Capacitance tolerance (±20%)
Rated capacitance (100µF)
Rated voltage (250V)
Series name
Pressure
relief vent
L +
1.5MAX.
15
MIN
4
MIN
Type
Configuration
φ
D
Pb-free leadwire
Pb-free PET sleeve
(mm)
10
12.5 to 18
PD
HD
φD
P
φd
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
•
Please refer to page 20 about the end seal configulation.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
CAT.8100Z
