SFSS-02-30-G-03.00-S

Description
Board Connector, 2 Contact(s), 1 Row(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size337KB，3 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

SFSS-02-30-G-03.00-S Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Black Insulator

SFSS-02-30-G-03.00-S Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid311544547
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
YTEOL8
body width0.2 inch
subject depth0.44 inch
body length0.121 inch
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER
Plug contact pitch0.05 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature80 °C
Minimum operating temperature-10 °C
Plating thickness10u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)2.9 A
GuidelineUL
Termination typeCRIMP
Total number of contacts2
Maximum wire diameter30 AWG
Minimum wire diameter30 AWG

SFSS-02-30-G-03.00-S Preview

REVISION W
DO NOT
SCALE FROM
THIS PRINT
.200 5.08
REF
(No OF POS x .050[1.27]) + .021[0.53] REF
01
.070 1.78 REF .095 2.41 REF
.080 2.03 REF
-S: SINGLE END
(SFSSX-07-28-X-XX.XX-S SHOWN)
ISDF-XX-S
FIG 1
FEP CABLE OPTION
-T: FEP INSULATION
LEAVE BLANK FOR STANDARD
PVC INSULATION
(SEE NOTE 11)
No OF POSITIONS
-02 THRU -50
WIRE GAUGE (AWG)
-28
-30
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
"A"
.050 1.27 REF
C
.440 11.18
REF
.249 6.32
REF
COLOR CODE:
LEAVE BLANK FOR ALL BLACK WIRE
C: COLOR CODED WIRE, SEE TABLE
2, SHT 3 (SEE NOTE 10)
PLATING SPECIFICATION
(VALUES GIVEN ARE IN MICRO INCHES)
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-G: GOLD, 10 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, 3 AU / 50 NI MIN ON TAIL
-GF: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, 3 AU / 50 NI MIN ON TAIL
**
(SEE TABLE 2, SHEET 3)
**: -GF ONLY AVAILABLE TO
EXISTING CUSTOMERS
SEE -F PLATING
-NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D, -DR)
-NUS: NOTCH UP, STRAIGHT
(PIN 1 TO PIN 7)
-NDS: NOTCH DOWN, STRAIGHT
(PIN 1 TO PIN 1)
END OPTION
(END OPTION COMBINATIONS NOT AVAILABLE)
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE FROM -NXX OPTIONS)
-SR: SINGLE ENDED WITH RETENTION LATCH
(SEE SHEET 3, FIG 3)
(ONLY AVAILABLE ON -02 THRU -50 POS)
-DR: DOUBLE ENDED WITH RETENTION LATCH
(SEE SHEET 3, FIG 4)
(ONLY AVAILABLE ON -02 THRU -50 POS)
(MUST CHOOSE FROM -NXX OPTIONS)
ASSEMBLED LENGTH
SPECIFY IN INCHES
(SINGLE END: 03.00 INCH [76.2mm]
MINIMUM,
DOUBLE END: 03.25 INCH [82.6mm]
MINIMUM)
"A"
SECTION "A"-"A"
C
XX.XX
(SEE NOTE 8)
C
XX.XX
(SEE NOTE 8)
DWCX-XX-XX-300
(SEE TABLE 1)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 3.0 LBS [13.3 N].
3. CONTACT MUST BE INSERTED UNTIL
RETENTION FEATURE LOCKS INTO PLACE.
C
4. ALL FINISHED GOODS ARE TO BE ELECTICAL TESTED INCLUDING
HI-POT TEST AT 1000 VOLTS DC. AFTER FINAL ELECTICAL TEST,
LABEL EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. PARTS TO BE LAYER PACKAGED.
7. END OF DISCRETE WIRE MUST BE IN THE RANGE AFTER CRIMP.
8. FOR LENGTHS LESS THAN 12 in, TOLERANCE SHALL BE +/-.125.
FOR OTHER LENGTHS, TOLERANCE SHALL BE +/-2%.
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING, AND ITS REQUIREMENTS.
10. COLOR CODED CABLE NOT AVAILABLE WITH SFSST (FEP).
11. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
-D: DOUBLE END
(SFSSX-07-28-X-XX.XX-D-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 2
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCu
CABLE INSULATION: PVC OR FEP
WIRE: DWC: TINNED COPPER, DWCT: TIN PLATED COPPER
(SEE TABLE 1)
F:\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 2:1

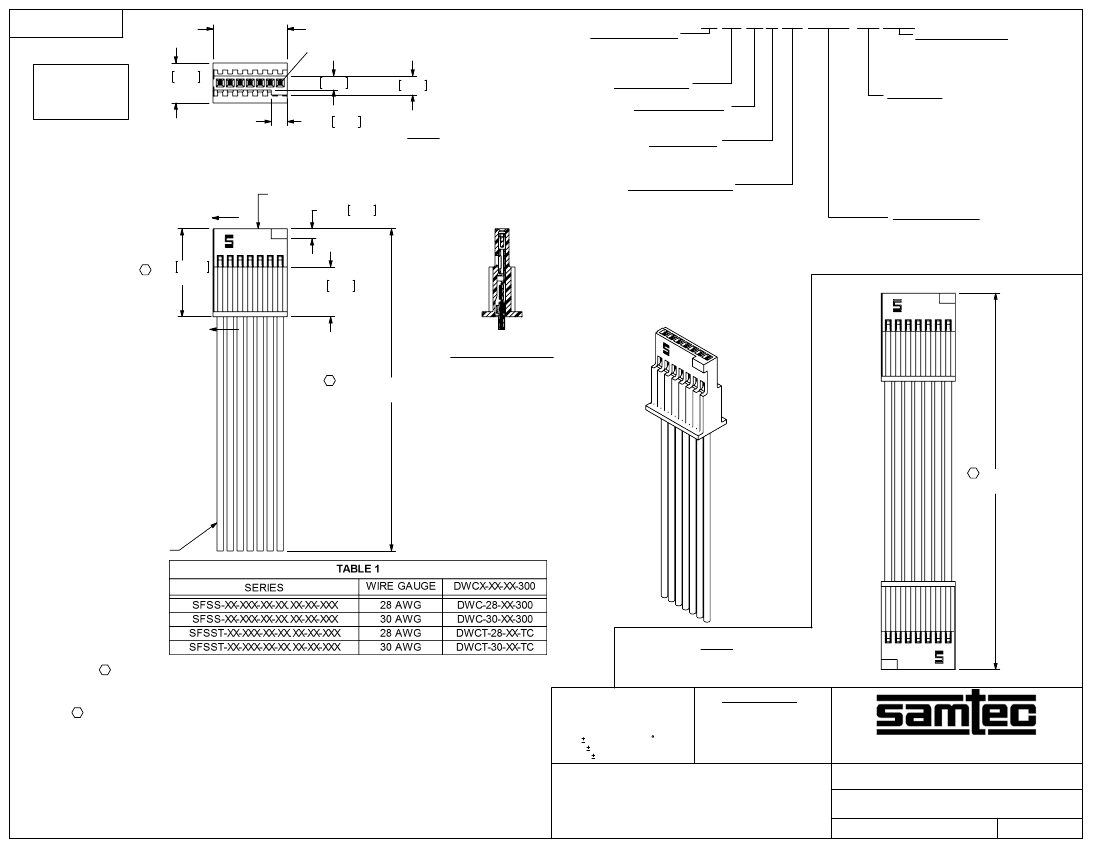

.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
6/12/2008
SHEET
1
OF
3
BY:
GAYNOR
REVISION W
01
07
07
01
NOTCH END 1
NOTCH END 2
(END 2 NOTCH UP, CABLE STRAIGHT)
(PIN 1 TO PIN 7)
-NUS
01
01
07
07
NOTCH END 1
NOTCH END 1
PROPRIETARY NOTE
(END 2 NOTCH DOWN, CABLE STRAIGHT)
(PIN 1 TO PIN 1)
-NDS
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.571429
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
BY:
GAYNOR
F:\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
6/12/2008
SHEET
2
OF
3
REVISION W

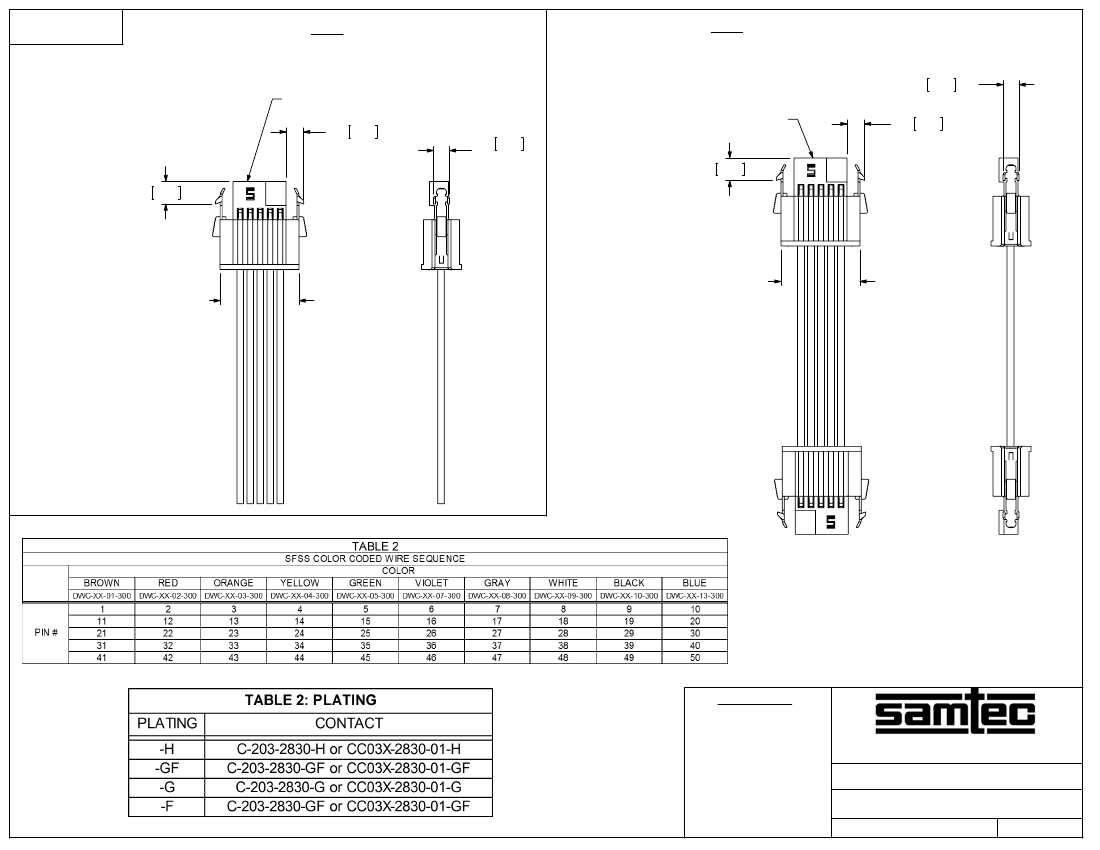

-SR: SINGLE END WITH RETENTION LATCH
(SFSSX-05-28-X-XX.XX-SR SHOWN)
(ONLY AVAILABLE ON -02 THRU -50 POS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
ISDF-XX-S-M
.088 2.23 REF
FIG 3
-DR: DOUBLE END WITH RETENTION LATCH
(SFSSX-05-28-X-XX.XX-DR SHOWN)
(ONLY AVAILABLE ON -02 THRU -50 POS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
.080 2.03 REF
ISDF-XX-S-M
.080 2.03
REF
.088 2.23 REF
FIG 4
.113 2.86 REF
.113 2.86 REF
(No OF POS x .050[1.27]) + .145[3.68]
REF
(No OF POS x .050[1.27]) + .145[3.68]
REF (TYP)
F:\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
BY:
GAYNOR
6/12/2008
SHEET
3
OF
3
