High Density Card Edge
1.00 mm [.039”] Contact Centers, PCI Express,
Card Extender for Straddle Mount
Sullins High Density

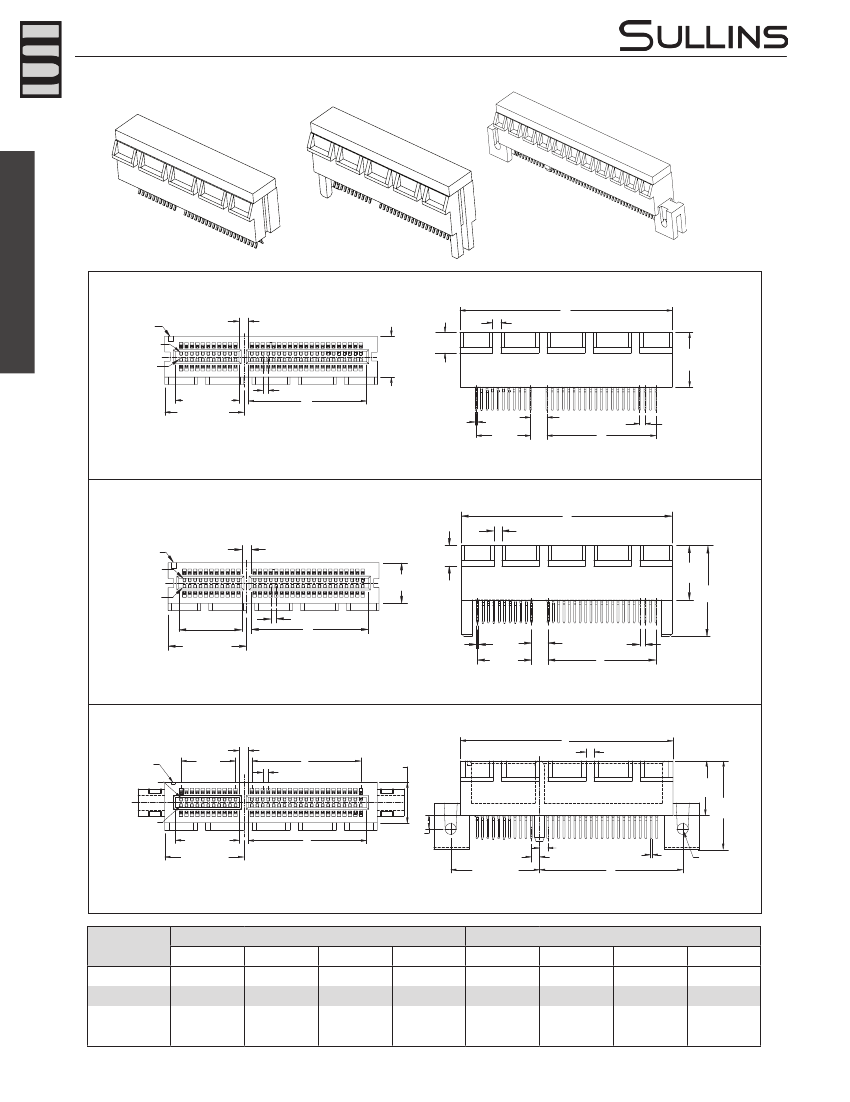

DIMENSIONS
Dimensions in [ ] are in inches, all others are in millimeters.
PIN A1
IDENTIFIER
PIN A1
PIN B1
1.00 [.039] TYP.
B
0.34 [.013]
TYP.
3.00 [.118]
10.00
[.394]
A
1.00 [.039]
1.73±0.08 [.068±.003]
7.50
[.295]
MAX.
3.75
[.148]
C
1.50 [.059] MAX.
10.25
[.404]
11.65 [.459]
14.50 [.571]
STRADDLE MOUNT without PEGS
Example Part Number: GBE18DHRN-T941
C
1.50 [.059] MAX.
PIN A1
IDENTIFIER
PIN A1
PIN B1
11.65 [.459]
14.50 [.571]
1.00 [.039] TYP.
B
0.34 [.013]
TYP.
3.00 [.118]
10.00
[.394]
A
1.00 [.039]
1.73±0.08 [.068±.003]
7.50 [.295]
MAX.
3.75
[.148]
10.25
[.404]
16.80
[.661]
STRADDLE MOUNT with PEGS
Example Part Number: GBE18DHRN-T9410
PIN A1
IDENTIFIER
PIN A1
10.00
[.394]
1.73±0.08 [.068±.003]
A
1.00 [.039] TYP.
C
7.50
[.295]
MAX.
1.50 [.059] MAX.
10.25
[.404]
16.30
[.642]
2X
2.50
[.098]
PIN B1
11.65 [.459]
14.50 [.571]
B
1.50 [.059]
0.34 [.013]
TYP.
D
1.50 [.059]
16.30 [.642]
2X Ø 2.00
[.079]
STRADDLE MOUNT with CLIPS
Example Part Number: GBE18DHRQ-T941
MILLIMETERS
A
6.00
20.00
37.00
70.00
POSITIONS/
CONTACTS
18/36
32/64
49/98
82/164
INCHES
C
D
12.30
26.30
43.30
76.30
B
7.65
21.65
38.65
71.65
A
0.236
0.787
1.457
2.756
B
0.301
0.852
1.522
2.821
C
0.984
1.535
2.205
3.504
D
0.484
1.035
1.705
3.004
25.00
39.00
56.00
89.00
14
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
High Density Card Edge
1.00 mm [.039”] Contact Centers, PCI Express,
Card Extender for Straddle Mount
PART NUMBER OPTIONS
G B E 18 D HR N -T9 4 1 0
MATERIALS (INSULATOR/CONTACT)
G
=
Nylon/Phosphor Bronze
CONTACT FINISH - RoHS Compliant
Contact Surface
B
=
.000010” Gold
C
=
.000030” Gold
W =
Gold Flash
CONTACT CENTERS
E =
1 mm [.039”]
NUMBER OF CONTACT POSITIONS
18, 32, 49, 82
READOUT
D =
Dual
MODIFICATION CODE
Omit '0' For Without Pegs ('N' or 'Q' Mounting)
0
=
Pegs
(Available in 'N' Mounting Only)
COLOR
1
=
Black
TAIL LENGTH
4
=
4.10 mm [.161”]
MOUNTING STYLE
N
=
No Mounting
Q
=
Straddle Mount with Clips
('Q' Only Available with T941 Modification)
TERMINATION TYPE
HR
=
Card Extender for Straddle Mount
Sullins High Density
All platings are Lead Free and have .000050” Nickel underplate
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
Operating & Processing Temperature: Consult Factory
SPECIFICATIONS
• All PCI Express parts meet the latest
PCI Express specifications
• Supports 2.5 GT/s, 5.0 GT/s or 8.0 GT/s
Data Transfer Rate (per pair data bandwidth)
• Accommodates 1.57 mm [.062”] PC board
• 1.1 Amp current rating per contact
• UL Flammability Rating: 94V-0
TERMINATION TYPE
3.75 [.148”]
5.10 [.201”]
3.75 [.148”] MAX.
READOUT
0.80 [.031”]
4.10 [.161”]
1.20 [.047”]
DUAL (D)
Card Extender
(HR)
MOUNTING STYLE
6.80 [.268”]
2X 1.60 [.063”]
2X 1.80 [.071”]
2X 6.50 [.256”]
WITHOUT PEGS
NO MOUNTING (N)
WITH PEGS
('N' Mounting Style with '0' Modi cation Code)
WITH CLIPS (Q)
8.60 [.339”]
2X Ø 2.00 [.079”]
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
