Materials
1.
Center contact, C5191 phosphor bronze, 2
μm
nickel
plated
2.
Insulator, PBT + 15% glass fiber, black
3.
Shell, C2700 brass, 2
μm
nickel plated
Electrical requirements
Dielectric
strength: 1 min @ 500 Vac
Insulation
resistance: 100 MΩ @ 500 Vdc
Contact
resistance: 30 mΩ or less
Rated
voltage: 20 Vdc
Rated
current: 6 A
Mechanical requirements
Insertion
force: 0.5-3 kgf
Withdrawal
force: 0.4-2 kgf
Durability:
5000 mating cycles while maintaining; 0.3-2 kgf
insertion
force, 0.2-1.5 kgf withdrawal force and a less than
100
mΩ contact resistance.
Environmental requirements
Damp
test: 40 °C, RH 90-100% for 96 hrs. Cool to ambient
and
recover for 2 hours. Maintain dielectric strength of 500
Vac
for 1 min, insulation resistance of 50 MΩ @ 500 Vdc
minimum
and a contact resistance of 100 mΩ or less.
Dry
test: 70 °C, RH 70-85% for 96 hrs. Cool to ambient and
recover
for 2 hours. Maintain insulation resistance of 50
MΩ
@ 500 Vdc minimum and a contact resistance of 100
mΩ
or less.
Salt
spray test: 35 °C, RH 90-95%, 5% NaCl mist for 24 hrs.
Wash
parts after test. Maintain mechanical requirements
and
a contact resistance of less than 80 mΩ.
Operating range
-25
to 70 °C, relative humidity of 85% or less
+0.10
4.75 - 0
5.4
3.2 ±0.20
4.7 ±0.10
1
1. 2
A
0.7
5.8 ±0.30
2.7
1.5 ±0.10
16.7 ±0.30
20 ±0.50
3.5
2
+0.10
1.7 - 0
A
3
2
1
5 ±0.30
SECTION A-A
SCALE 2 : 1
Revision:
A
A1
Date:
9/2/2009
11/9/2012
Description:
Initial release
Added test data
Prepared:
GL
2016.03.29
10:23:18
-07'00'
Digitally signed by LA
DN: cn=LA, o=Tensility,
ou=Engineering,
email=QA002@Tensility.com,
c=US
Date: 2016.03.31 15:38:04 -07'00'
Notes:
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:

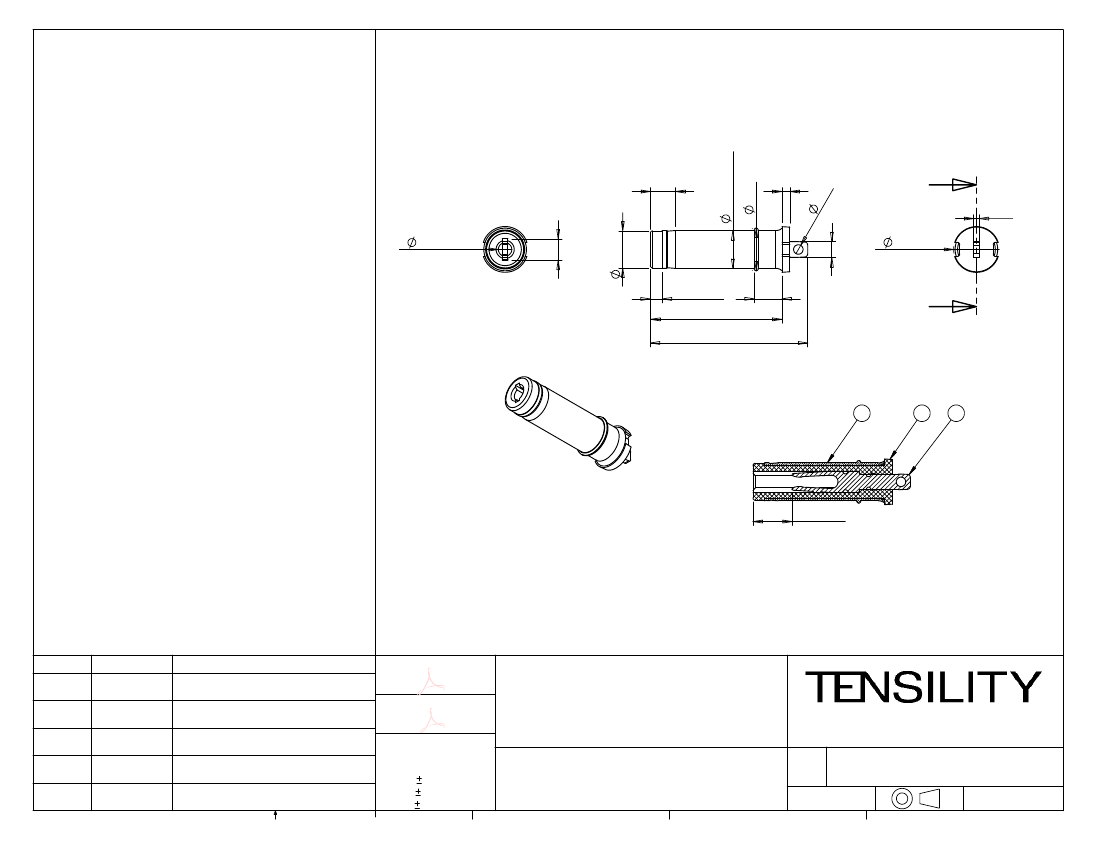

Connector, dc plug, 4.75x1.7xL20 mm, EIAJ-3,
molding style, spring contacts
3
2
tel
fax
Verified:
LA
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
800
web
877.670.7118
tensility.com
Size:
A
Scale:
50-00028
5:1
1
Sheet 1 of 1
