Part Number

Search

700A821GCA50XI

Description
Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.00082uF, 0606,
CategoryPassive components    capacitor
File Size1MB,6 Pages
ManufacturerATC [American Technical Ceramics]
Environmental Compliance
Download Datasheet Parametric View All

700A821GCA50XI Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.00082uF, 0606,

700A821GCA50XI Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7022728565
package instruction, 0606
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.00082 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high1.45 mm
JESD-609 codee4
length1.4 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance2%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
positive tolerance2%
Rated (DC) voltage (URdc)50 V
size code0606
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width1.4 mm

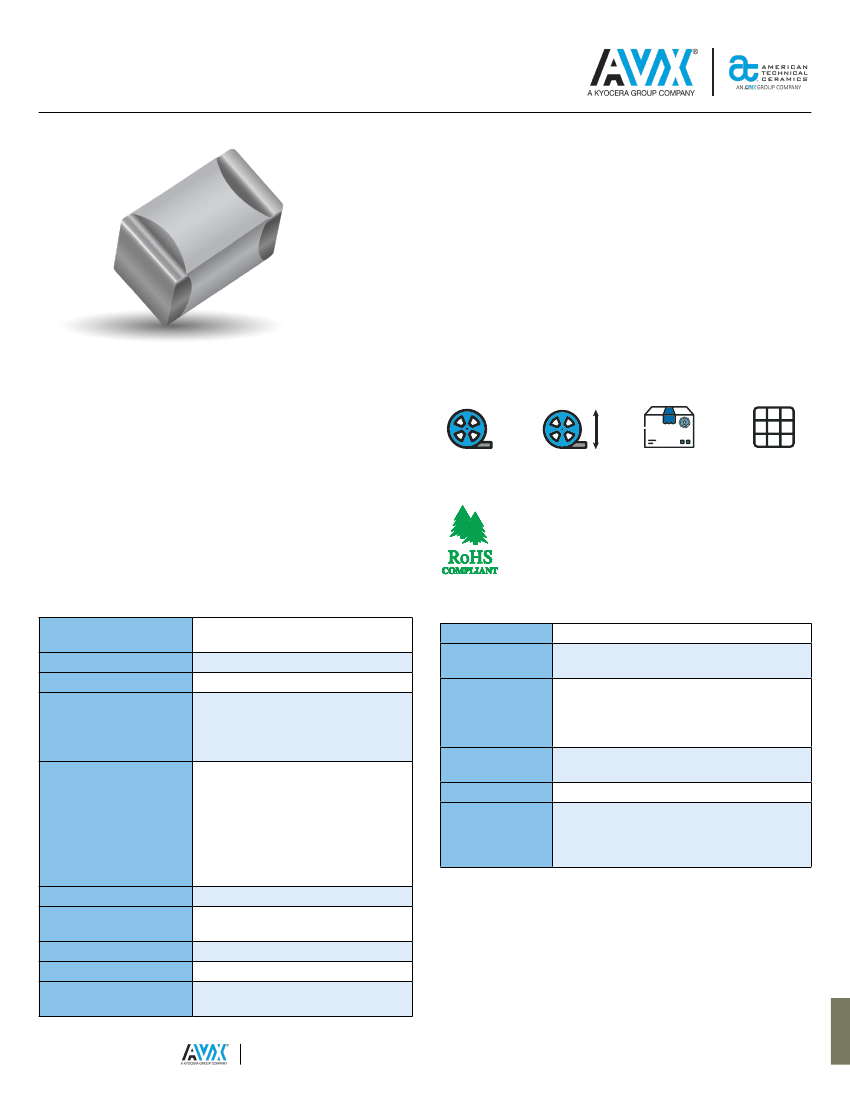

RF/Microwave Capacitors
RF/Microwave Multilayer Capacitors (MLC)

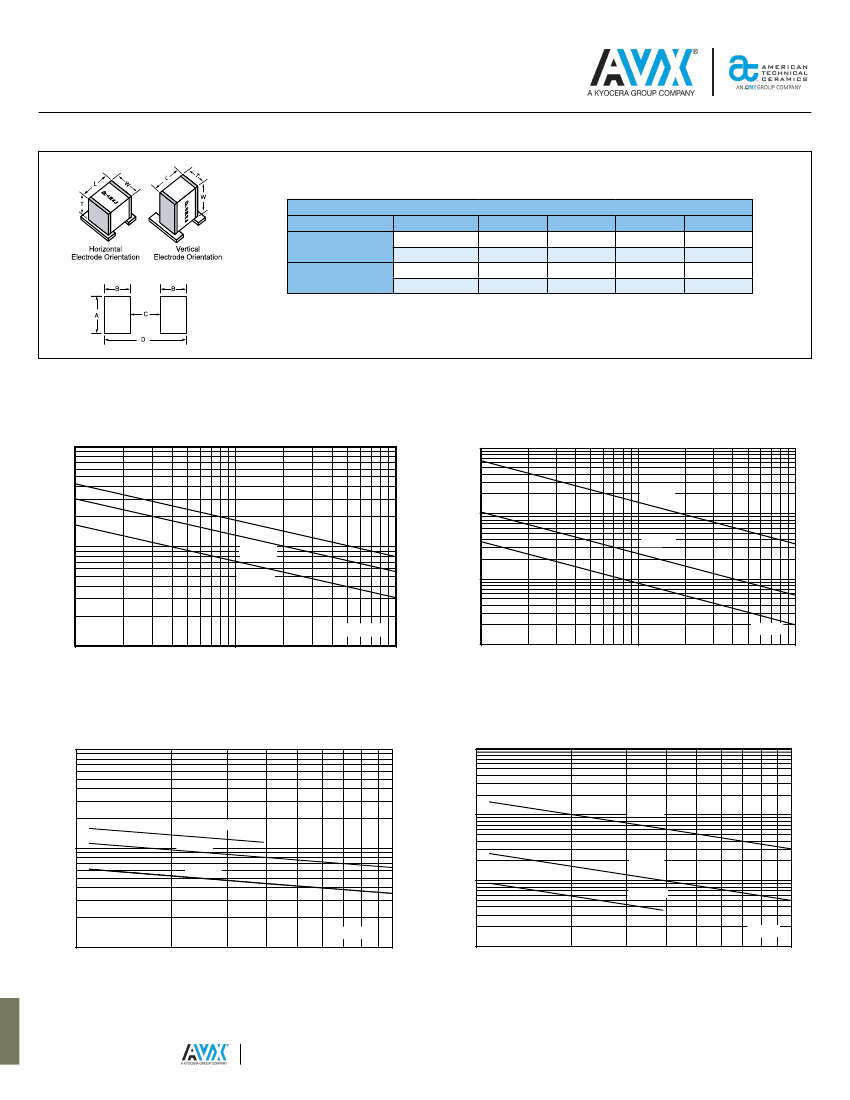

700A Series NP0 Porcelain and Ceramic Multilayer Capacitors
FEATURES
Case A Size (.055” x .055”)
Low ESR / ESL
High Q
Low Noise
Capacitance Range 0.1 pF to 1000 pF
Extended WVDC up to 250 VDC
Zero TCC
High Self-Resonance
Established Reliability (QPL)
GENERAL DESCRIPTION
AVX, the industry leader, offers new improved ESR/
ESL performance for the 700 A Series RF/Microwave
Capacitors. The superior high self- resonance and zero TCC
characteristic of this Series provide excellent performance
over a broad range of RF and microwave applications
requiring minimum drift. High density porcelain and ceramic
constructions provide a rugged, hermetic package.
Typical functional applications: Bypass, Coupling, Tuning and
DC Blocking.
Typical circuit applications: Filters, Oscillators and Timing

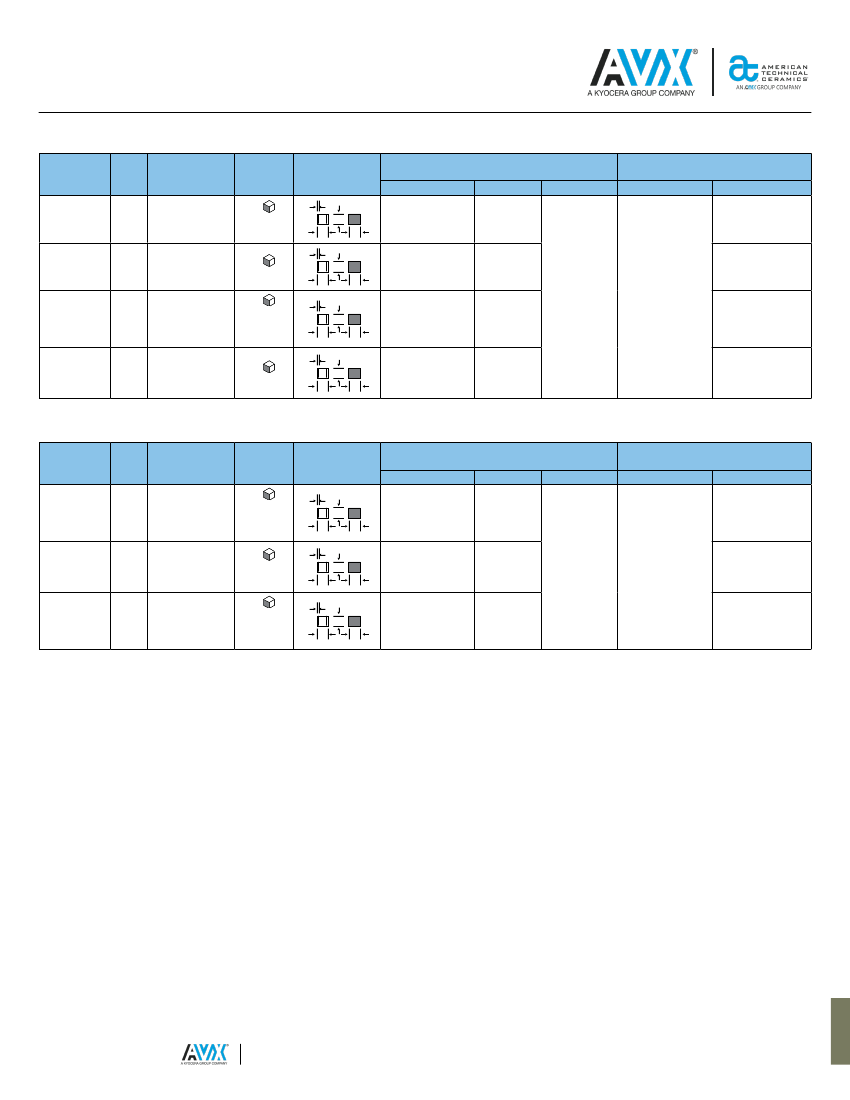

PACKAGING OPTIONS
Tape & Reel
Vertical
Orientation
Tape & Reel
Special
Packaging
Available
Cap-Pak
®
(100 pcs)

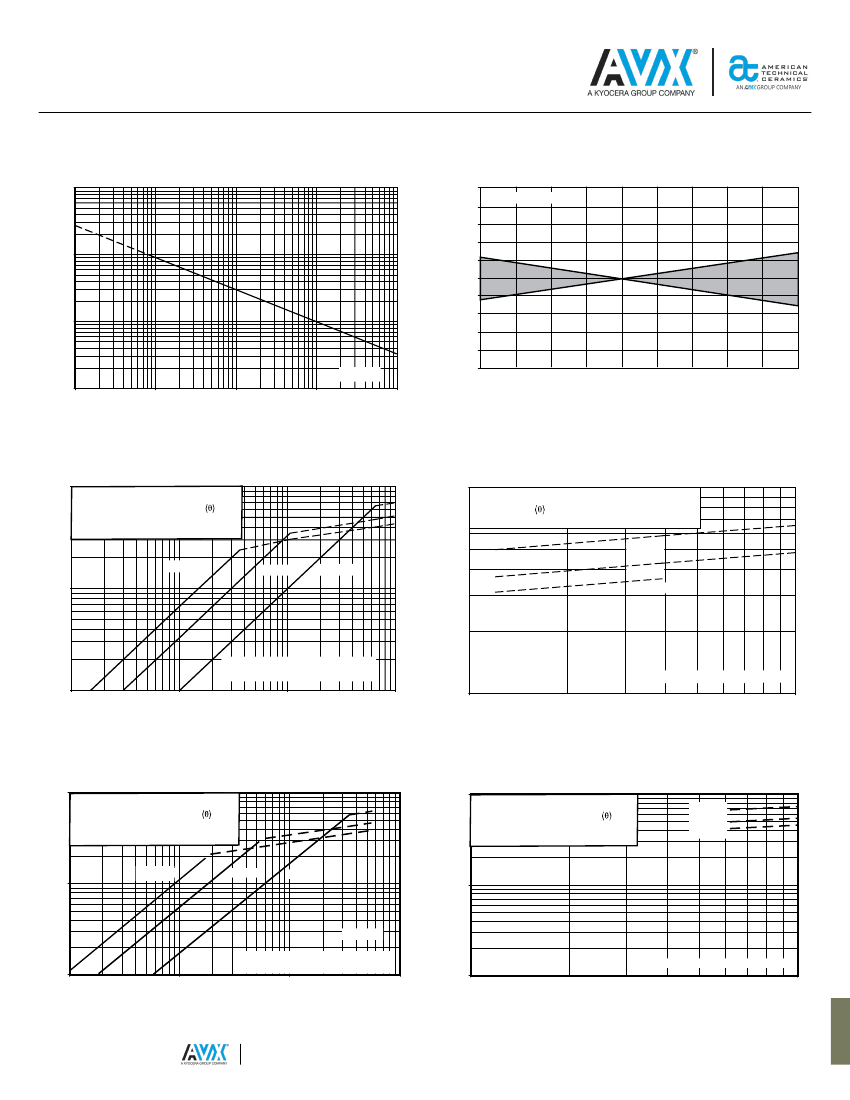

ELECTRICAL SPECIFICATIONS
Temperature Coefficient
(TCC)
Capacitance Range
Operating Temperature
Quality Factor
0 ± 30 PPM/ºC
0.1 pF to 1000 pF
-55ºC to +125ºC*
Greater than 10,000
(0.1 pF to 100 pF) @ 1 MHz.
Greater than 2000
(110 pF to 1000 pF) @ 1 MHz.
0.1 pF to 470 pF
10
6
Megohms min. @ 25ºC at rated
WVDC 10
5
Megohms min. @
125ºC at rated WVDC
510 pF to 5100 pF
10
5
Megohms min. @ 25ºC at rated
WVDC 10
4
Megohms min. @
125ºC at rated WVDC
See Capacitance Values table
250% of rated WVDC for 5 seconds
None
None
± (0.02% or 0.02 pF), whichever
is greater
ENVIRONMENTAL CHARACTERISTICS
Themal Shock
Moisture
Resistance
Low Voltage
Humidity
Life Test
Solderability
Terminal
Strength
Mil-STD-202, Method 107, Condition A
Mil-STD-202, Method 106
Mil-STD-202, Method 103, condition A,
with 1.5 VDC applied while subjected to
an environment of 85ºC with 85% relative
humidity for 240 hours
MIL-STD-202, Method 108, for 2000 hours, at
125°C. 200% WVDC applied.
Mil-STD-202, Method 208
Terminations for chips and pellets withstand
a pull of 5 lbs. min., 10 lbs. typical, for 5
seconds in direction perpendicular to the
termination surface of the capacitor.
Insulation Resistance
(IR)
Working Voltage (WVDC)
Dielectric Withstanding
Voltage (DWV)
Aging Effects
Piezoelectric Effects
Capacitance Drift
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
113020
