2-2013266-9 datasheet, PDF - EEWORLD Datasheet

2-2013266-9: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Straight, Solder Terminal, Latch & Eject, Black Insulator; CategoryThe connector The connector; File Size316KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-2013266-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-2013266-9	-	-	View	Buy Now

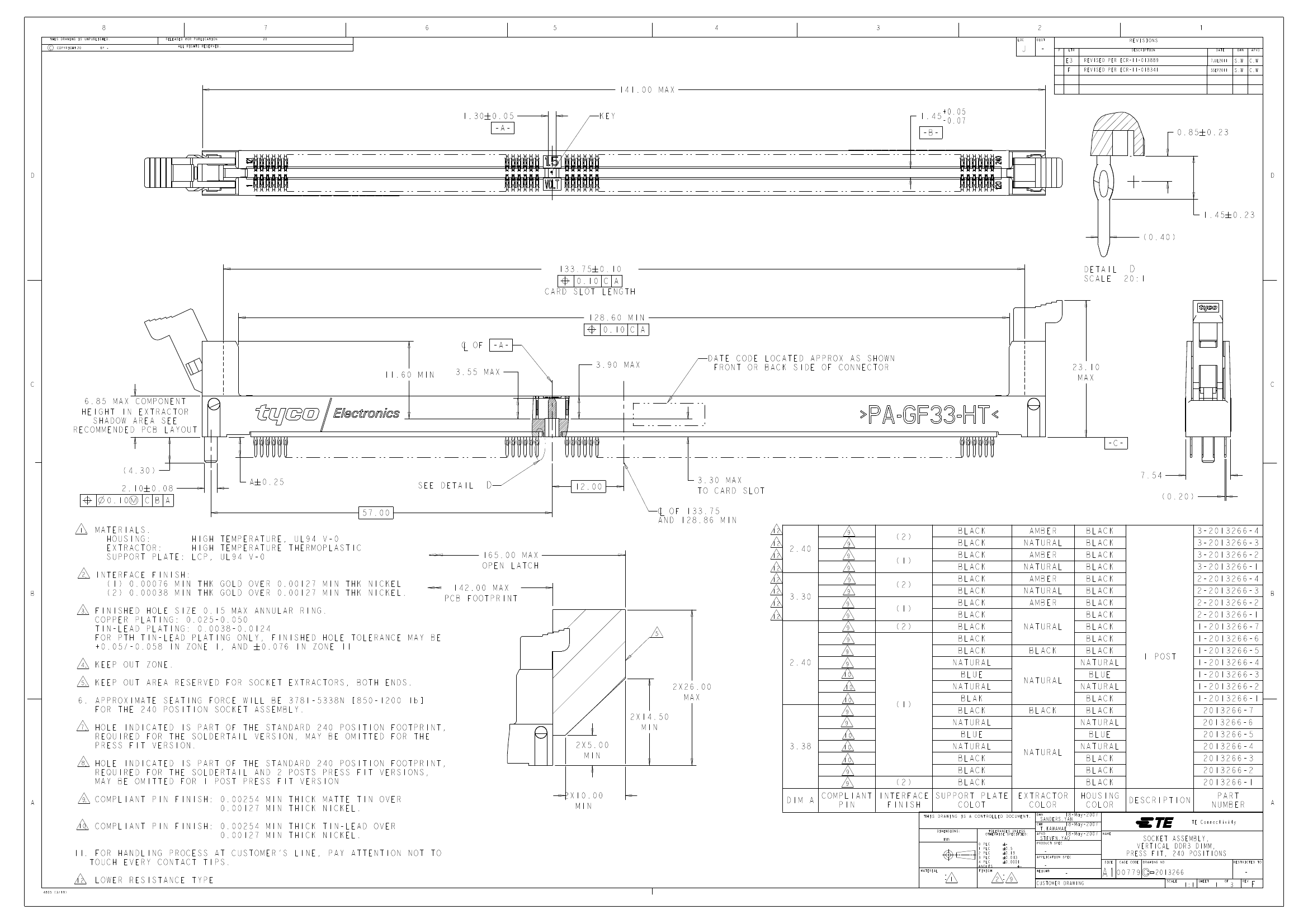

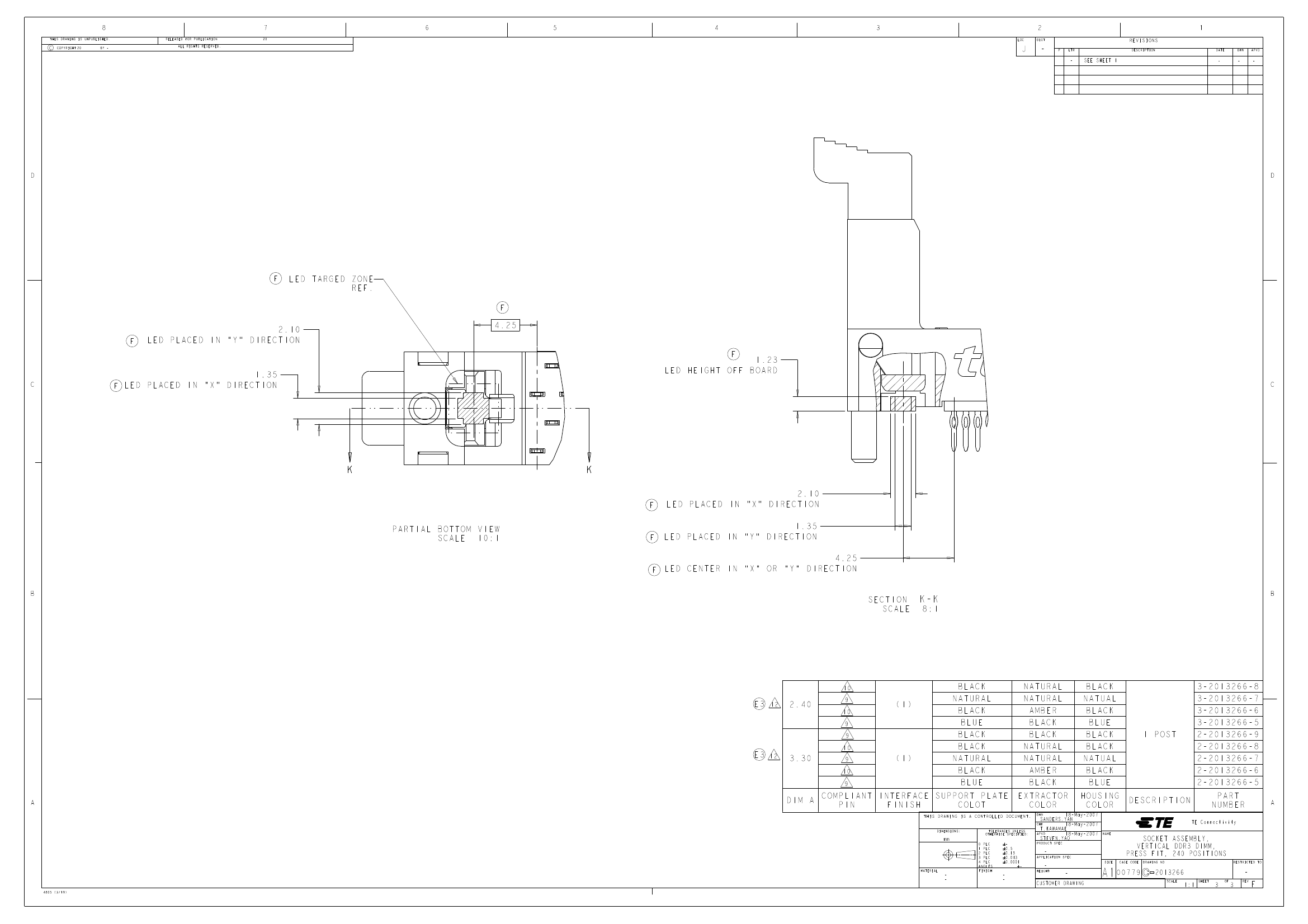

Card Edge Connector, 240 Contact(s), 2 Row(s), Straight, Solder Terminal, Latch & Eject, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313642238
Reach Compliance Code	unknown
body width	0.297 inch
subject depth	0.587 inch
body length	5.551 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact style	BELLOWED TYPE
Insulator color	BLACK
insulator material	POLYETHYLENE
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE

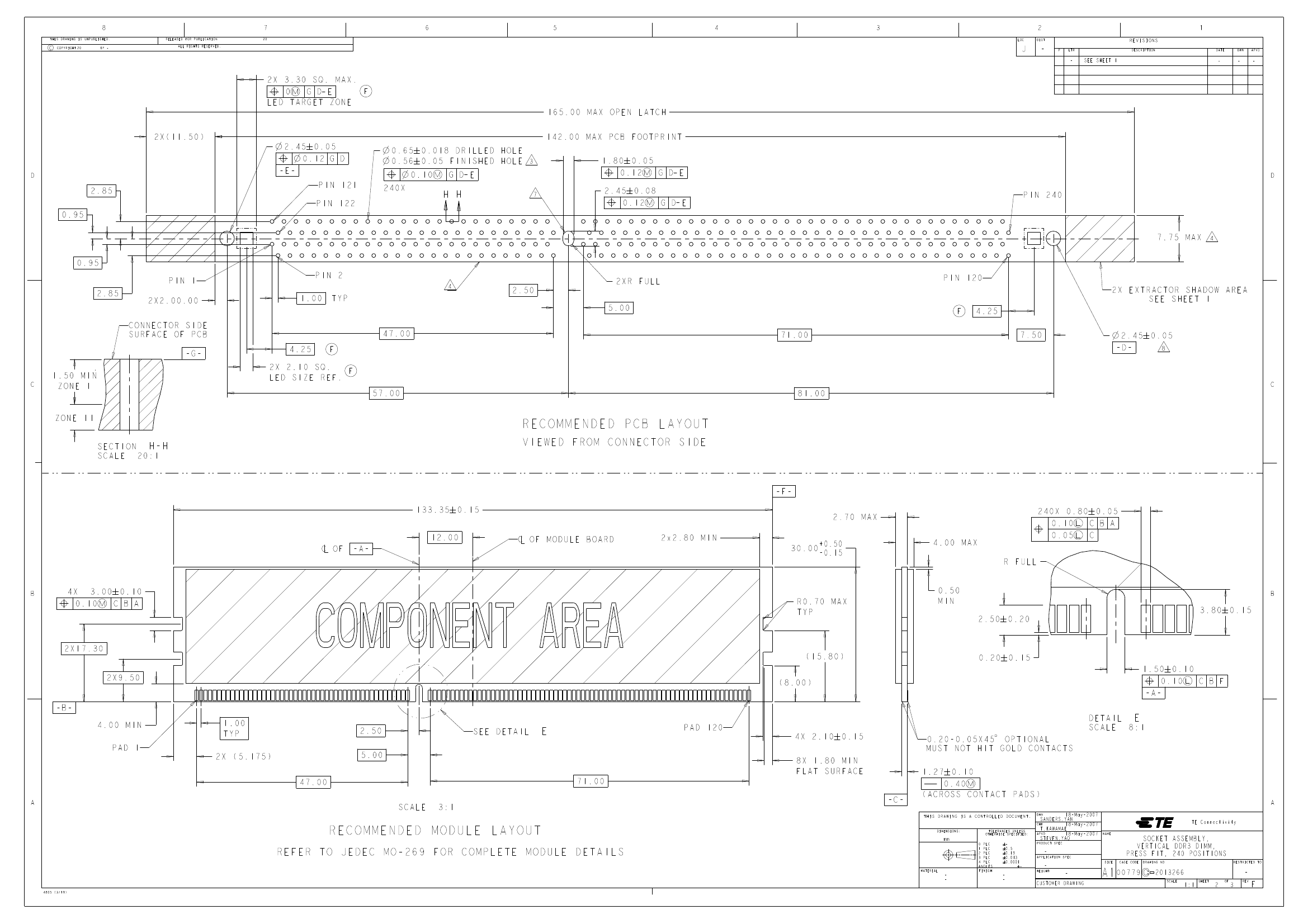

PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.13 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	240
