73783-3101: DescriptionBoard Stacking Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Black Insulator, Receptacle; CategoryThe connector The connector; File Size188KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

73783-3101 Overview

Board Stacking Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Black Insulator, Receptacle

73783-3101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HDM
body width	0.614 inch
subject depth	0.593 inch
body length	2.189 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	32 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3058 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	73783
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	144
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

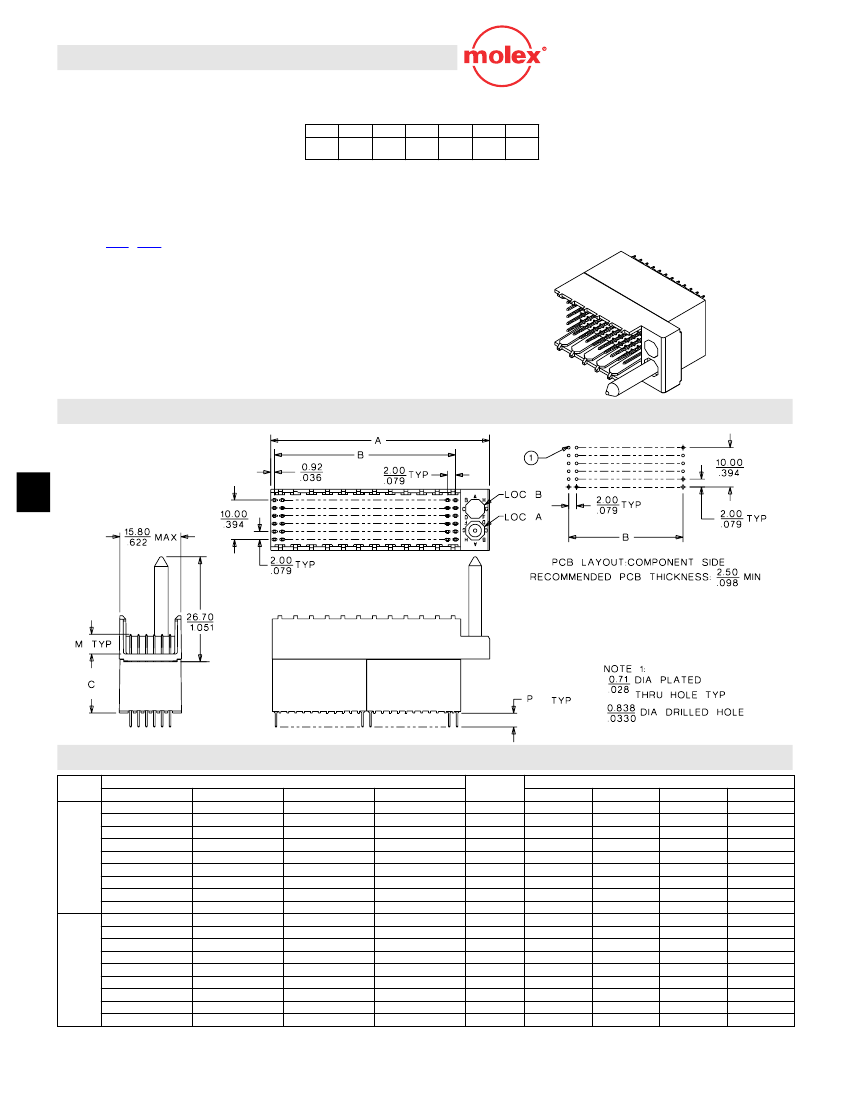

FEATURES AND SPECIFICATIONS

s

Features and Beneﬁts

For parallel board packaging

Available in press-ﬁt or solder tail

Up to 32mm board-to-board stack heights

Mezzanine card to facilitate blind mate

Surface Mount Compatible

Electrical

Current: 1.0A

Contact Resistance:

Row

m

Ω

max.

A

13

B

18

C

20

D

25

E

30

F

32

2.00mm (.079") Pitch

HDM*

Board-to-Board

Stacking Header

73783

High Rise Vertical

Solder Tail Guide Pin Option

Reference Information

Product Speciﬁcation: PS-73670-9999

Packaging: Tube

UL File No.: E29179

Mates With:

73632/73780

Designed In: Millimeters

Dielectric Withstanding Voltage: 1000V

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Mating Force: 0.35N typical per contact

Unmating Force: 0.15N min.

Signal Normal Force: 0.75N nom./0.60N min.

Durability: 250 cycles

Physical

Housing: Liquid crystal polymer

Contact: Phosphor Bronze

Plating: 30

µ

" Gold

Operating Temperature: -55 to +105˚C

Backplane Connector Systems

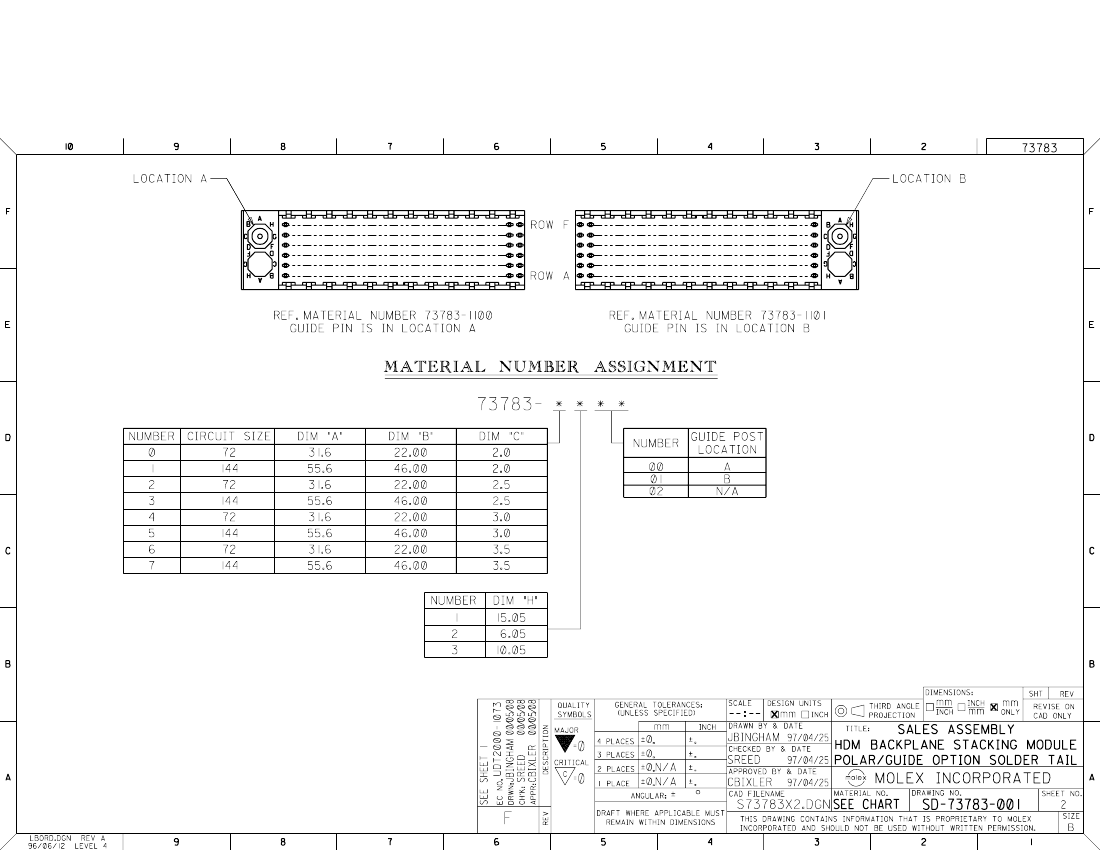

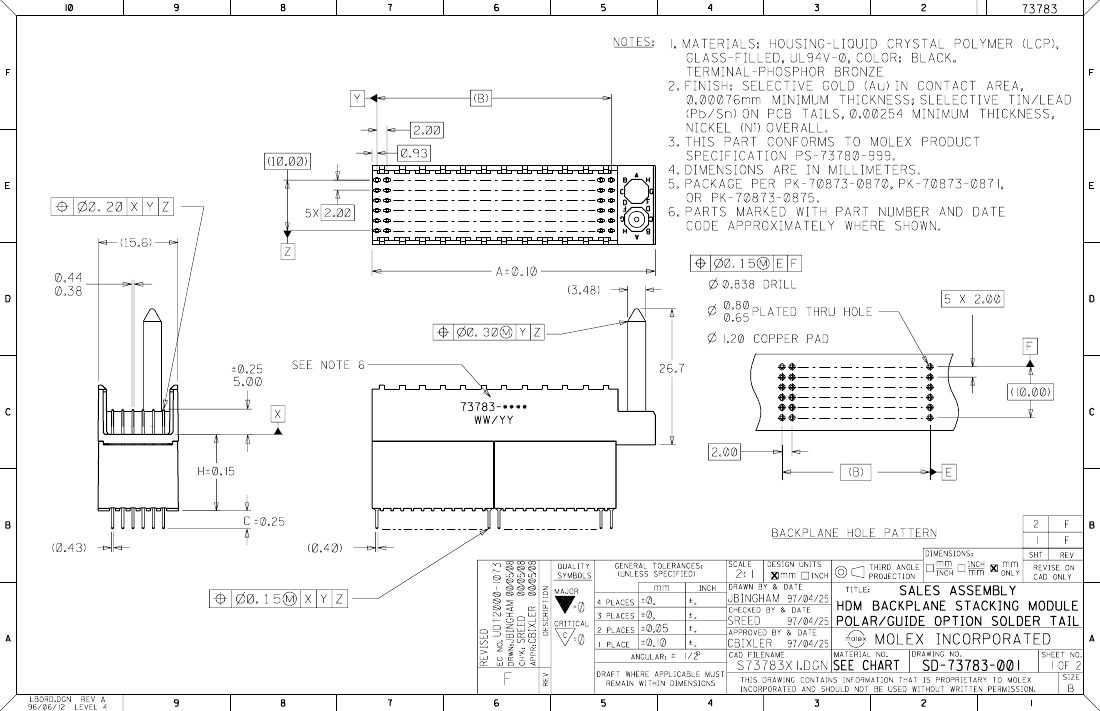

CATALOG DRAWING (FOR REFERENCE ONLY)

J

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

P = 2.00 (.079)

73783-0100

73783-0101

73783-0102

73783-0200

73783-0201

73783-0202

73783-0300

73783-0301

73783-0302

73783-1100

73783-1101

73783-1102

73783-1200

73783-1201

73783-1202

73783-1300

73783-1301

73783-1302

P = 2.50 (.098)

73783-2100

73783-2101

73783-2102

73783-2200

73783-2201

73783-2202

73783-2300

73783-2301

73783-2302

73783-3100

73783-3101

73783-3102

73783-3200

73783-3201

73783-3202

73783-3300

73783-3301

73783-3302

P = 3.00 (.118)

73783-4100

73783-4101

73783-4102

73783-4200

73783-4201

73783-4202

73783-4300

73783-4301

73783-4302

73783-5100

73783-5101

73783-5102

73783-5200

73783-5201

73783-5202

73783-5300

73783-5301

73783-5302

P = 3.50 (.138)

73783-6100

73783-6101

73783-6102

73783-6200

73783-6201

73783-6202

73783-6300

73783-6301

73783-6302

73783-7100

73783-7101

73783-7102

73783-7200

73783-7201

73783-7202

73783-7300

73783-7301

73783-7302

Guide Post

Location

A

B

N/A

A

B

N/A

A

B

N/A

A

B

N/A

A

B

N/A

A

B

N/A

A

31.60 (1.244)

55.60 (2.189)

Dimension

B

C

22.00 (.866)

15.05 (.593)

22.00 (.866)

15.05 (.593)

22.00 (.866)

15.05 (.593)

22.00 (.866)

6.05 (.238)

22.00 (.866)

6.05 (.238)

22.00 (.866)

6.05 (.238)

22.00 (.866)

10.05 (.396)

22.00 (.866)

10.05 (.396)

22.00 (.866)

10.05 (.396)

46.00 (1.811)

15.05 (.593)

46.00 (1.811)

15.05 (.593)

46.00 (1.811)

15.05 (.593)

46.00 (1.811)

6.05 (.238)

46.00 (1.811)

6.05 (.238)

46.00 (1.811)

6.05 (.238)

46.00 (1.811)

10.05 (.396)

46.00 (1.811)

10.05 (.396)

46.00 (1.811)

10.05 (.396)

M

5.00 (.197)

72

144

* High Density Metric and HDM

PLUS

are trademarks of Teradyne, Inc.

Note: Additional key combinations and locations are available, please contact Molex

Note: The guide pin must mate with the top position on the mating receptacle to clear the board edge.

Therefore, if guidepin headers are used on each end of a header array, you should select one with the

pin in location B and the second with the guidepin in location A.

J-50
