Z86E8412VSC datasheet, PDF - EEWORLD Datasheet

Z86E8412VSC: DescriptionMicrocontroller, 8-Bit, OTPROM, 12MHz, CMOS, PQCC28, PLASTIC, LCC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，52 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

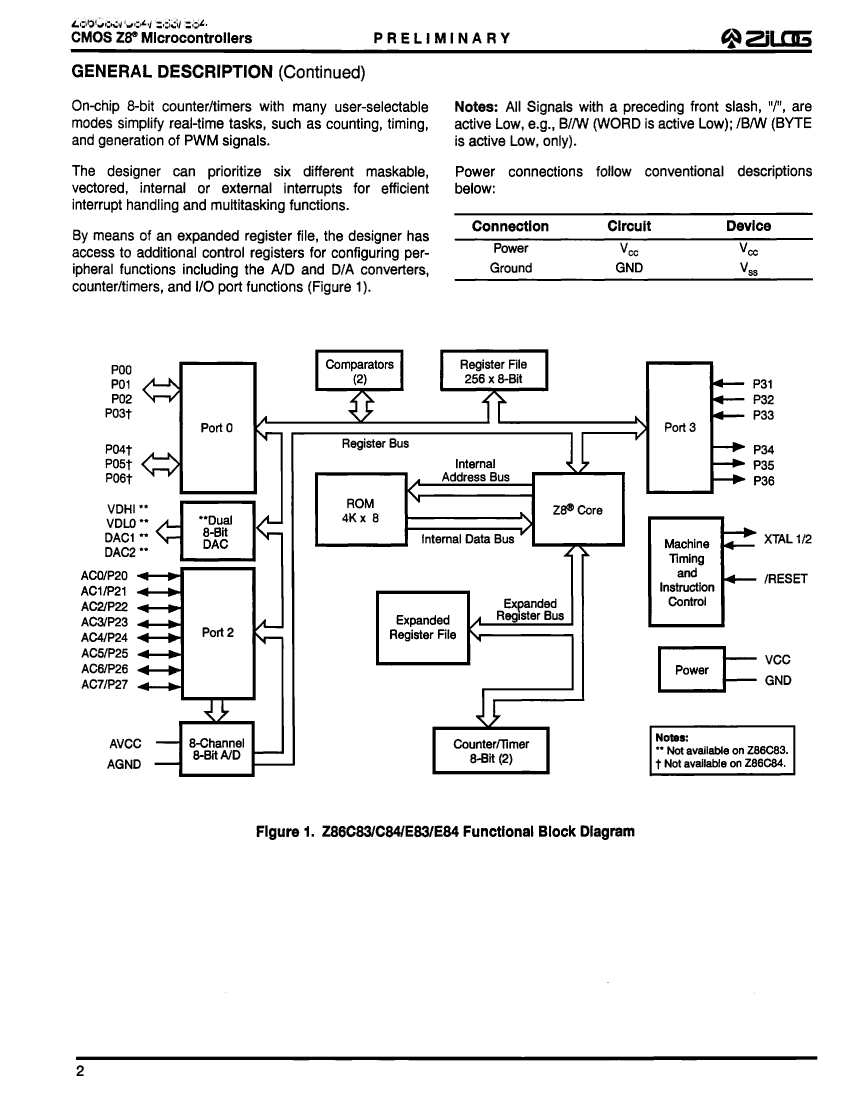

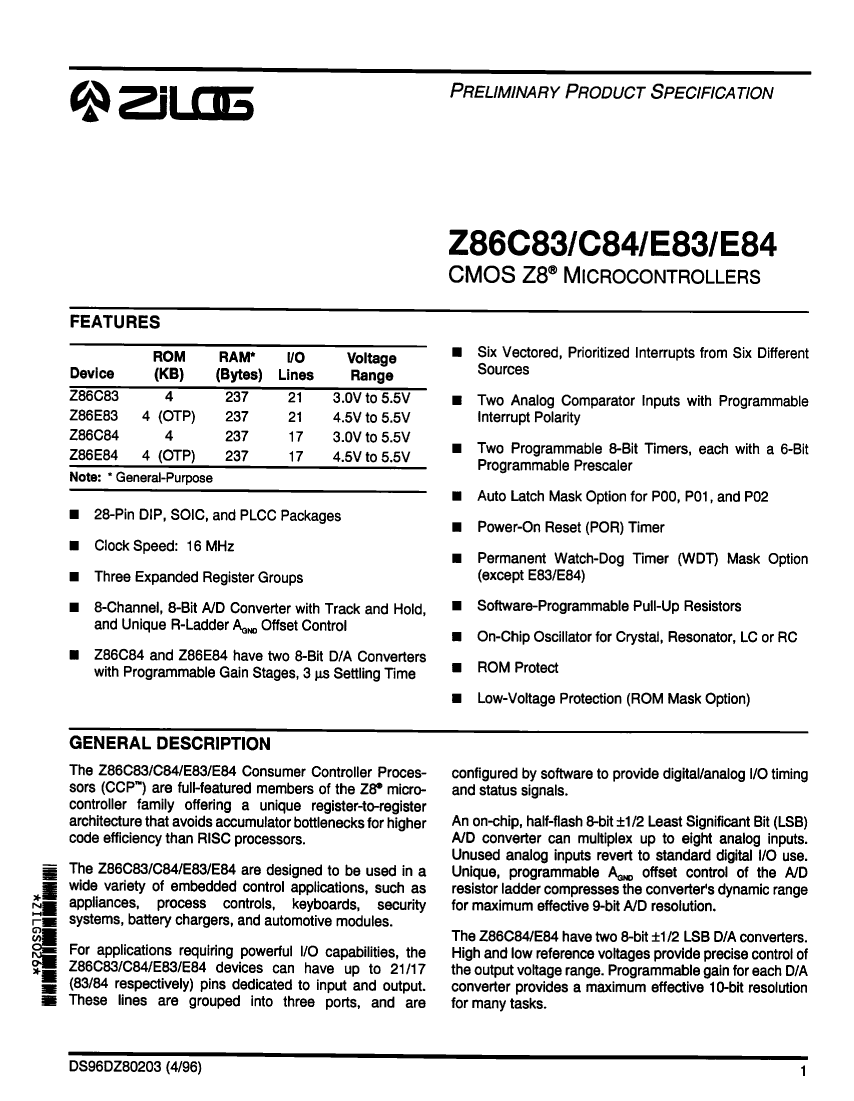

Z86E8412VSC Overview

Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PQCC28, PLASTIC, LCC-28

Parameter Name	Attribute value
Objectid	1416115732
Parts packaging code	QLCC
package instruction	QCCJ,

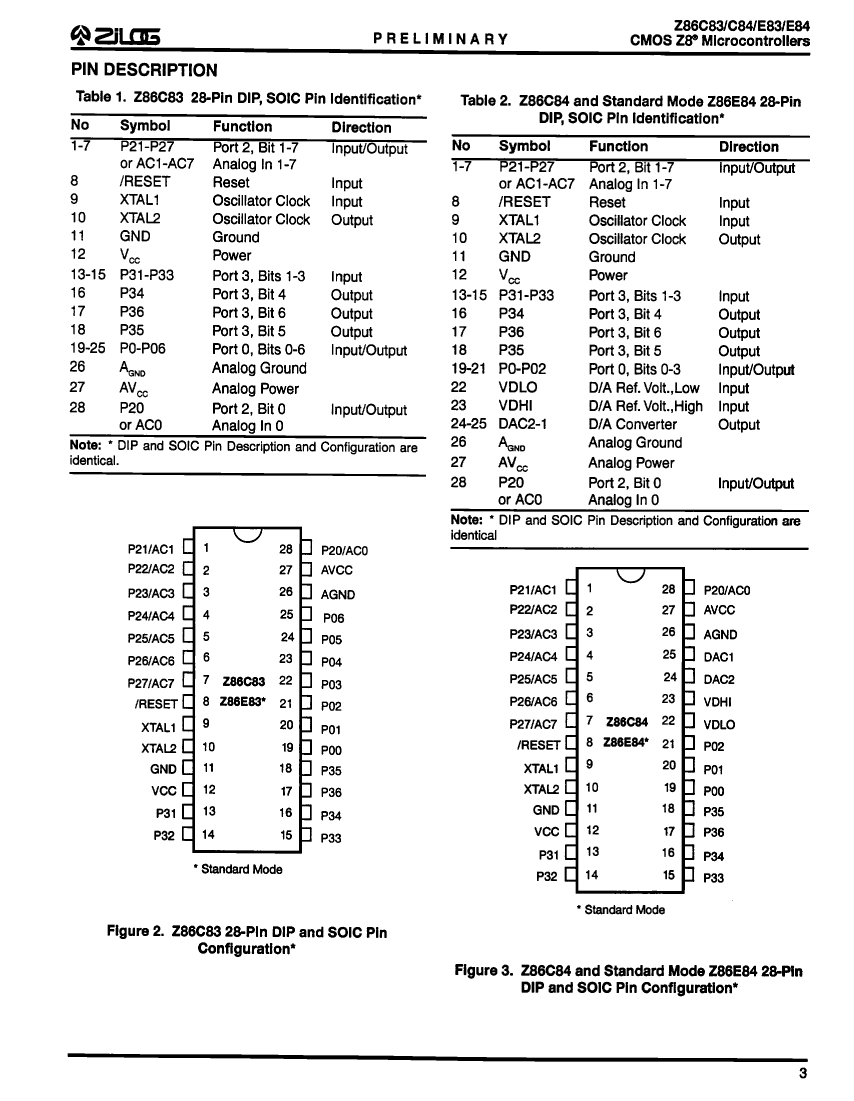

Contacts	28
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	8
maximum clock frequency	12 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	S-PQCC-J28
length	11.5062 mm
Number of I/O lines	17
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	4.57 mm
speed	12 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL

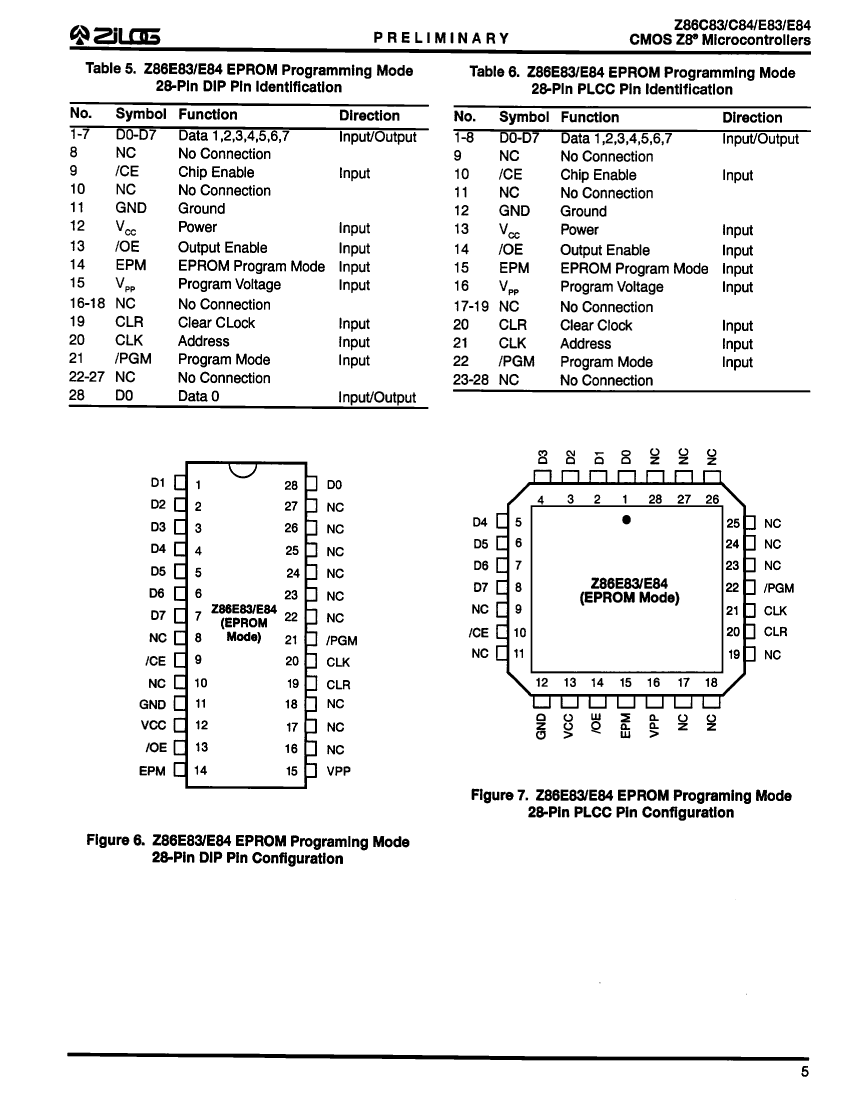

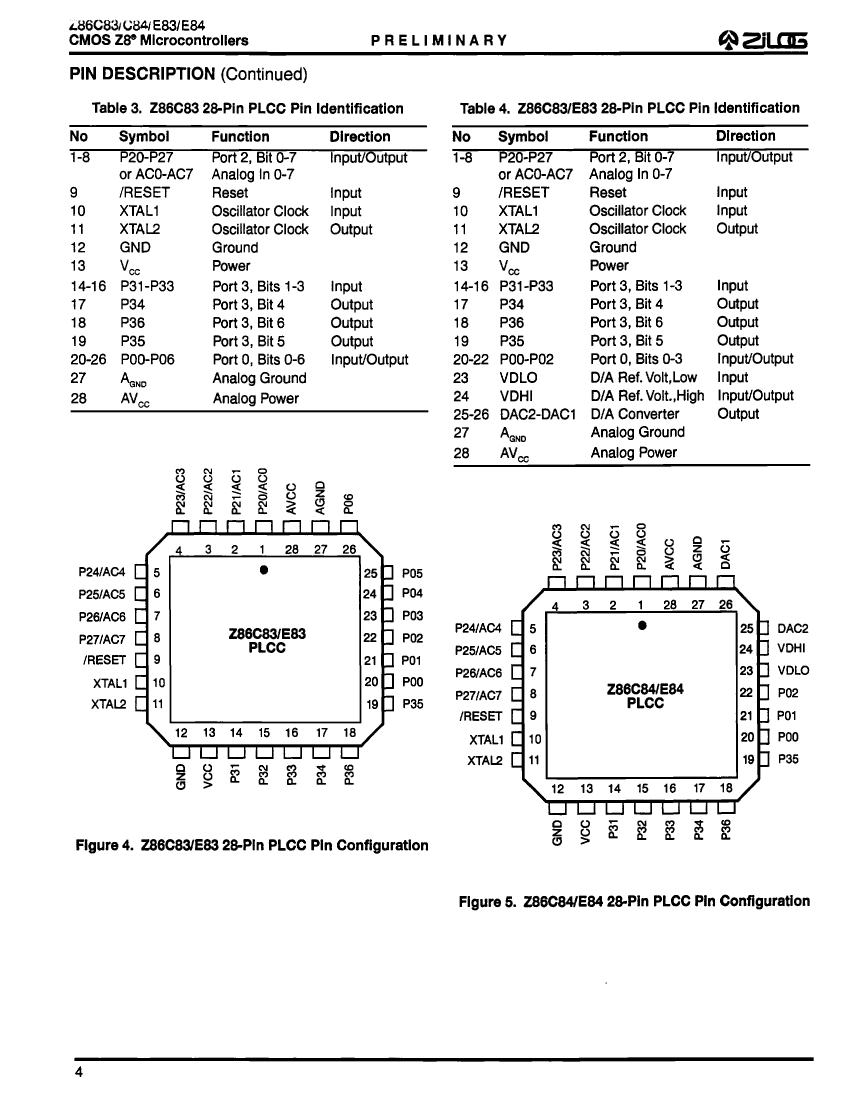

Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5062 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
