MS3452L24-12SX-LC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS3452L24-12SX-LC

Preview

MS3452L24-12SX-LC: Description5 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE,; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

MS3452L24-12SX-LC Overview

5 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE,

MS3452L24-12SX-LC Parametric

Parameter Name	Attribute value
Objectid	7326923259
Reach Compliance Code	unknown
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.5
Other features	STANDARD: MIL-DTL-5015 SERIES III, COMPATIBLE CONTACT: M39029/30-219, M39029/30-221
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	24
Termination type	CRIMP
Total number of contacts	5

Preview

Download Datasheet

View All

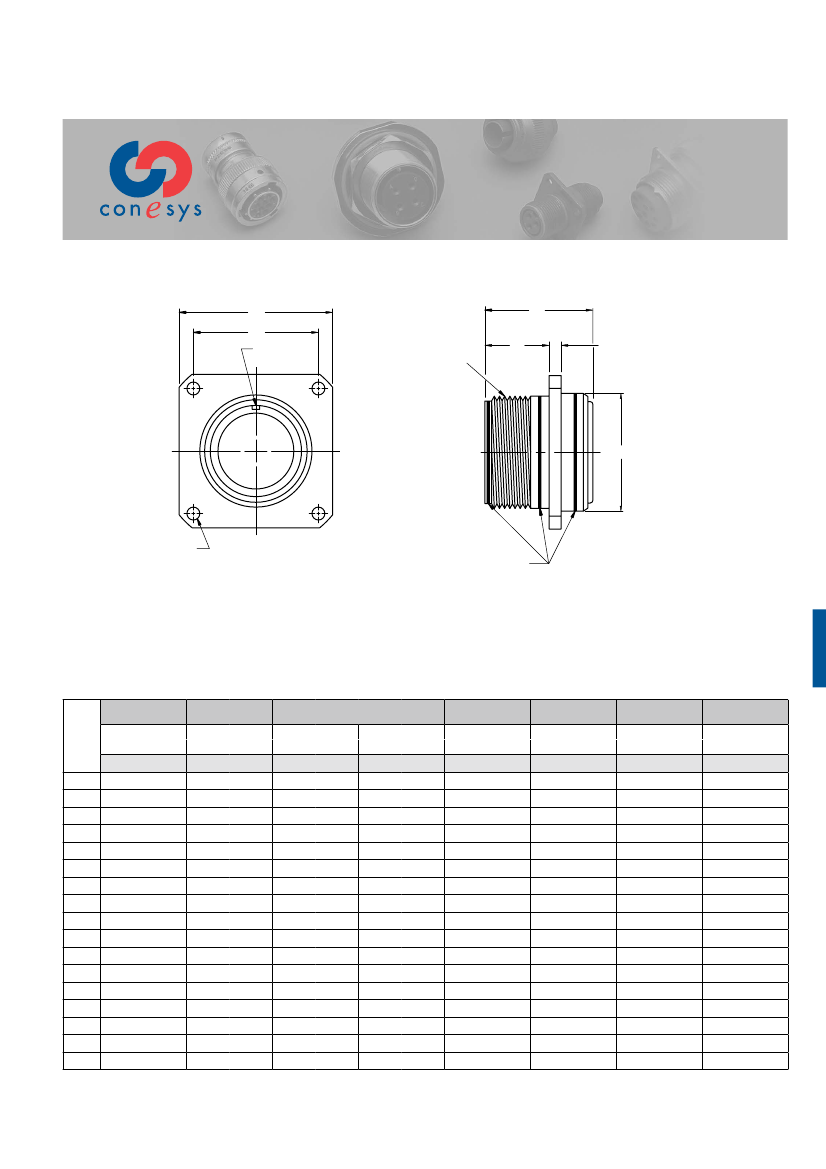

MS3452 per AS34521

Box Mount Receptacle

AE552

Threaded Coupling, Crimp Removable, Rear Release

S

R

POLARIZING KEY

MAX

L

A

MATING THREAD

M

.083±.015(2.11±.38) FOR 8S-16S

.125±.015(3.18±.38) FOR 18-40

GG

4x

T

HOLES

BLUE COLOR BAND

Page 65

Page 75

Pages 82–87

Page 64

Pages 77–81

Page 77

A

Shell

Size

8S

10S

10SL

12

12S

14

14S

16

16S

18

20

22

24

28

32

36

40

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Specifications

Insert Availability and Contact Information

Polarization

Ø

GG

±.016

inch

.500

.625

.750

.875

1.000

1.062

1.187

1.312

1.437

1.750

2.000

2.250

2.500

±.41

mm

12.70

15.88

19.05

22.23

25.40

26.97

30.15

33.32

36.50

44.45

50.80

57.15

63.50

Note 1:

The insulation material shall be above, flush with, or

no more than .015 inches (.38 mm) below the metal shell.

L

MAX

16 & 12

Contacts

inch

mm

1.662

42.21

8, 4 & 0

Contacts

inch

mm

–

1.937

–

1.937

–

49.20

–

49.20

+.031

-.000

inch

.562

.750

.562

.750

.562

.750

.562

.750

.812

.875

M

+.79

-.00

mm

14.27

19.05

14.27

19.05

14.27

19.05

14.27

19.05

20.62

22.23

inch

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.562

1.750

1.938

2.188

R

(TP)

mm

15.09

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

39.67

44.45

49.23

55.58

±.031

inch

.875

1.000

1.094

1.188

1.281

1.375

1.500

1.625

1.750

2.000

2.250

2.500

2.750

S

±.79

mm

22.23

25.40

27.79

30.18

32.54

34.93

38.10

41.28

44.45

50.80

57.15

63.50

69.85

Ø

T

+.010

-.005

inch

.120

.147

.173

+.25

-.13

mm

3.05

3.73

4.39

Mating Thread

Class 2A

1/2-28 UNEF

5/8-24 UNEF

3/4-20 UNEF

7/8-20 UNEF

1-20 UNEF

1 1/8-18 UNEF

1 1/4-18 UNEF

1 3/8-18 UNEF

1 1/2-18 UNEF

1 3/4-18 UNS

2-18 UNS

2 1/4-16 UN

2 1/2-16 UN

www.conesys.com

– 68 –

sales

@

aero-electric.com
