Detail
A
SPECIFICATIONS
Current rating:
Contact material:
Contact plating:
B
5 amps
Brass, stamped pin
Gold in contact area
Gold or tin on solder tails
Contact resistance: 15 milliohms max.
Insulator material:
PBT and Nylon 6T, UL94V-0
Insulator resistance: 1000 megohms min.
Shell material:
Steel
Shell plating:
Tin
Withstanding:
500 VAC/1 min.
Operating temp.:
-50°C to +100°C
A
B
C
C
D
Dimensions
Positions A
B
C
9
30.80 24.99 16.34
15
39.15 33.32 24.70
25
53.00 47.04 38.40
37
69.30 63.50 54.80
50
67.00 61.00 52.20
D
19.20
27.70
41.10
57.30
55.10
T
3.0
4.3
4.8
6.5
D
E
Series
Type
Tail Options
DSXX
FHT
X
D-sub connector FT=Female vertical mount A1=3.0mm A2=4.3mm
XX=Pins
MT=Male vertical mount
A3=4.8mm A4=6.5mm
9, 15, 25, 37, 50 MHT=Male high profile
B=Wire wrap A5=3.6mm
FHT=Female high profile
A6=5.4mm
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Face Options
XXX
[blank]=.120” thru hole X=Board lock length
RCN=Clinch nut
1=11mm
RJS=Jackscrew
2=12mm
RSBX=Standoff with 3=12.7mm
board locks
4=13.7mm
5=14.7mm
Other Options
XX
[blank]=None
FF=Ferrite filter
YC=Yellow chromate
shell
E
F
Date
07/16/07
07/16/07
07/16/07 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
DSXX-FHT-X-XXX-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

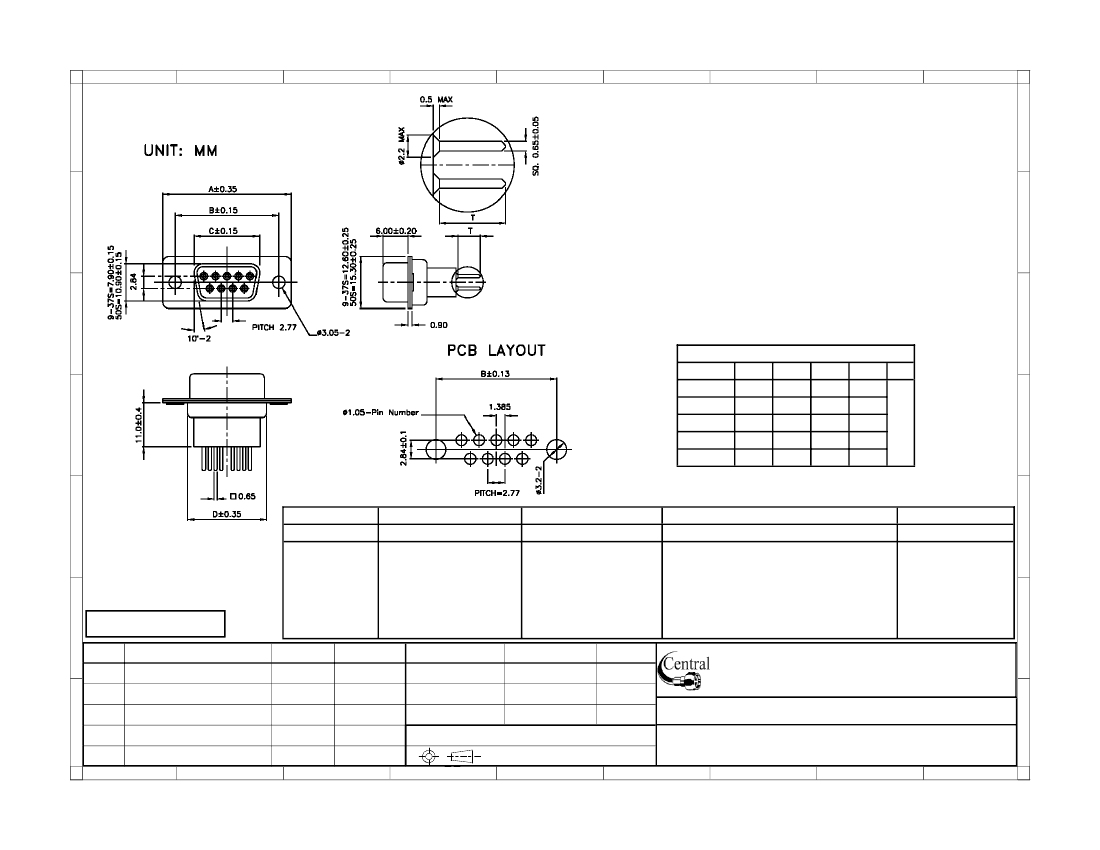

Description: D-sub connector, female, high profile, vertical PCB
mount, stamped pin
G
