HE34-0157-020-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> HE34-0157-020-Z

HE34-0157-020-Z: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size287KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

HE34-0157-020-Z Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

HE34-0157-020-Z Parametric

Parameter Name	Attribute value
Objectid	304394196
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.134 inch
subject depth	0.115 inch
body length	0.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

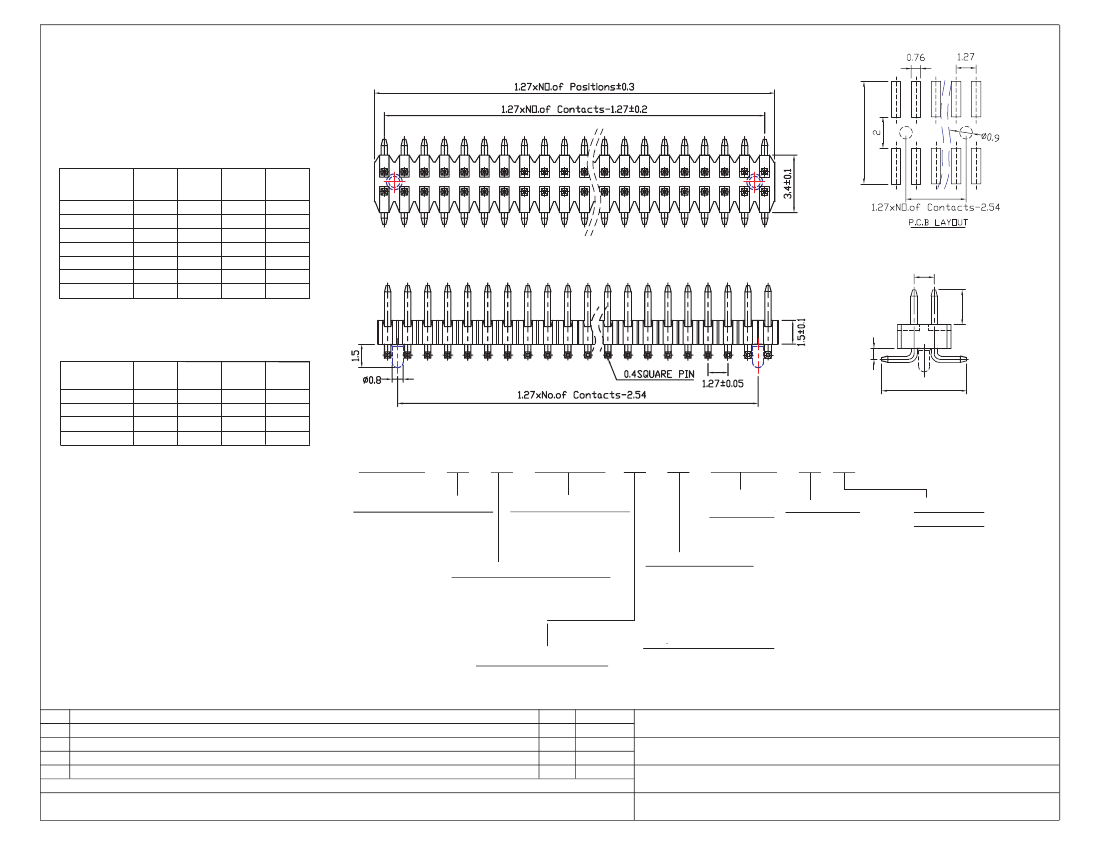

w/out LOCATOR PEGS DIMENSION (mm)

DIMENSION

NUMBER

5.84

5.80

5.84

1.65

4.00

3.05

1.22

1.00

0.40

1.27

A+ 1.00

D +/- 0.05

B +/-0.2

w/ LOCATOR PEGS DIMENSION (mm )

DIMENSION

NUMBER

5.84

5.80

5.84

1.65

4.00

3.05

1.22

1.00

0.40

1.27

HOW TO ORDER:

- Z

C+/-0.2

A+/- 0.3

ELECTRICAL:

CURRENT RATING: 1 AMP

INSULATOR THICKNESS:

DIMENSION NUMBER:

CONTACT RESISTANCE: 20 MilliOhms Max

3 - Insulator w/o Mtg. Peg

SEE DIMENSION

INSULATOR RESISTANCE: 5000 MegaOhms

4 - Insulator w/ Mtg. Peg

TABLE ABOVE

DIELECTRIC WITHSTANDING: AC 500V

OPERATING TEMPERATURE: -40° C TO +105° C

MAX PROCESSING TEMPERATURE: 230°C for 30-60 Seconds

NUMBER OF ROWS/POST SIZE:

(260°C for 10 Seconds)

4 - Double Row w/ .40 mm Post

MATERIAL:

INSULATOR: NYLON 6T & 30% GF (UL94V-0)

CONTACT MATERIAL: COPPER ALLOY

CONTACT PLATING: OPTIONAL GOLD OR TIN OVER NICKEL

(GOLD THICKNESS OPTIONAL)

MECHANICAL:

RETENTION FORCE: 750g MIN.

Rev

0 Issued

A Revised For RoHS Compliance

B Added Dimension 02 & 03

SCALE: None

DRAWING No.

TOL. DEC.

INSULATOR THICKNESS

5 - 1.5 mm

Apv.

S.E.

A.M.

WHS

Date

10/1/97

09/30/05

06/27/06

NUMBER OF

PACKAGING:

RoHS

CONTACTS:

COMPLIANT

0 - Tray Package

01 thru 98

1 - W/out CAP In Tube

A0=100

2 - With CAP In Tube

PLATING OVERALL:

3 - With CAP In Tube & Reel

0 - FULL TIN

1 - FULL Au FLASH

2 - 10" Au

3 - 15" Au

4 - 30" Au

SELECTIVE PLATING:

5 - Au FLASH CONTACT AREA/TIN TAIL

6 - 10



" Au CONTACT AREA/TIN TAIL

7 - 15



" Au CONTACT AREA/TIN TAIL

8 - 30



" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

Double Row

Pin Header, Surface Mount, 1.27mm Pitch;DOu

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: HEX4-XX5X-XXX-Z

Pg: 1
