Printed-circuit board connector - DMC 1,5/ 2-G1-3,5 P35 - 1053808
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 2, pitch: 3.5 mm, color:
green, contact surface: Tin, mounting: Wave soldering
The figure shows a 10-pos. version
with 20 contacts
Your advantages
Conductor connection on several levels enables higher contact density
Small component size for applications where space is at a premium
Well-known mounting principle allows worldwide use
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626685984
50 pc
50 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
Pin spacing
Length
11.6 mm
7.8 mm
3.5 mm
3.5 mm
7.8 mm
14.3 mm
10.8 mm
3.5 mm
0.8 x 0.8 mm
2.50 mm
11.6 mm
02/11/2019 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1053808
Printed-circuit board connector - DMC 1,5/ 2-G1-3,5 P35 - 1053808
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Flammability rating according to UL 94
Color
Number of positions
DMC 1,5/..-G1
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
250 V
EN-VDE
8A
8A
V0
green
2
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Drawings
Schematic diagram

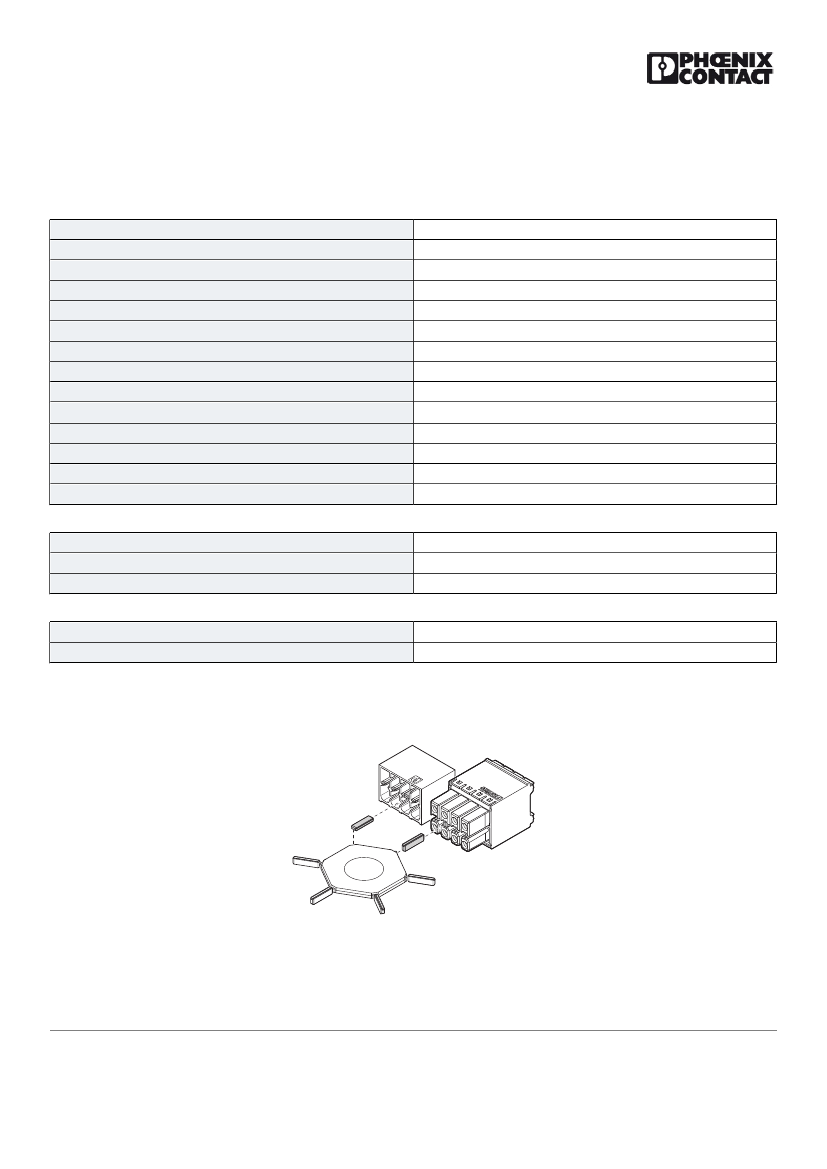

Use of the CP-DMC... coding profile
Approvals
Approvals
02/11/2019 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1053808
Printed-circuit board connector - DMC 1,5/ 2-G1-3,5 P35 - 1053808
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
B.01742
