SR405A393DAA: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 0% +Tol, 0% -Tol, C0G, 30ppm/Cel TC, 0.039uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size196KB，6 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

SR405A393DAA Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 0% +Tol, 0% -Tol, C0G, 30ppm/Cel TC, 0.039uF, Through Hole Mount, RADIAL LEADED

SR405A393DAA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Manufacturer's serial number	SR
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

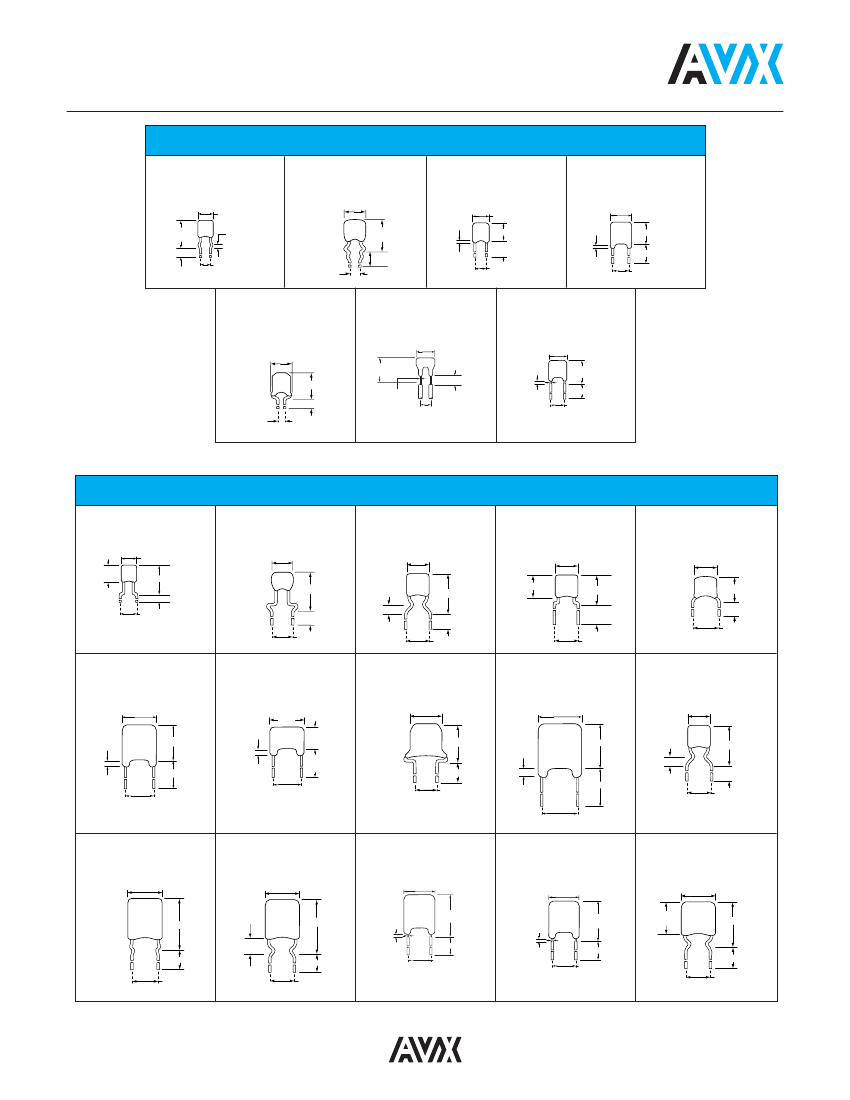

Radial Leads/SkyCap

GENERAL INFORMATION

AVX SR Series

Conformally Coated Radial Leaded MLC

Temperature Coefficients:

C0G (NP0), X7R, Z5U

200, 100, 50 Volts (300V, 400V & 500V also available)

Case Material:

Epoxy

Lead Material:

Solderable

L.S.

.762/.030

Nom.

Max.

Styles SR22, SR27

1.0" Min.

H Max.

Dimensions: Millimeters (Inches)

Max.

H Max.

Max.

1.52/.060

Max.

1.0" Min.

Nom.

Max.

See Note

L.S.

.762/.030

Styles SR15, SR20,

SR30, SR40, SR50

H Max.

Nom.

Max.

See Note

1.0" Min.

L.S.

.762/.030

Note: Coating clean .784/.031 min.

above

seating

plane

Style SR21

HOW TO ORDER

SR21

AVX Style

SR15

SR20

SR21

SR22

SR27

SR30

SR40

SR50

Voltage

5 = 50V

1 = 100V

2 = 200V

9 = 300V

8 = 400V

7 = 500V

Temperature

Coefficient

A = C0G (NP0)

C = X7R

E = Z5U

104

Capacitance

First two digits are the significant

figures of capacitance. Third digit

indicates the additional number of

zeros. For example, order

100,000 pF as 104. (For values

below 10pF use “R” in place of

decimal point, e.g., 1R4 = 1.4pF.)

Capacitance

Tolerance

C0G (NP0):

C = ±.25pF

D = ±.5pF

F = ±1%

(>50pF only)

G = ±2%

(>25pF only)

J = ±5%

K = ±10%

X7R:

J = ±5%

K = ±10%

M = ±20%

Z5U:

M = ±20%

Z = +80%

-20%

Failure Rate

A = Not Applicable

Leads

T = Trimmed Leads

.230" ± .030"

A = Long Leads

1.0" minimum

(Other lead lengths

are available,

contact AVX)

R = RoHS

Long Lead

1.0" minimum

MARKING

FRONT

XXX

X X X

Capacitance Code

Tolerance Code

Voltage Code

Temp. Char. Code

PACKAGING REQUIREMENTS

BACK

XXX

A XX

3 Digit Date Code

Lot Code

AVX Logo

SR15, 20, 21, 22, 27, 30

SR40, 50

Quantity per Bag

1000 Pieces

500 Pieces

Note: SR15, SR20, SR21, SR30, and SR40 available on tape and reel per EIA

specifications RS-468. See Pages 23 and 24.

SR405A393DAA Related Products

	SR405A393DAA	SR405A393JA-R	SR405A393GA-R	SR405A393FA-R	SR405A393FAA	SR405A393GAA	SR405A393CAT	SR405A393DAT	SR405A393FAT	SR405A393GAT
Description	Ceramic Capacitor, Multilayer, Ceramic, 50V, 0% +Tol, 0% -Tol, C0G, 30ppm/Cel TC, 0.039uF, Through Hole Mount, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED	Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.039uF, Through Hole Mount, 4015, RADIAL LEADED	Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.039uF, Through Hole Mount, 4015, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.039uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX
package instruction	,	RADIAL LEADED	RADIAL LEADED	RADIAL LEADED	, 4015	, 4015	,	,	, 4015	, 4015
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknow	unknow	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.039 µF	0.039 µF	0.039 µF	0.039 µF	0.039 µF	0.039 µF	0.039 µF	0.039 µF	0.039 µF	0.039 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
Manufacturer's serial number	SR	SR	SR	SR	SR	SR	SR	SR	SR	SR
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	-	5%	2%	1%	1%	2%	-	-	1%	2%
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
positive tolerance	-	5%	2%	1%	1%	2%	-	-	1%	2%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Temperature characteristic code	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-	-	-	-
Number of terminals	2	-	-	-	2	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	-	-	-	-
JESD-609 code	-	e3	e3	e3	e3	e3	-	-	e3	e3
Terminal surface	-	MATTE TIN	MATTE TIN	MATTE TIN	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-	-	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie
