DO51X242M251RSMV datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> DO51X242M251RSMV

DO51X242M251RSMV: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.0024uF, 5030,; CategoryPassive components capacitor; File Size130KB，2 Pages; ManufacturerCapax Technologies Inc; Websitehttp://www.capaxtechnologies.com/

Download Datasheet Parametric View All

DO51X242M251RSMV Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.0024uF, 5030,

DO51X242M251RSMV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	892336273
package instruction	, 5030
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	5.1
capacitance	0.0024 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	12.7 mm
JESD-609 code	e0
length	12.7 mm
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
series	DO51(X7R)
size code	5030
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal pitch	10.16 mm
width	7.62 mm

Preview

Download Datasheet

View All

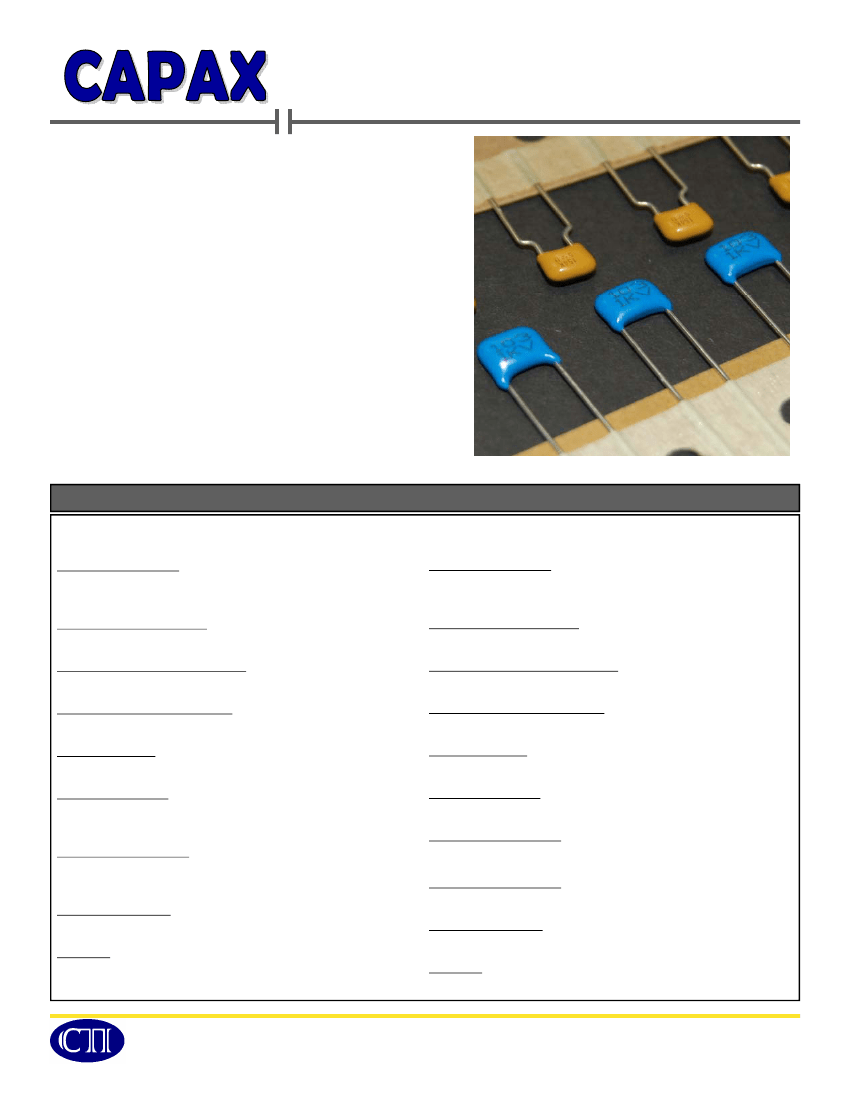

Technologies, Inc

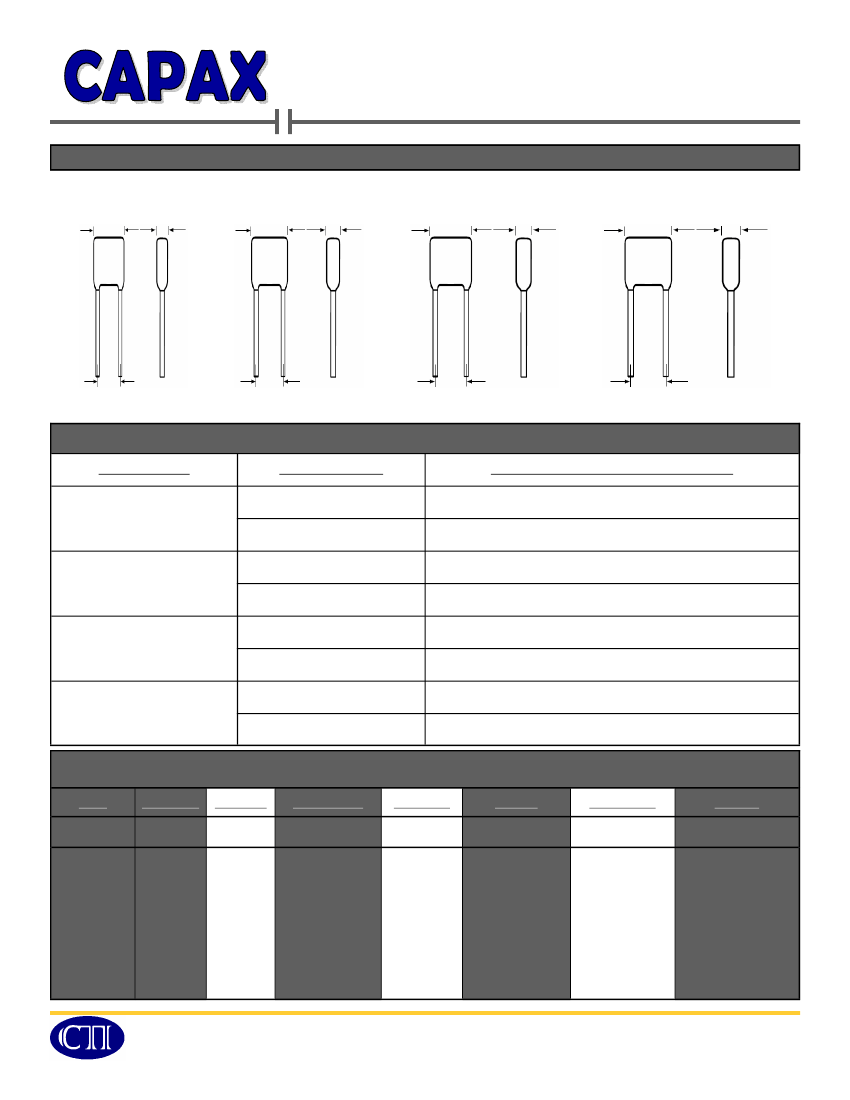

High Voltage Multi-Layer

Capacitor Radials (DO Style)

High Voltage Multi-Layer Capacitor (MLC) Radials are

designed to meet difficult parameters, such as improved

long term reliability and suitability for harsh environments.

The DO-style capacitors are conformal coated components

that offer enhanced reliability in extreme environments,

generally found in military/aerospace applications. The

DO-Style Radial MLC Capacitors are ideal for

applications such as snubbers in high frequency power

converters, high voltage coupling/DC blocking and

resonators in SMPS.

High Voltage MLC Radials are suitable solutions for

applications that require:

•

Enhanced long term reliability

High dependability for environmental extremes

High voltage encapsulated capacitor

General Specifications

COG D

IELECTRIC

ATERIAL

Capacitance Range

10pF to .15µF (+25°C, 1.0±0.2 Vrms at 1kHz,

for

≤1000pF

use 1 MHz)

Capacitance Tolerances

±5%; ±10%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristics

0 ± 30ppm/°C

Voltage Ratings

100 VDC thru 3000 VDC

Dissipation Factor

0.15% max, (+25°C, 1.0±0.2 Vrms at 1kHz,

for

≤100pF

use 1 MHz)

Insulation Resistance (+25°C, at 500V)

100K MΩ min. or 100 MΩ-µF min,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

X7R D

IELECTRIC

ATERIAL

Capacitance Range

1000pF to 22µF

(+25°C, 1.0±0.2 Vrms at 1kHz)

Capacitance Tolerances

±5%; ±10%; ±20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristics

± 15% (0 VDC)

Voltage Ratings

50 VDC thru 3000 VDC

Dissipation Factor

2.5% max, (+25°C, 1.0±0.2 Vrms at 1kHz)

Insulation Resistance (+25°C, at 500V)

100K MΩ min. or 1000 MΩ-µF min, whichever is less

Insulation Resistance (+125°C, at 500V)

10K MΩ min. or 100 MΩ-µF min, whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

APAX

ECHNOLOGIES

, I

24842 A

IBBITTS

ALENCIA

, C

91355

661.257.7666

: 661.257.4819

WWW

APAX

ECHNOLOGIES

AGE
