PB112BB32L30QC datasheet, PDF - EEWORLD Datasheet

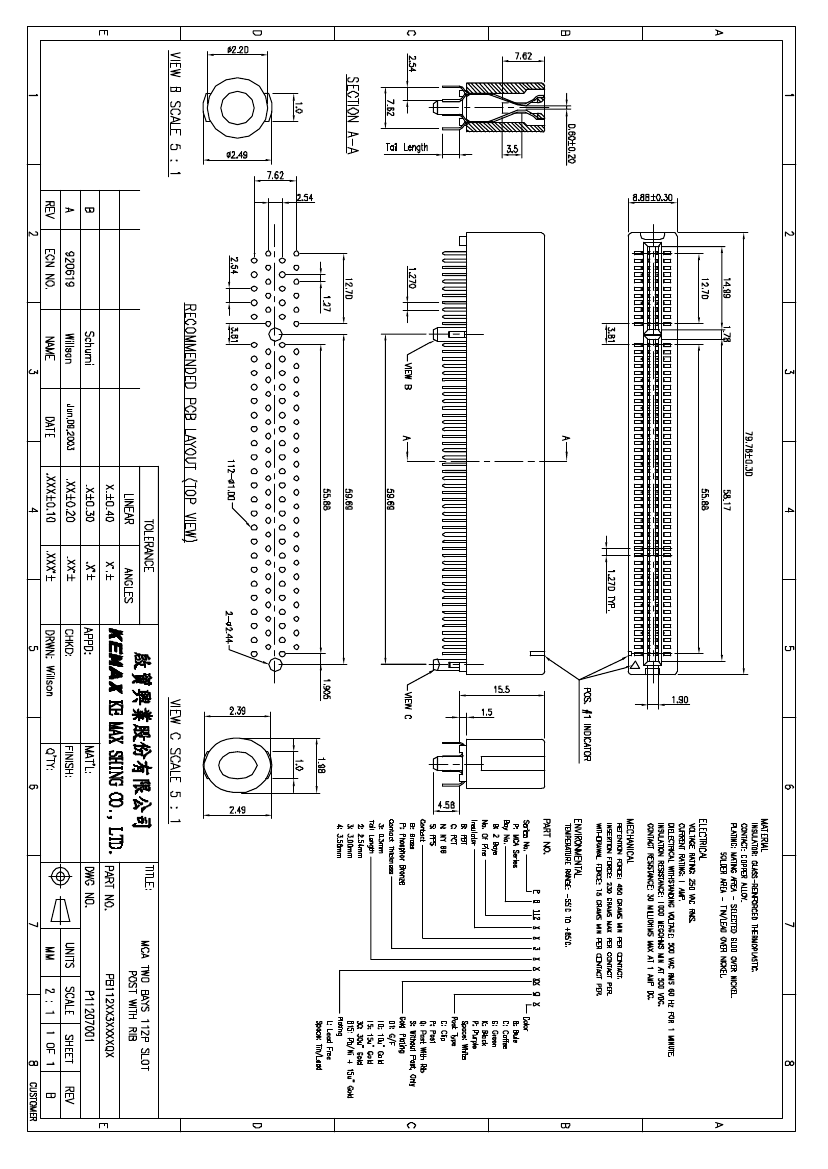

PB112BB32L30QC: DescriptionCard Edge Connector, 112 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerKemax Shing Co., Ltd.

Download Datasheet Parametric View All

PB112BB32L30QC Overview

Card Edge Connector, 112 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	1166253594
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POST WITH RIB
Board mount options	PEG
body width	0.35 inch
subject depth	0.61 inch
body length	3.14 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	1.112 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	112
Evacuation force-minimum value	.0556 N
