850212T3PYFPM134 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 850212T3PYFPM134

850212T3PYFPM134: DescriptionMIL Series Connector, 3 Contact(s), Stainless Steel/Steel, Male, Solder Terminal; CategoryThe connector The connector; File Size471KB，4 Pages; ManufacturerSealtron Inc

Download Datasheet Parametric View All

850212T3PYFPM134 Overview

MIL Series Connector, 3 Contact(s), Stainless Steel/Steel, Male, Solder Terminal

850212T3PYFPM134 Parametric

Parameter Name	Attribute value
Objectid	1143313634
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26500, POLARIZED
Back shell type	SOLID
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Mixed contacts	NO
Options	HERMETIC
Shell surface	TIN
Shell material	STAINLESS STEEL/STEEL
Housing size	12
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

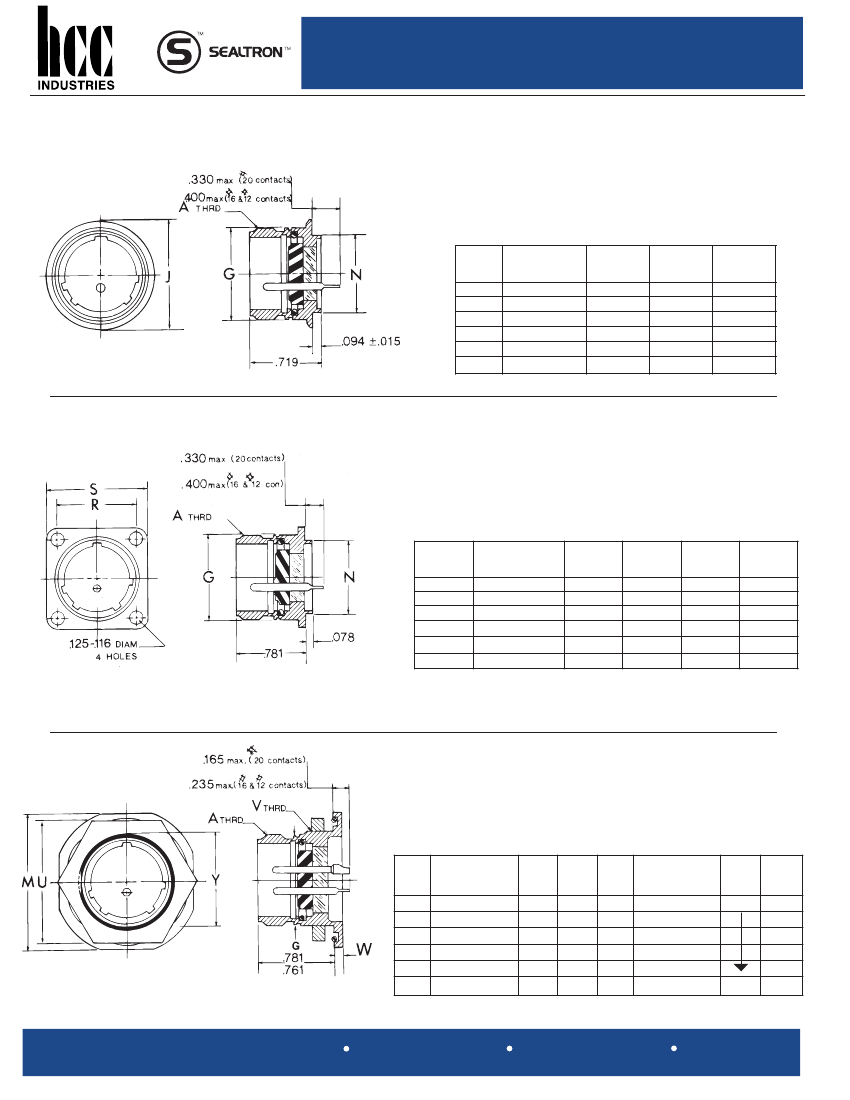

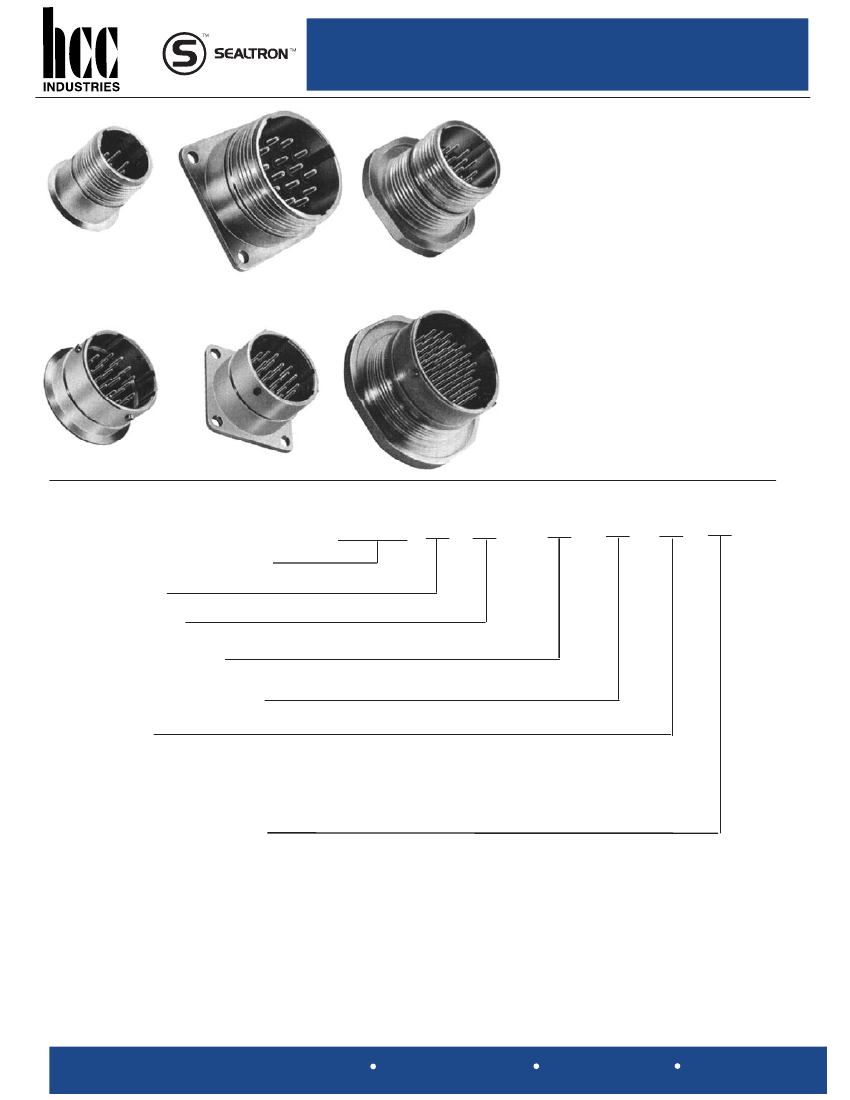

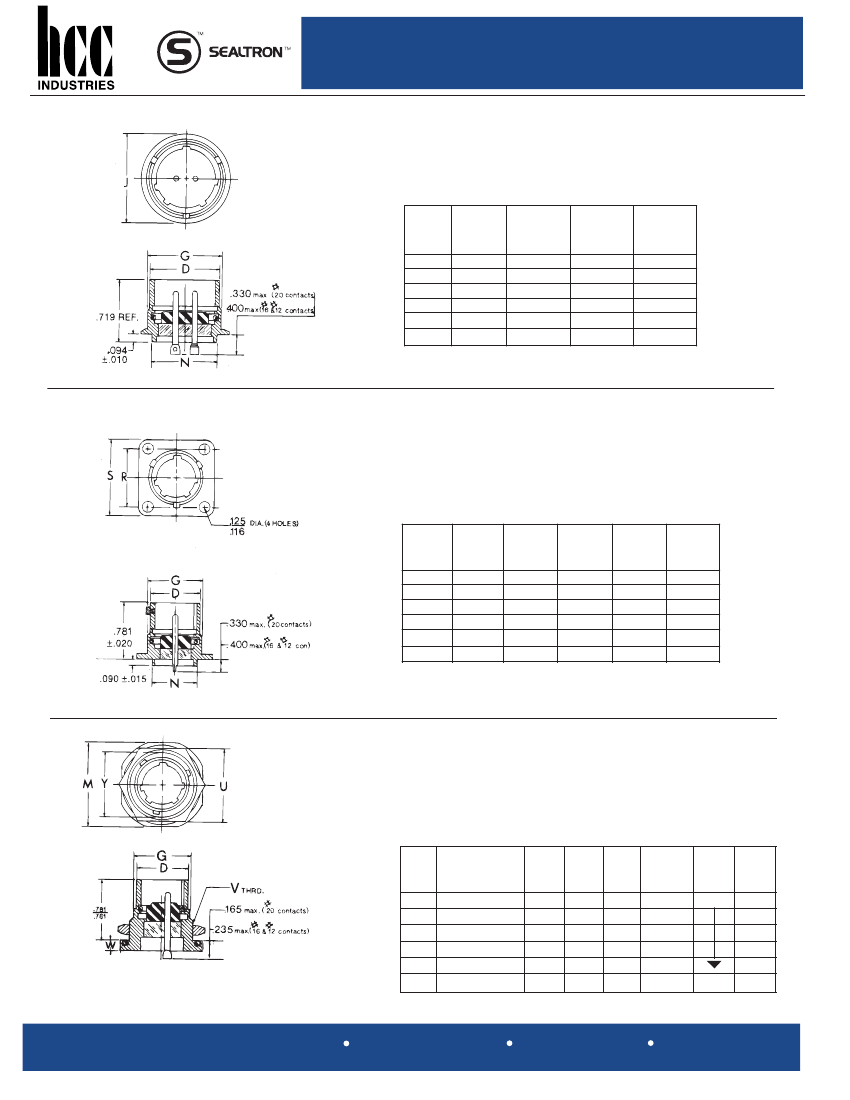

MIL-C-26500

Hermetically Sealed Connectors

Sealtron’s 8500/8600 series of hermetically

sealed connectors meet or exceed the require-

ments of MIL-C-26500. The 8521/8602 series

are dimensionally equivalent to MS27034 and

MS24265 respectively. The 8503/8603 has the

same mounting dimensions as MS24264.

MIL-C-26500 does not specify the shell materi-

al, nor does it specify the plating for the shell

and contacts for hermetic class connectors.

Sealtron offers as standard connectors, cold

rolled steel shell plated fused tin, 300 Series

passivated stainless steel shell, or300 Series

stainless steel shell plated fused tin . Either eye-

let or solder pot contacts with fused tin plating

are offered as standard. Other contact styles and

plating combinations are available for your spe-

cific needs.

Coupling Type

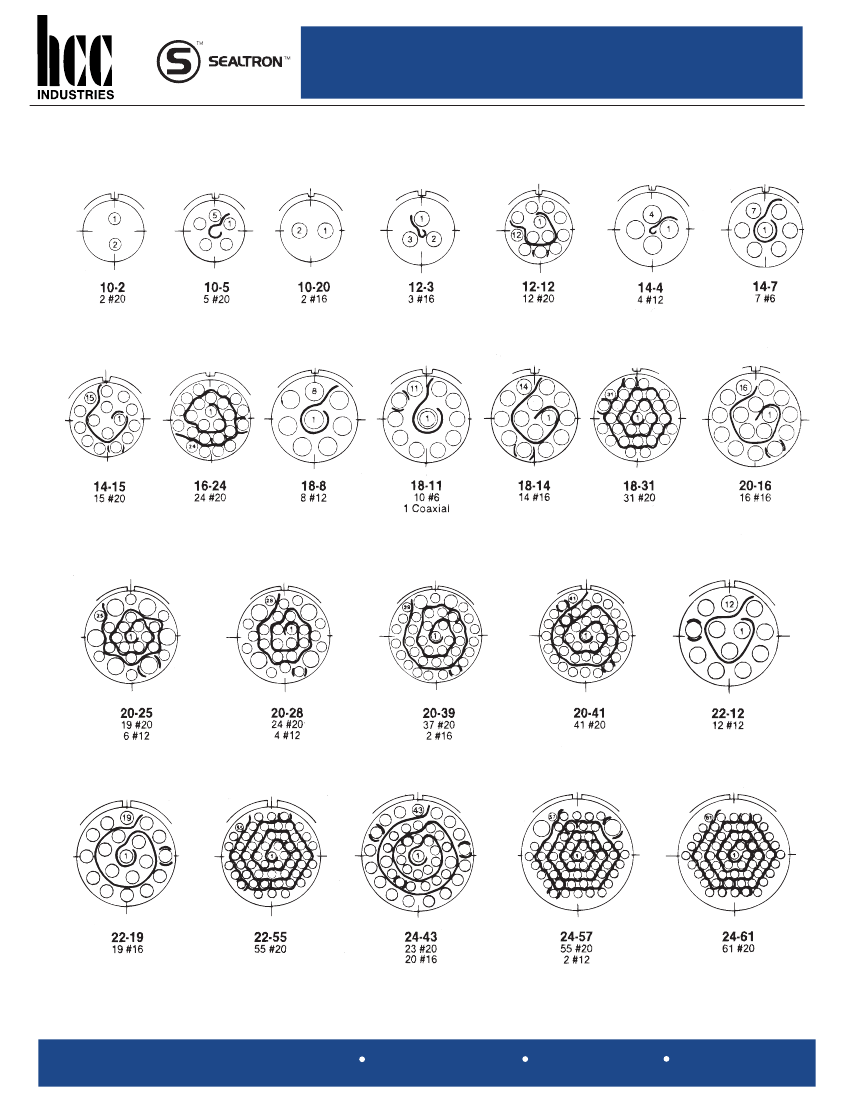

Contact Arrangement

Style

E- eyelet

C- solder cup

EXAMPLE

8602 14 B 7P9 FP M134

Shell Size

Class

MS Shell Part Number

EXAMPLE

HOW-TO-ORDER

MS 27034

KEYWAY POSITION

Pin Design

8602 Shell design

FP Flattened & Pierced

14 Shell Size

SP Solder Pot

B Bayonet Coupling

PT Pig Tail

7P Pin Arrangement

9 Alternate key Position

FP Pin Design

M134 STD. Finish: Shell fused tin over nickel. Contacts Gold Over Nickel.

M136 STD. Finish passivated C.R.E.S. Shell. Contacts Gold Over Nickel

9705 Reading Rd. Cincinnati, Ohio 45215

Phone(513) 733-8400

Fax(513)733-0131 www.sealtron.com
