VG95234
Connectors
VG95234 F
In Line Receptacle with Cable Clamp,
Bushing and Wire Sealing Grommet
Basic Part Number
Contact
Arrangement
1
- Standard AWG Contacts
(Omit for Metric)
VG95234
F
32-6
S
1
N
Alternate Insert
Positions
N-X-Y
F
- In-Line
Receptacle with
Cable Clamp and
Bushing
P
- Pin contacts
S
- Socket contacts

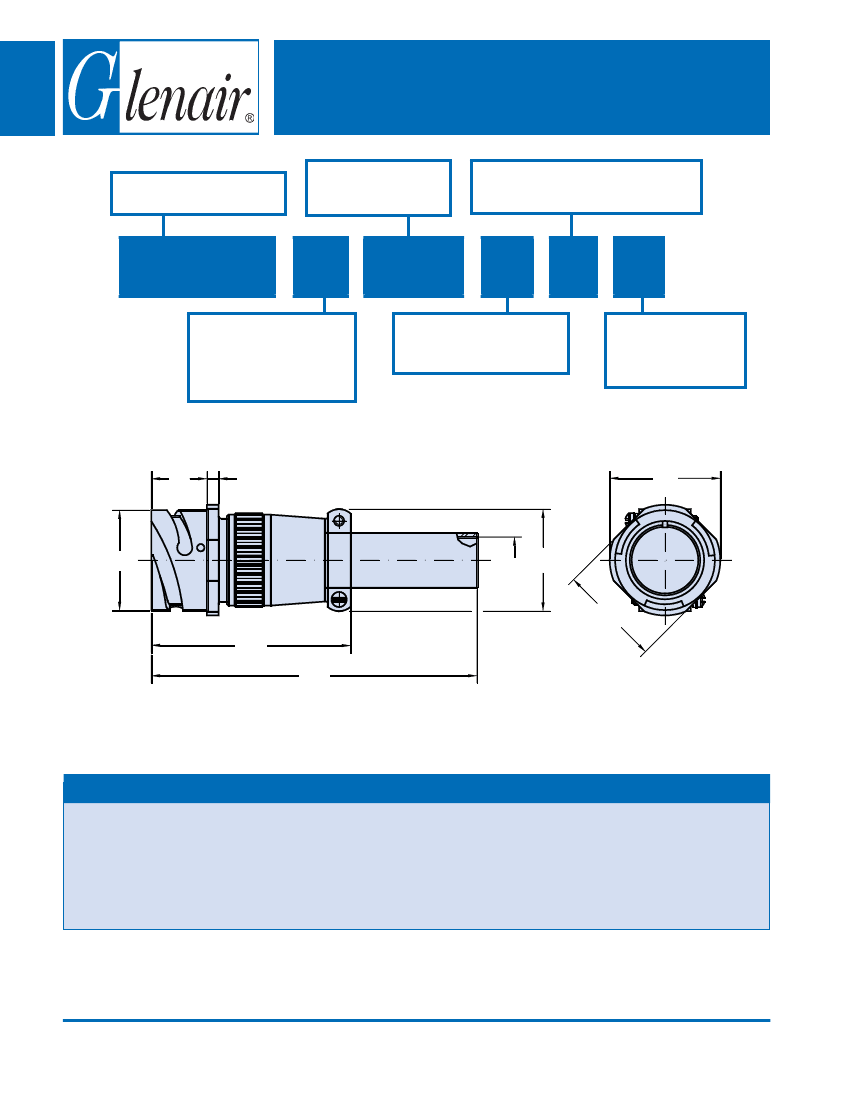

L2
L3
D1
ØA
D2
L7
L5
L1
L4
APPLICATION NOTES
1.
2.
90° Plug connector without cable clamp and bushing.
Standard crimp contact material consists of copper alloy with
silver plating. Please see pages 16-17 for additional contact
information.
Insert arrangements IAW VG95234. Please see pages 10-15.
4.
5.
6.
Standard insert is synthetic rubber, oil and low temperature
resistant (-55°C to +125°C) IAW MIL-R-3065.
Stainless steel and marine bronze shells are available in Series
ITS products. Please consult factory.
All dimensions are metric unless otherwise noted.
3.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
32
VG95234 F
In Line Receptacle with Cable Clamp,
Bushing and Wire Sealing Grommet
DIMENSIONS
Shell
Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
ØA
+0
-0.15
18.2
24.6
27.4
27.4
30.8
34.2
37.4
40.9
46.7
53.4
59.6
D1
Max
25.2
29.8
32.3
32.3
34.8
37.8
41.1
44.6
50.9
57.1
63.6
D2
Max
6.5
9.0
11.0
11.0
14.2
15.8
15.8
21.4
21.4
26.7
31.7
L1
Max
60
62
70
70
77
77
77
85
85
85
105
L2
±0.4
-0
14.2
14.2
14.2
19.0
19.0
19.0
19.0
20.6
20.6
22.2
22.2
L3
±0.2
2.8
3.2
3.2
3.2
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L4
Max
120
120
120
125
125
125
125
125
125
125
135
L5
±0.2
20.6
25.4
28.6
28.6
31.7
34.9
38.1
41.3
47.6
54.0
60.6
L7
Max
22.7
27.5
30.0
30.0
33.0
37.5
37.5
43.3
48.0
55.0
58.0
Weight
gr.
Max
35
50
60
65
80
95
105
140
160
205
270
MATERIALS
SHELLS
Aluminum Alloy
IAW QQ-A-591 Shells
Stainless Steel
Coupling Pins
Stainless Steel Spring
INSERTS (Temperature Range)
High Insulation Synthetic Rubber
-55°C/+125°C
STANDARD FINISH
(For QQ-A-591 Aluminum Shells)
Requirements
Thermal Shock
Salt Spray After
Thermal Shock
Electrical Conductivity
Abrasion Resistance
Cadmium with Olive
Drab Passivation
IAW QQ-P-416
-55°C + 125°C
500 hour
Very Good
Very Good
CRIMP CONTACTS
Copper Alloy with Silver Plating Over Nickel
