5962R9662001VEC datasheet, PDF

5962R9662001VEC: Description4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16; Categorylogic logic; File Size194KB，8 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

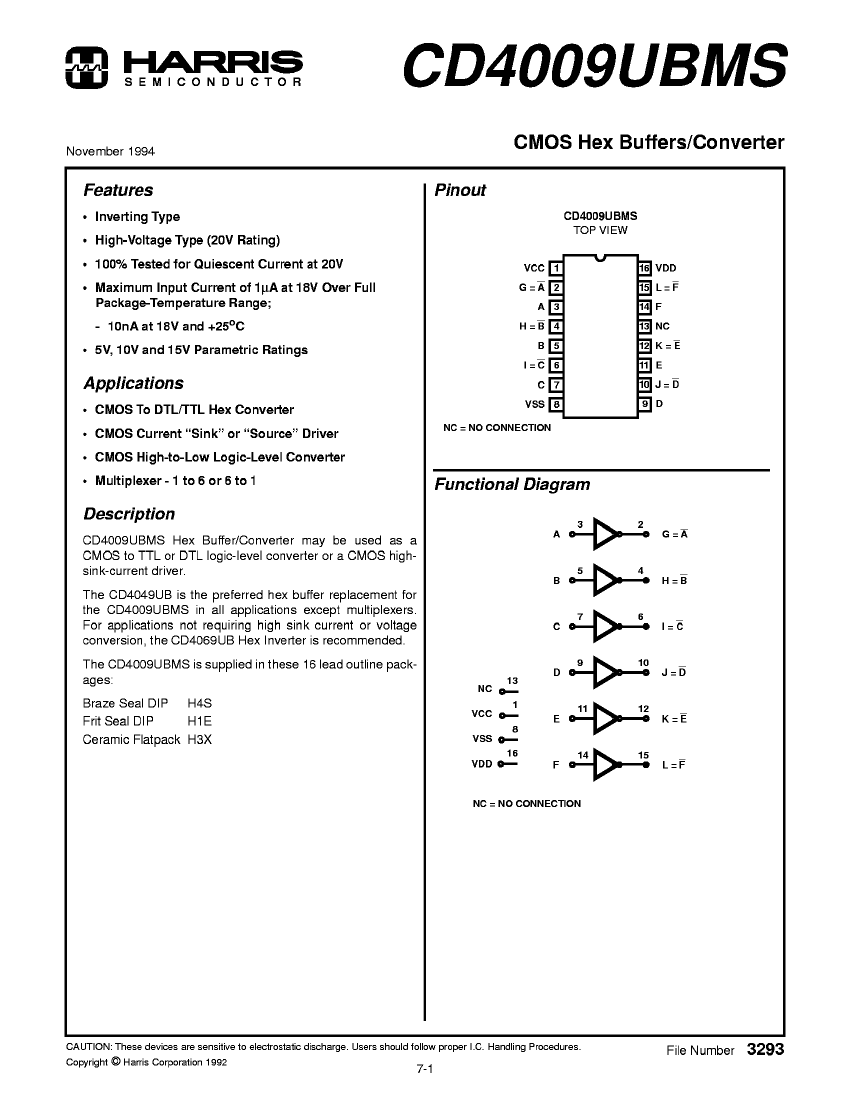

5962R9662001VEC Overview

4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16

Parameter Name	Attribute value
Objectid	1912668301
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	DUAL SUPPLY HIGH TO LOW VOLTAGE TRANSLATOR
series	4000/14000/40000
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
length	19.05 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.00375 A
Number of functions	6
Number of entries	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE

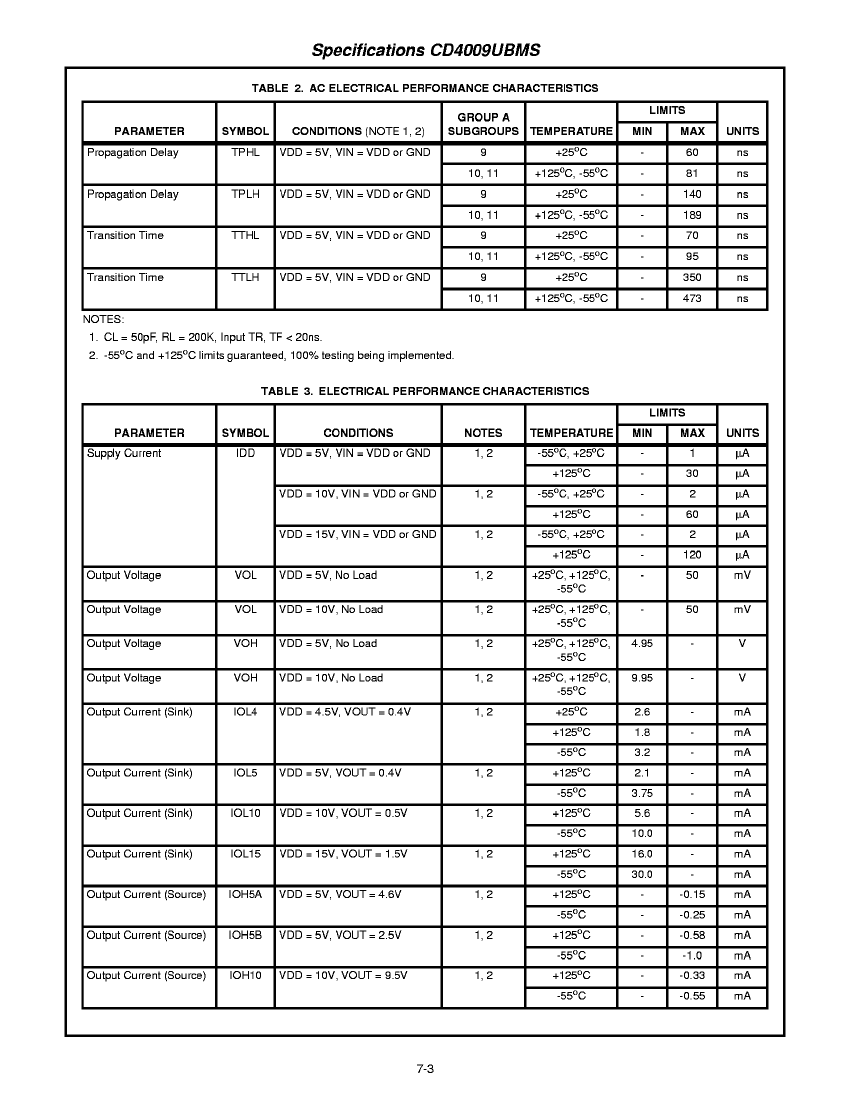

Prop。Delay @ Nom-Sup	189 ns
propagation delay (tpd)	189 ns
Certification status	Not Qualified
Schmitt trigger	NO

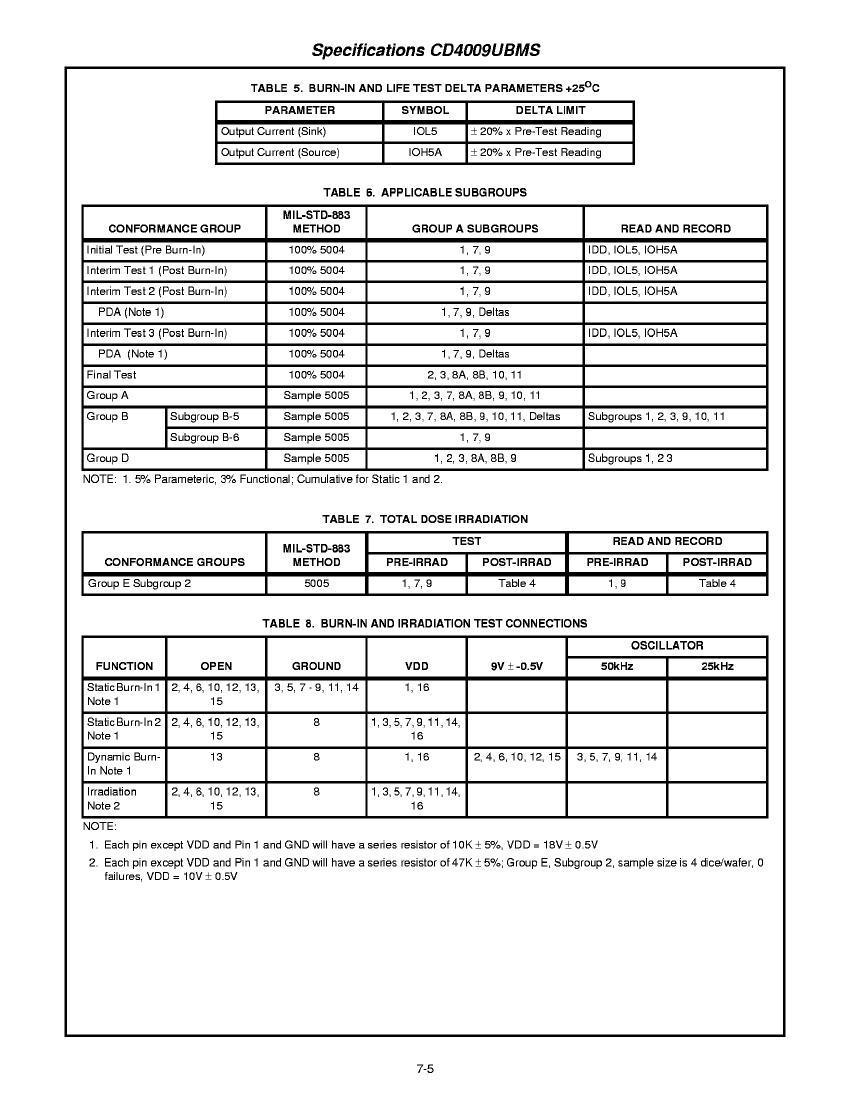

Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm

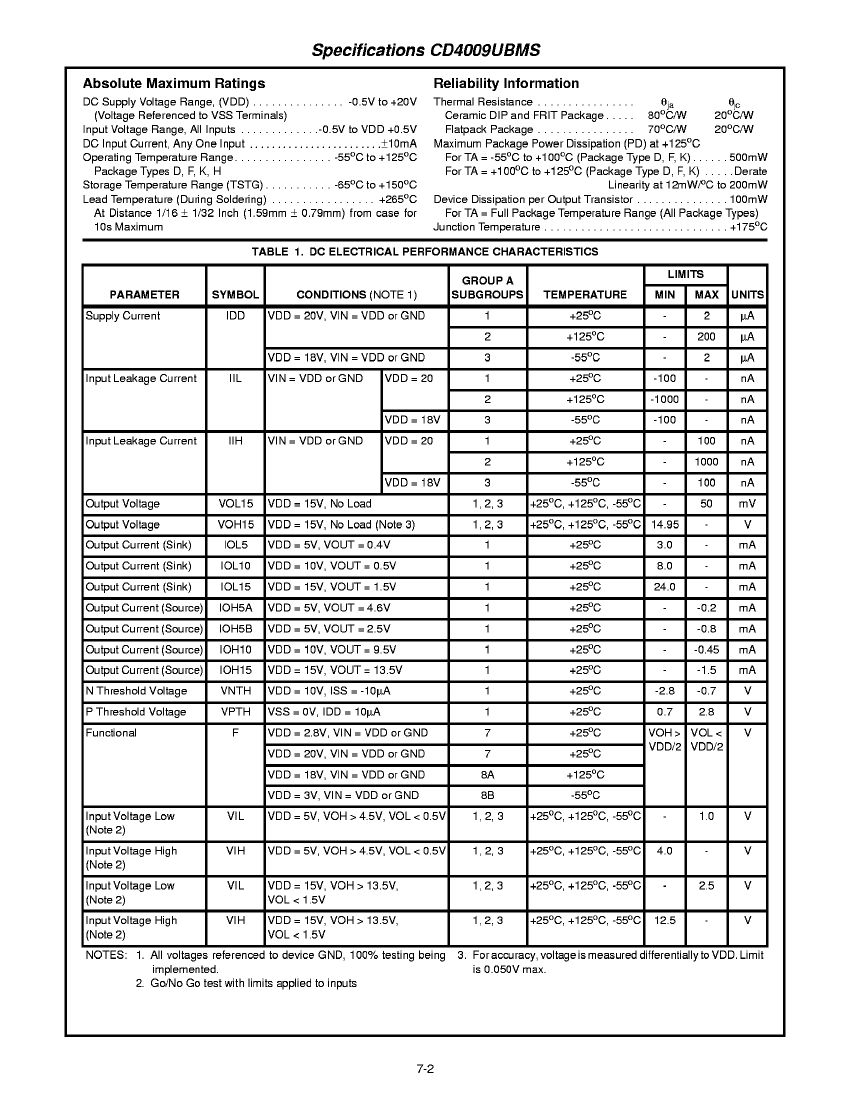

Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

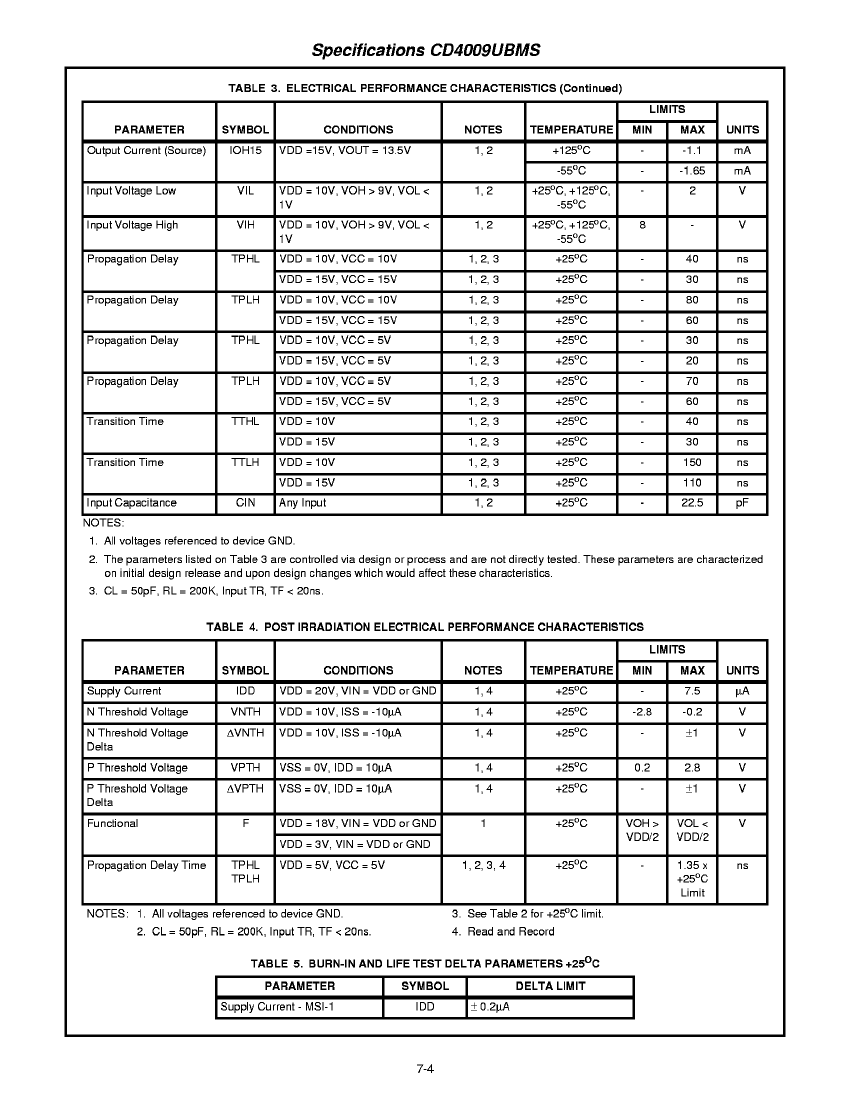

total dose	100k Rad(Si) V
width	7.62 mm
