General Purpose, Pulse and DC Transient Suppression
R76 Series Double Metallized Polypropylene Film/Foil, Radial

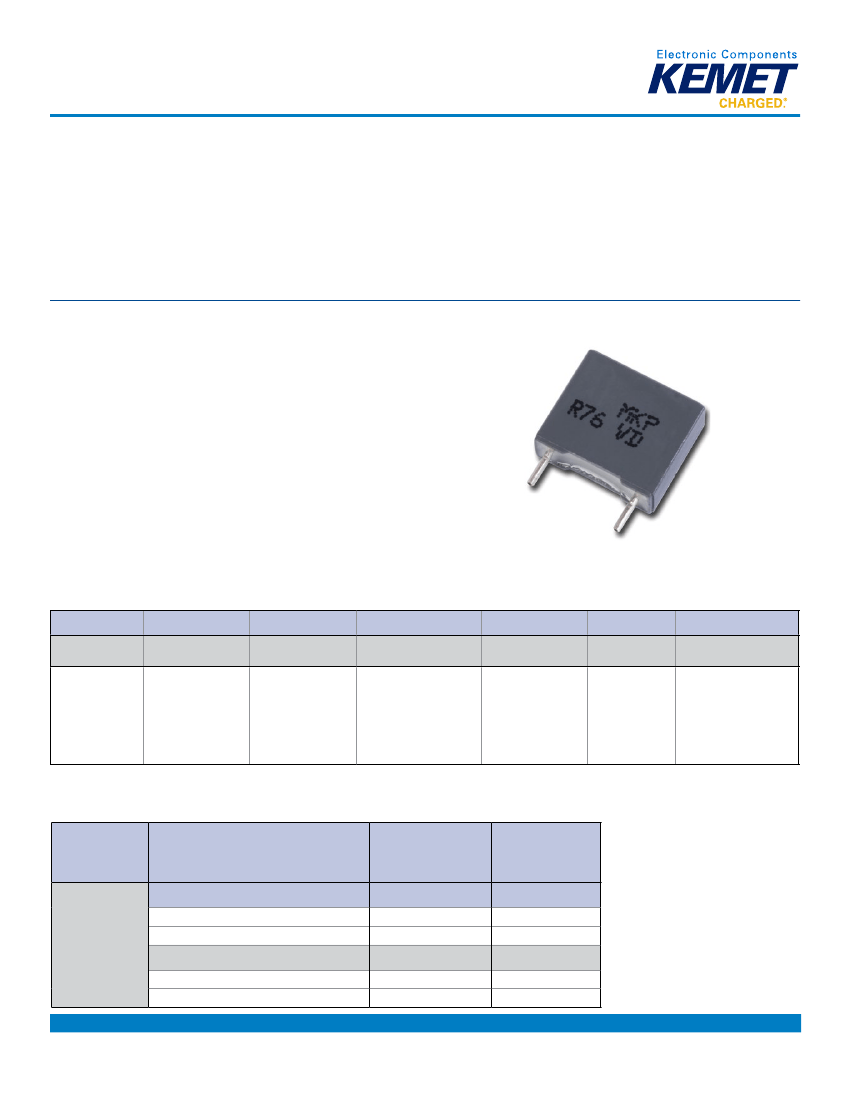

Overview
The R76 Series is a polypropylene dielectric with double-
metallized polyester film as electrodes. The capacitor is
encapsulated in self-extinguishing resin in a box of material
meeting the requirements of UL 94 V–0.
Applications
Typical applications include deflection circuits in televisions
(S-correction and flyback tuning) and monitors, switching spikes
suppression in switched mode power supplies (SMPS), lamp
capacitors for electronic ballasts and compact lamps, and
snubber and silicon-controlled rectifier (SCR) commutation
circuits as well as applications with high voltage and high current.
Benefits
•
•
•
•
•
•
•
•
•
Rated voltage: 250 – 2,000 VDC
Rated voltage: 180 – 700 VAC
Capacitance range: 0.0001 – 15 µF
Lead spacing: 7.5 – 37.5 mm
Capacitance tolerance: ±2.5% (for C ≥ 0.001 µF only),
±5%, ±10%
Climatic category: 55/105/56, IEC 60068–1
Tape and reel packaging in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Category temperature range of -55˚C to +105˚C
Part Number System
R76
Series
Metallized
Polypropylene
I
Rated Voltage (VDC)
I = 250
M = 400
P = 630
Q = 1000
T = 1600
U = 2000
D
Lead Spacing (mm)
D = 7.5
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
1680
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value.
First digit indicates the
number of zeros to be
added.
AA
Lead and
Packaging Code
See Ordering
Options Table
00
Internal Use
00, 30, 40, 70
(Standard)
H
Capacitance
Tolerance
H = ±2.5%
(for C ≥ 0.001 µF only)
J = ±5%
K = ±10%
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Lead Length
(mm)
4 +2/-0
H
0
= 18.5 +/-0.5
17 +1/-2
H
0
= 18.5 +/-0.5
Lead and
Packaging
Code
SE
DQ
Z3
GY
7.5
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 2/20/2014
1
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – R76 Series Double Metallized Polypropylene Film/Foil, Radial
Ordering Options Table cont'd
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
4 +2/-0
H
0
= 18.5 +/-0.5
17 +1/-2
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
SE
DQ
Z3
GY
CK
Lead Length
(mm)
Lead and
Packaging
Code
10
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
4 +2/-0
H
0
= 18.5 +/-0.5
25 +2/-1
30 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
4 +2/-0
SE
DQ
50
40
GY
CK
BB
15
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Tape & Reel (Large Reel)
Pizza Pack
Standard Lead and Packaging Options
Bulk (Tray) – Straight Leads
Ammo Pack
4 +2/-0
H
0
= 18.5 +/-0.5
25 +2/-1
30 +5/-0
H
0
= 18.5 +/-0.5
4 +2/-0
SE
DQ
50
40
CK
BB
22.5
Other Lead and Packaging Options
Bulk (Tray) – Long Leads
Bulk (Tray) – Max Length Leads
Tape & Reel (Large Reel)
Pizza Pack
Standard Lead and Packaging Options
Bulk (Tray) – Straight Leads
4 +2/-0
25 +2/-1
30 +5/-0
H
0
= 18.5 +/-0.5
SE
50
40
CK
27.5
Other Lead and Packaging Options
Bulk (Tray) – Long Leads
Bulk (Tray) – Max Length Leads
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
37.5
Tray– Short Leads
Other Lead and Packaging Options
Tray– Long Leads
Tray– Max Length Leads
4 +2/-0
25 +2/-1
30 +5/-0
0
50
40
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 2/20/2014
2
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – R76 Series Double Metallized Polypropylene Film/Foil, Radial
Dimensions – Millimeters
L
H
d
p
LL
B
p
Nominal
7.5
7.5
7.5
7.5
10
10
10
15
15
15
15
15
15
15
15
15
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
3
4
5
6
4
5
6
4
5
6
7.5
8.5
9
10
11
13
6
7
8.5
10
11
13
9
11
13
13
14
18
22
11
13
16
19
20
24
30
B
Tolerance
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
Nominal
8
9
10.5
12
9
11
12
10
11
12
13.5
14.5
12.5
16
19
12
15
16
17
18.5
20
22
17
20
22
25
28
33
37
22
24
28.5
32
40
44
45
H
Tolerance
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
Nominal
10
10
10
10.5
13
13
13
18
18
18
18
18
18
18
18
18
26.5
26.5
26.5
26.5
26.5
26.5
32
32
32
32
32
32
32
41.5
41.5
41.5
41.5
41.5
41.5
41.5
L
Tolerance
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
Nominal
0.5
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1
1
1
1
1
1
1
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 2/20/2014
3
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – R76 Series Double Metallized Polypropylene Film/Foil, Radial
Performance Characteristics
Sections
Voltage Range (VDC)
Voltage Range (VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Category Temperature Range
Voltage Derating
Climatic Category
Self-Inductance L
(Lead Length ~ 2 mm)
1
250
180
0.0068 – 15
1
400
250
0.0027 – 8.2
1
630
250
0.00068 –
0.012
2
630
400
0.00039 – 5.6
2
1000
400
0.00022 –
0.0033
2
1000
600
0.00047 – 2.2
2
1600
650
0.0033 – 1.2
2
2000
700
0.0001 – 0.68
In accordance with IEC E12 series
±2.5% (for C ≥ 1,000 pF only), ±5%, ±10%
-55°C to +105°C
The following decreasing factor has to be applied on the rated voltage:
+85°C to +105°C: 1.25% per °C for V
R
(DC)
+75°C to +105°C: 1.35% per °C for V
R
(AC)
IEC 60068–1, 55/105/56
Lead Spacing (mm)
L (nH) ≈
7.5
8
10
9
15
10
22.5
18
27.5
18
37.5
20
Measured at 25°C ± 5°C
C ≤ 0.1 µF
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
0.0003
0.0004
0.0015
Measured at +25°C, 100 VDC 60 seconds
Insulation Resistance
Minimum Values Between Terminals
C ≤ 0.33 µF
C > 0.33 µF
Test Voltage Between
Terminals
1.6 x V
R
applied for 2 seconds at 25°C ±5°C
≥ 100,000 MΩ
≥ 30,000 MΩ • µF
0.1 µF < C ≤ 1.0 µF
0.0003
0.0006
–
C > 1.0 µF
0.0004
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 2/20/2014
4
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – R76 Series Double Metallized Polypropylene Film/Foil, Radial

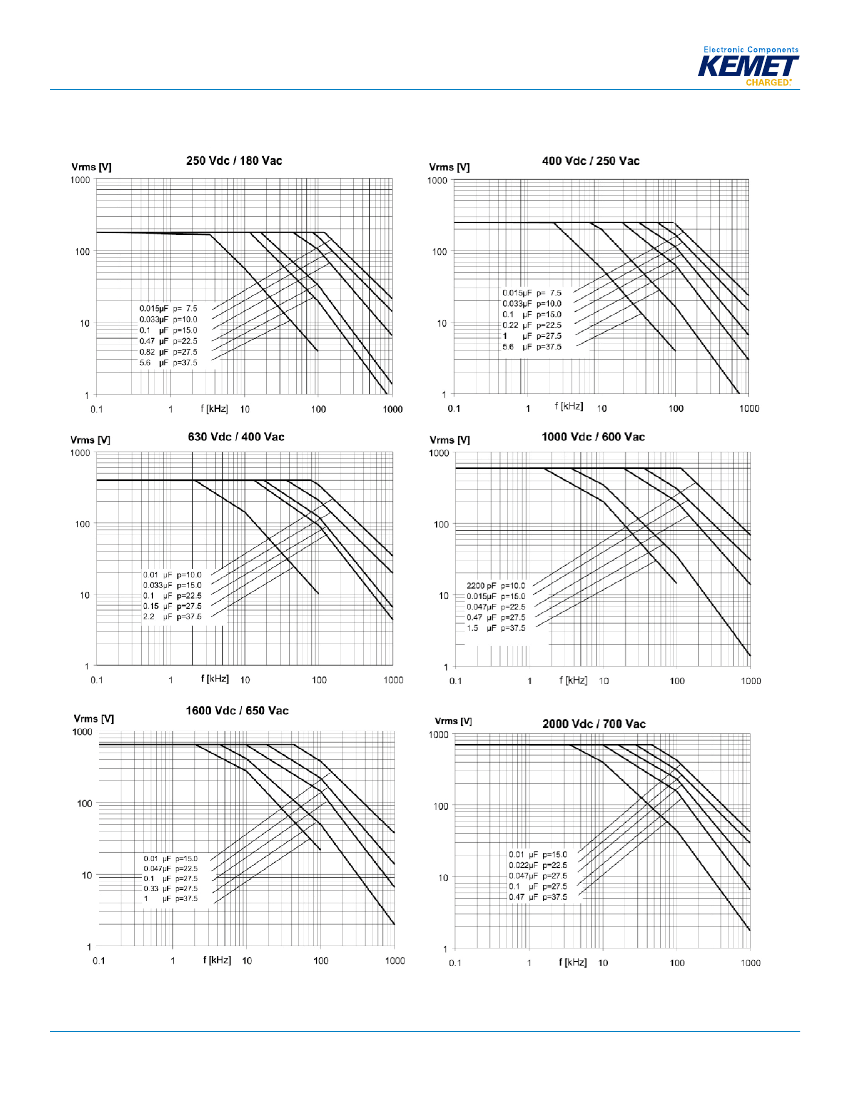

Maximum Voltage (V
rms
) vs. Frequency (Sinusoidal Waveform/T ≤ 40ºC)
