501-501-8000N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 501-501-8000N

Preview

501-501-8000N: DescriptionRF Connector Adapter, SMC-SMC, Panel Mount, Male-Male, Jack; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

501-501-8000N Overview

RF Connector Adapter, SMC-SMC, Panel Mount, Male-Male, Jack

501-501-8000N Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Adapter type	SMC-SMC
Other features	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	TEFLON
MIL compliance	YES
Manufacturer's serial number	IN
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

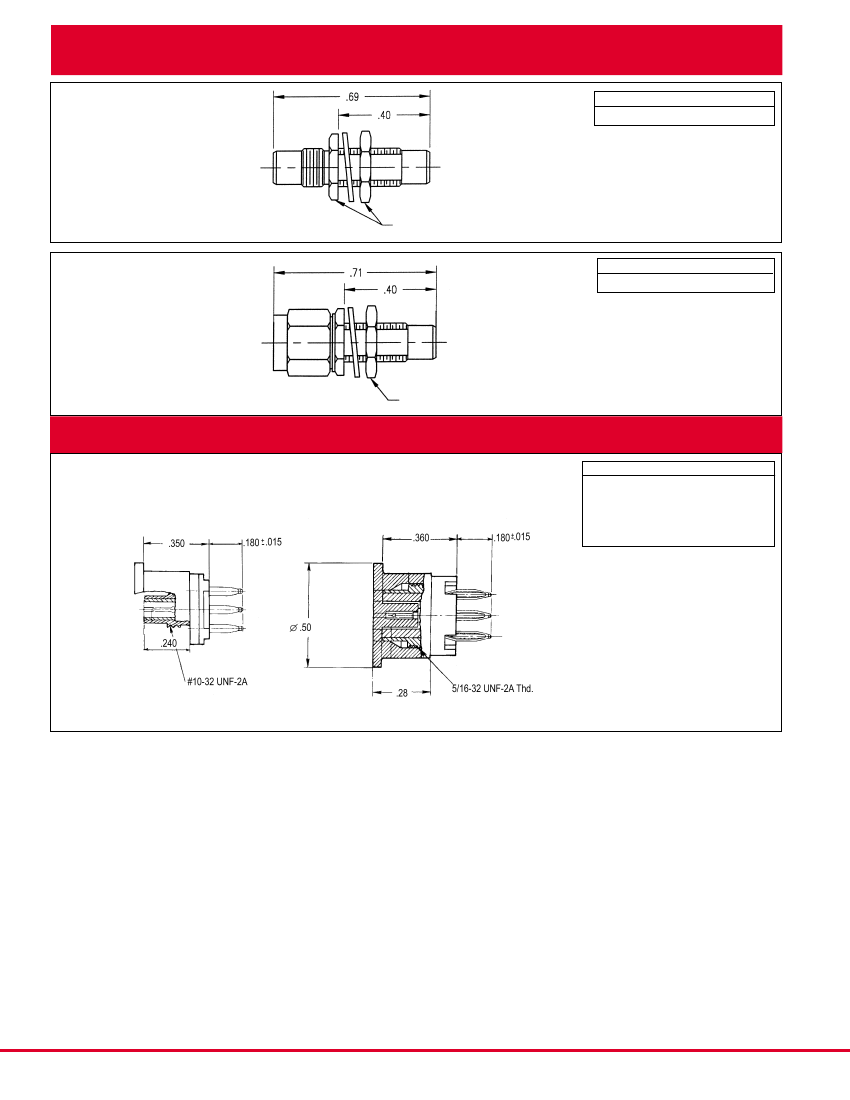

SMC:

In-Series Adapters

Part Number

Mounting Hole

501-501-8000H

No. 060 B

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Jack /

Bulkhead

Jack

1/4 HEX

Plug /

Bulkhead

Jack

Part Number

Mounting Hole

500-501-8000H

No. 060 B

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

1/4 HEX

SMC Brass:

Screw-on

Connectors

50 & 75 Ohm C-Press® Press-fit

Part Number

50 Ohm: 121-27341-1 without CAP

121-27341-2 with CAP

75 Ohm: 121-10349-1 with CAP

121-10349-2 without CAP

• See page 84 for mounting hole layout.

• Part number shown is for gold plated.

75 Ohm

50 Ohm

• C-Press® is a registered trademark of Litton Systems, Inc.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/40

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

501-501-8000N Related Products

	501-501-8000N	501-501-8000H	500-501-8000H	500-501-8000N
Description	RF Connector Adapter, SMC-SMC, Panel Mount, Male-Male, Jack	RF Connector Adapter, SMC-SMC, Panel Mount, Male-Male, Jack	RF Connector Adapter, SMC-SMC, Panel Mount, Female-Male, Jack	RF Connector Adapter, SMC-SMC, Panel Mount, Female-Male, Jack
Maker	Winchester Electronics	Winchester Electronics	Winchester Electronics	Winchester Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown
Adapter type	SMC-SMC	SMC-SMC	SMC-SMC	SMC-SMC
Other features	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ
Body/casing type	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE	MALE-MALE	FEMALE-MALE	FEMALE-MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	YES	YES	YES	YES
Manufacturer's serial number	IN	IN	IN	IN
Maximum operating frequency	10 GHz	10 GHz	10 GHz	10 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES
Base Number Matches	1	1	1	1
