BD09AV2: DescriptionSLIDE DIP SWITCH-9SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size66KB，2 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

BD09AV2 Overview

SLIDE DIP SWITCH-9SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

BD09AV2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.035 inch
Actuator material	GLASS FILLED NYLON, UL 94V-O
Actuator type	SLIDE
Other features	ROHS COMPLIANT, 20 PCS/TUBE
body width	7.11 mm
body height	9.65 mm
Body length or diameter	24.89 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@5VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	500VRMS V
Electrical life	10000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
Manufacturer's serial number	BD
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	9
Number of switching segments	9
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	18
method of packing	TUBE
Solderability	MIL-STD
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal length	0.115 inch
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

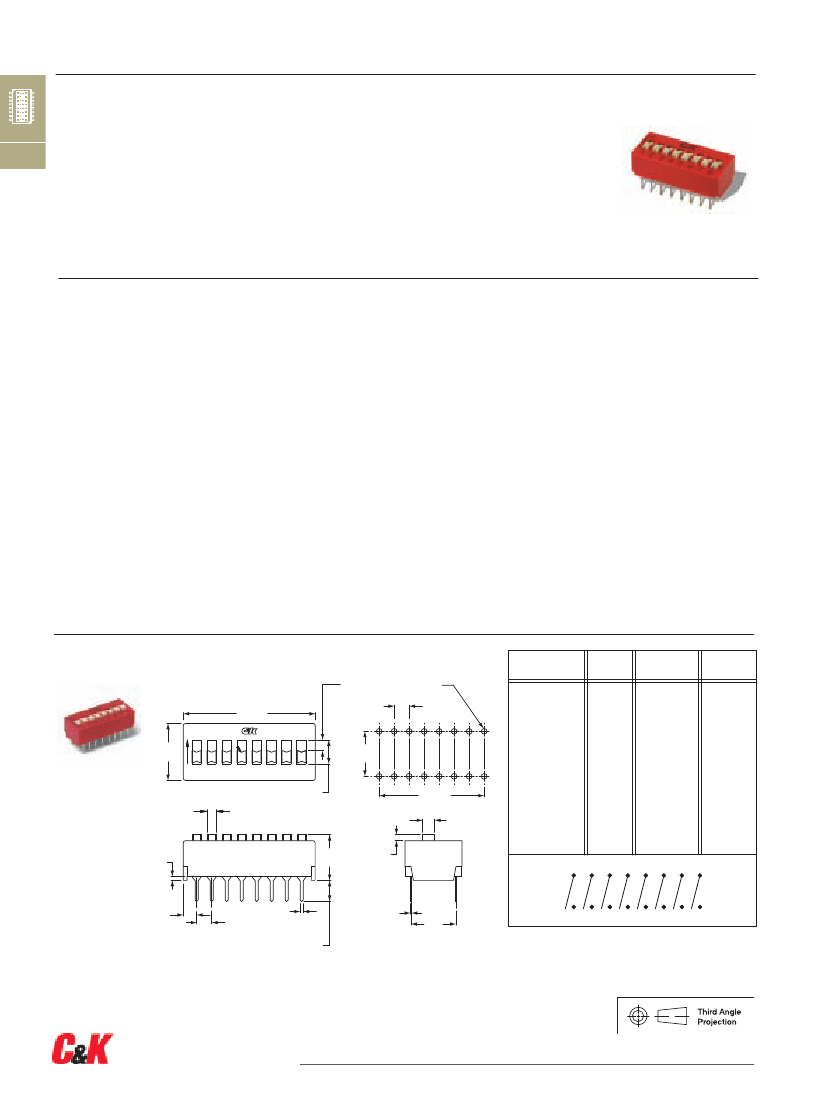

BD Series

Standard Profile DIP Switches

Features/Benefits

•

Traditional full profile DIP switch

•

Extended actuator for easy actuation

•

Open bottom construction allows for

solder washing without the need

for tape seal

•

RoHS compliant

Typical Applications

•

Address switch for industrial con-

trols

•

Logic switching for computers and

peripherals

•

Function controlling for

numerous applications

DIP

Specifications

SWITCH FUNCTION: SPST - 1 thru 12 position available

(except 11 position).

CONTACT RATING:

Carry: 100 mA max. @ 50 V DC.

Switch: 100 mA max. @ 5 V DC or 25 mA max. @ 25 V DC.

MECHANICAL AND ELECTRICAL LIFE: 10,000 make-and-break

cycles at full load, each circuit.

CONTACT RESISTANCE: Below 50 milliohms typ. initial

@ 2-4 V DC 100mA.

INSULATION RESISTANCE: 10

ohms min.

DIELECTRIC STRENGTH: 500 V RMS min. @ sea level between

adjacent terminals.

CAPACITANCE: 5pF max. between adjacent terminals.

STORAGE & OPERATING TEMPERATURE: -40°C to 85°C.

SHOCK: Withstands 20g 11 ms sawtooth waveform with no con-

tact opening greater than 10 microseconds.

VIBRATION: No contact opening greater than 10 microseconds and no

contact closure when exposed to vibration .06 in DA or 5g,

whichever is less, from 10 to 55 Hz, and 10g from 55 to 500 Hz.

SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E

method 9 (1 hour steam aging).

PACKAGING: Switches supplied in rigid dispensing tubes in full-tube

quantities only: this may effect order quantity. Number of switches

per tube varies with model. Switch position 1 denotes pin number

1. All switch actuators in ‘OFF’ position, standard.

Materials

CASE & COVER: Glass filled polyester (PBT),

flame retardant (UL 94V-0).

ACTUATOR: Glass filled nylon 6/6, flame retardant,

heat stabilized (UL 94V-0)

CONTACTS: Gold over nickel over phosphor bronze.

TERMINALS: Matte-tin over nickel over phosphor bronze.

Note:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

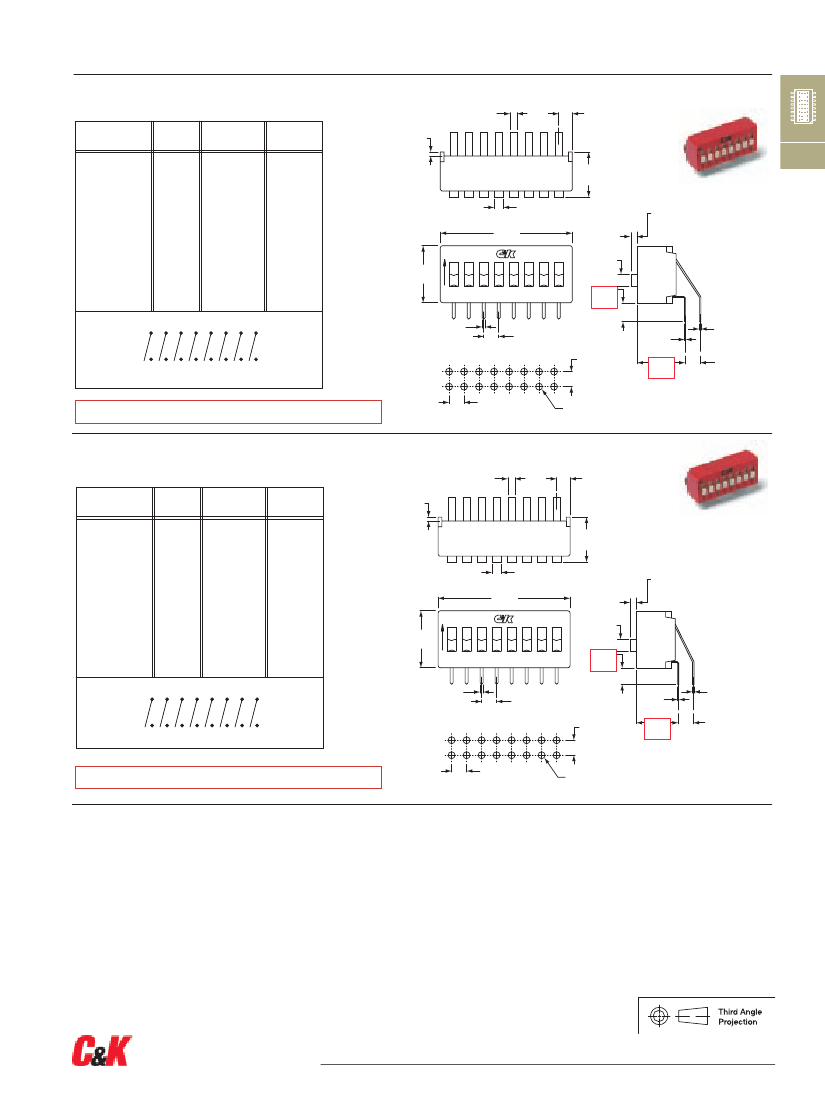

Vertical Full Profile DIP

PART NUMBER

.072

(1,83)

ACTUATOR

TRAVEL

Ø.038 TYP.

(0,97)

.100 TYP.

(2,54)

NO.POS.

DIM. ‘A’

.180 (4,57)

.280 (7,11)

.380 (9,65)

.480 (12,19)

.580 (14,73)

.680 (17,27)

.780 (19,81)

.880 (22,35)

.980 (24,89)

1.080 (27,43)

1.280 (32,51)

QUANTITY

PER TUBE

115

DIM 'A'

.380

(9,65)

.300

(7,62)

BD08

DIM 'B'

.080 TYP.

(2,03)

.300

(7,62)

.035

(0,9)

TYP.

.160 TYP.

(4,06)

.060 TYP.

(1,52)

BD01

BD02

BD03

BD04

BD05

BD06

BD07

BD08

BD09

BD10

BD12

Schematic

.026

(0,66)

.090

(2,29)

.100 TYP.

(2,54)

.020 TYP.

(0,51)

.141 TYP.

(3,58)

.007

(0,18)

SPST

.300

(7,62)

Dimensions are shown: Inch (mm )

Specifications and dimensions subject to change

I-14

www.ck-components.com

BD09AV2 Related Products

	BD09AV2	BD07AV2	BD10AV2	BD03AV2
Description	SLIDE DIP SWITCH-9SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	SLIDE DIP SWITCH-7SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	SLIDE DIP SWITCH-10SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	SLIDE DIP SWITCH-3SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	C&K	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator length	0.035 inch	0.035 inch	0.035 inch	0.035 inch
Actuator material	GLASS FILLED NYLON, UL 94V-O	GLASS FILLED NYLON, UL 94V-O	GLASS FILLED NYLON, UL 94V-O	GLASS FILLED NYLON, UL 94V-O
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE
Other features	ROHS COMPLIANT, 20 PCS/TUBE	ROHS COMPLIANT, 26 PCS/TUBE	ROHS COMPLIANT, 18PCS/TUBE	ROHS COMPLIANT, 52PCS/TUBE
body width	7.11 mm	7.11 mm	7.11 mm	7.11 mm
body height	9.65 mm	9.65 mm	9.65 mm	9.65 mm
Body length or diameter	24.89 mm	19.81 mm	27.43 mm	9.65 mm
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@5VDC	.1A@5VDC	.1A@5VDC	.1A@5VDC
Contact function	OFF-ON	OFF-ON	OFF-ON	OFF-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	5 V	5 V	5 V	5 V
Dielectric withstand voltage	500VRMS V	500VRMS V	500VRMS V	500VRMS V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
End contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e3	e3	e3	e3
Manufacturer's serial number	BD	BD	BD	BD
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Number of positions	9	7	10	3
Number of switching segments	9	7	10	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	18	14	20	6
method of packing	TUBE	TUBE	TUBE	TUBE
Solderability	MIL-STD	MIL-STD	MIL-STD	MIL-STD
surface mount	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED
switch function	SPST	SPST	SPST	SPST
Switch type	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal length	0.115 inch	0.115 inch	0.115 inch	0.115 inch
Terminal material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
