Part Number

Search

BAT66

Description
Rectifier Diode, Schottky, 1 Element, Silicon
CategoryDiscrete semiconductor    diode
File Size145KB,3 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

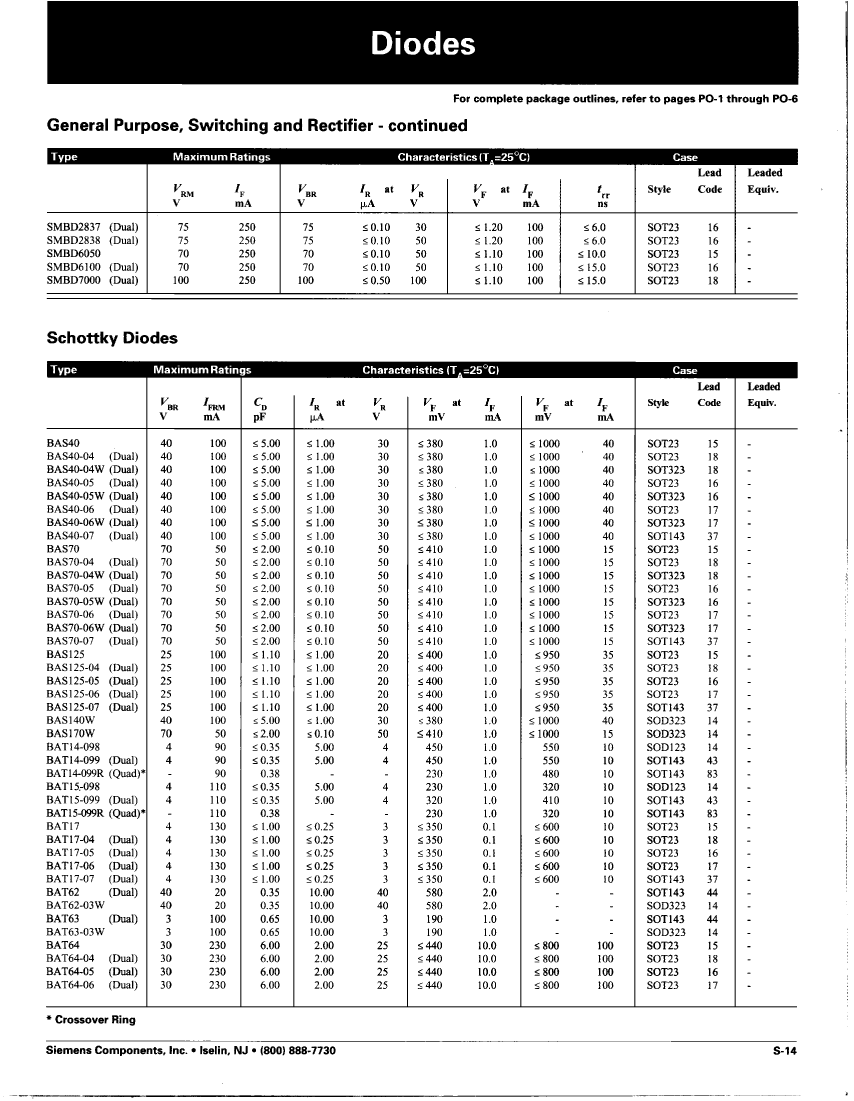

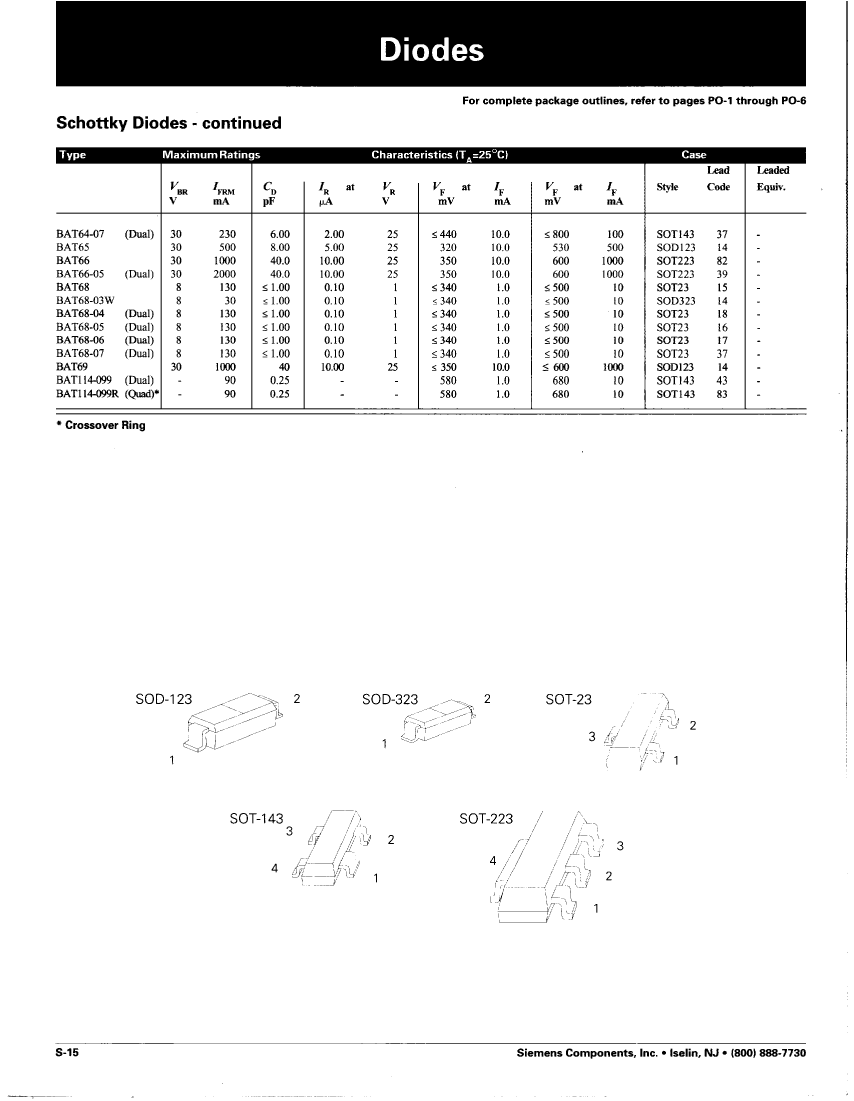

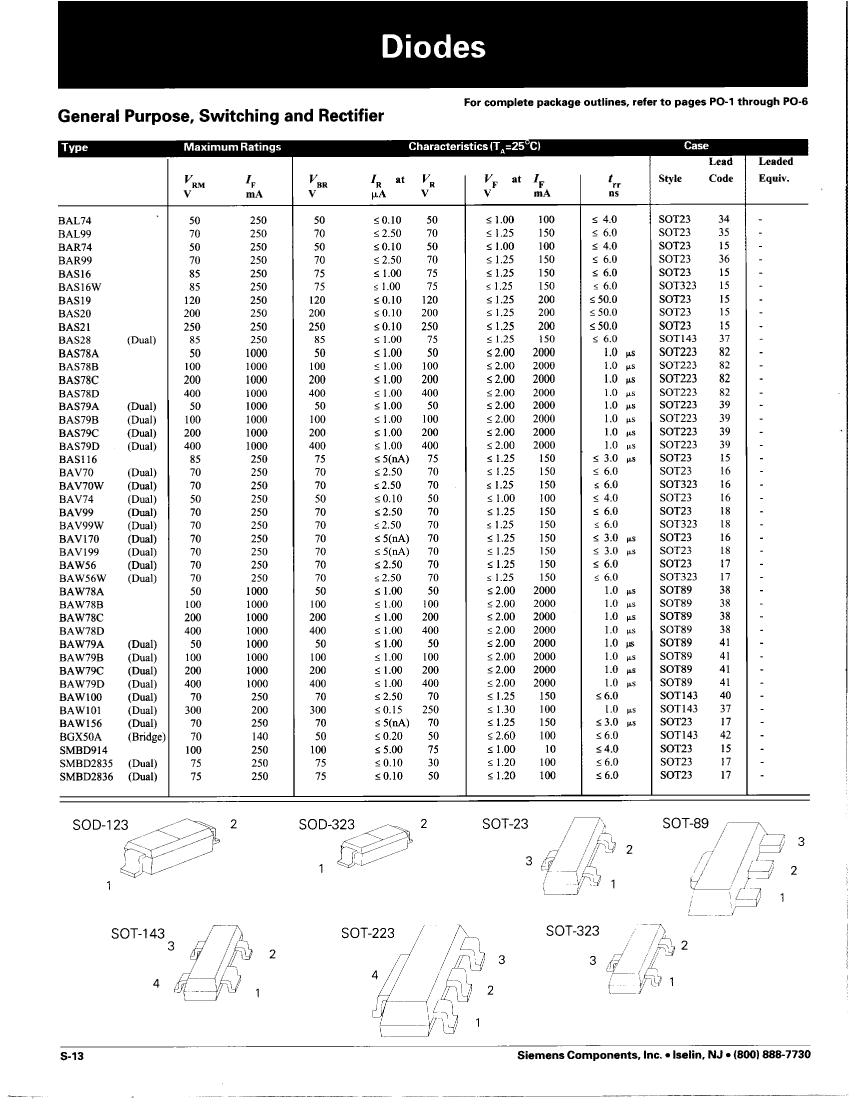

BAT66 Overview

Rectifier Diode, Schottky, 1 Element, Silicon

BAT66 Parametric

Parameter NameAttribute value
MakerSIEMENS
package instructionR-PDSO-G4
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.6 V
JESD-30 codeR-PDSO-G4
Number of components1
Number of terminals4
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum reverse current10 µA
surface mountYES
technologySCHOTTKY
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1

BAT66 Related Products

BAT66 BAT69
Description Rectifier Diode, Schottky, 1 Element, Silicon Rectifier Diode, Schottky, 1 Element, Silicon
package instruction R-PDSO-G4 R-PDSO-G2
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.6 V 0.6 V
JESD-30 code R-PDSO-G4 R-PDSO-G2
Number of components 1 1
Number of terminals 4 2
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified
Maximum reverse current 10 µA 10 µA
surface mount YES YES
technology SCHOTTKY SCHOTTKY
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
Base Number Matches 1 1
