3.2x1.6mm SMD CHIP LED LAMP
Part Number: KPTR-3216ZGC
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
3.2mmx1.6mm SMT LED,1.05mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Vavrious colors and lens types available.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Description
The Green source color devices are made with InGaN
on Sapphire Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

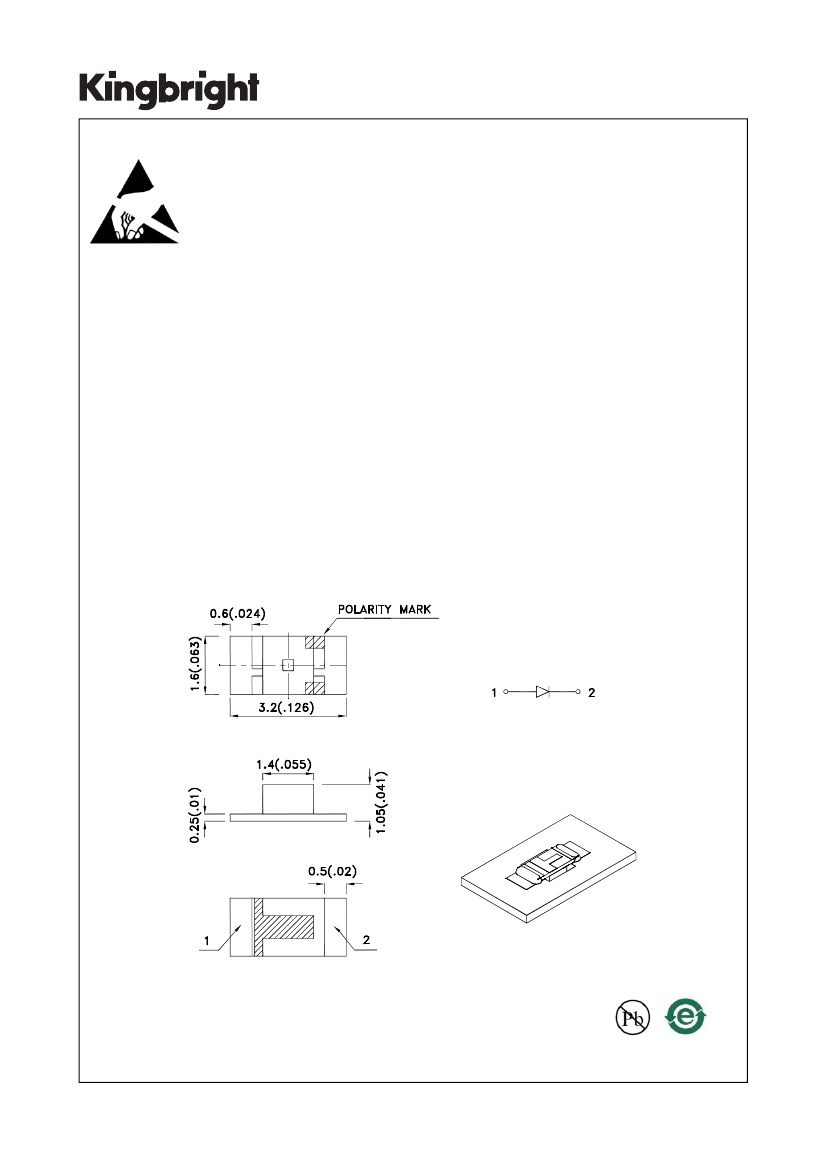

Package Dimensions
K
g
in
ig
r
b
t
h
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH5761
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: APR/01/2013
DRAWN: F.Cui
PAGE: 1 OF 5
ERP: 1203003785
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KPTR-3216ZGC
Green (InGaN)
Water Clear
200
Typ.
400
Viewing
Angle [1]
2θ1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
3. Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Typ.
515
Max.
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
K
g
in
Green
Green
ig
r
b
525
30
45
3.3
Green
102.5
25
150
5
-40°C To +85°C
-40°C To +85°C
t
h
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
4.1
50
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Units
mW
mA
mA
V
SPEC NO: DSAH5761
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: APR/01/2013
DRAWN: F.Cui
PAGE: 2 OF 5
ERP: 1203003785

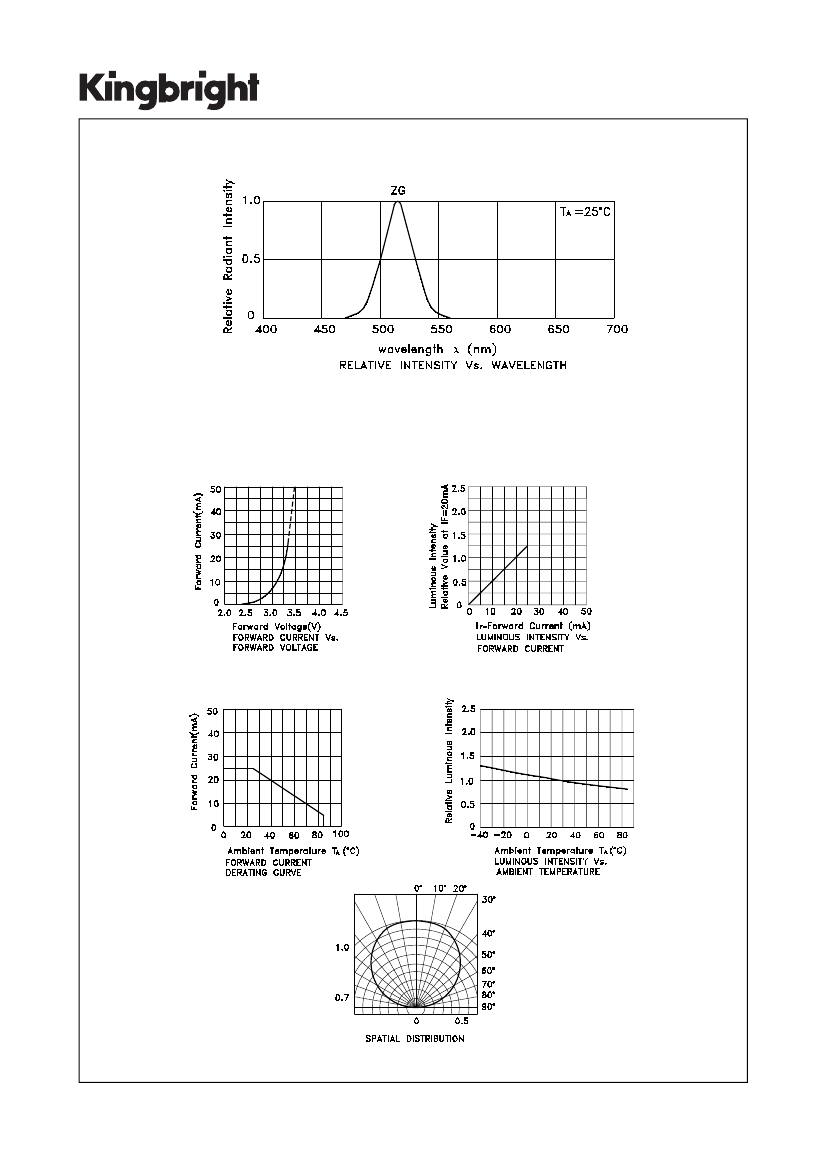

KPTR-3216ZGC

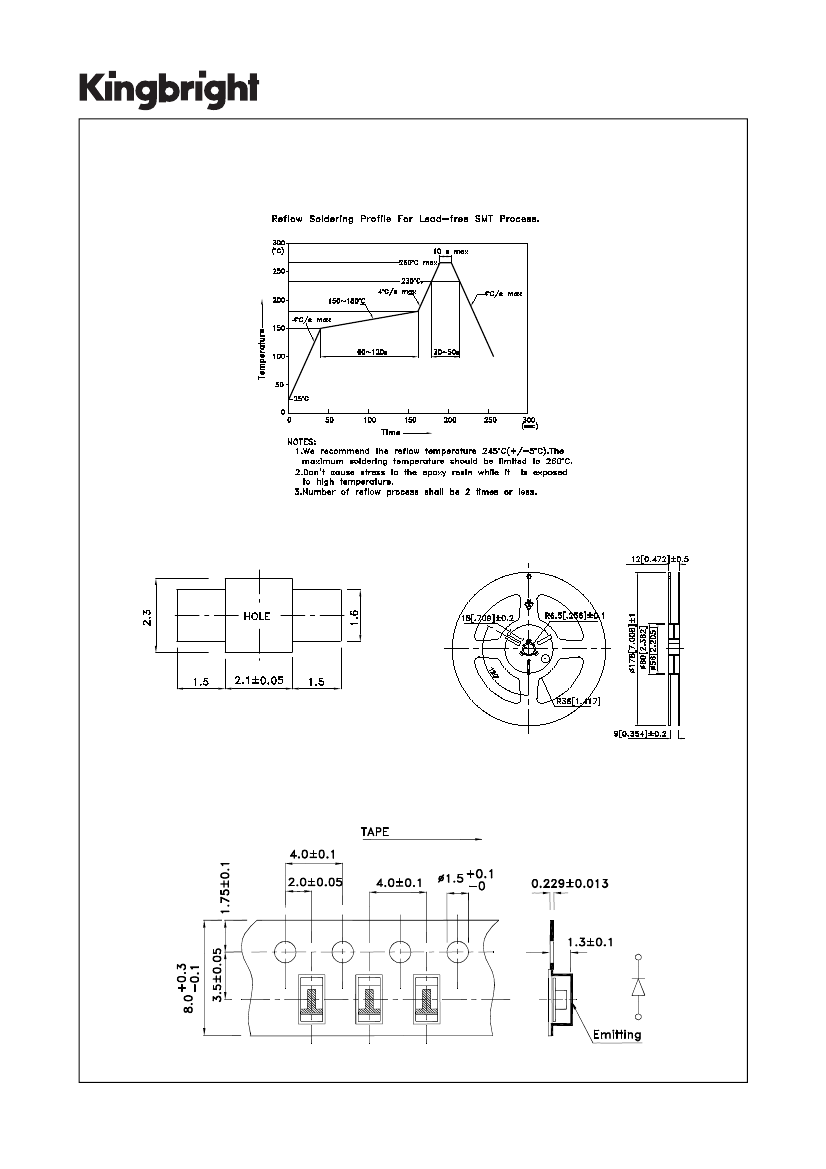

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Dimensions
(Units : mm)
K
g
in
ig
r
b
Reel Dimension
t
h
SPEC NO: DSAH5761
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: APR/01/2013
DRAWN: F.Cui
PAGE: 4 OF 5
ERP: 1203003785

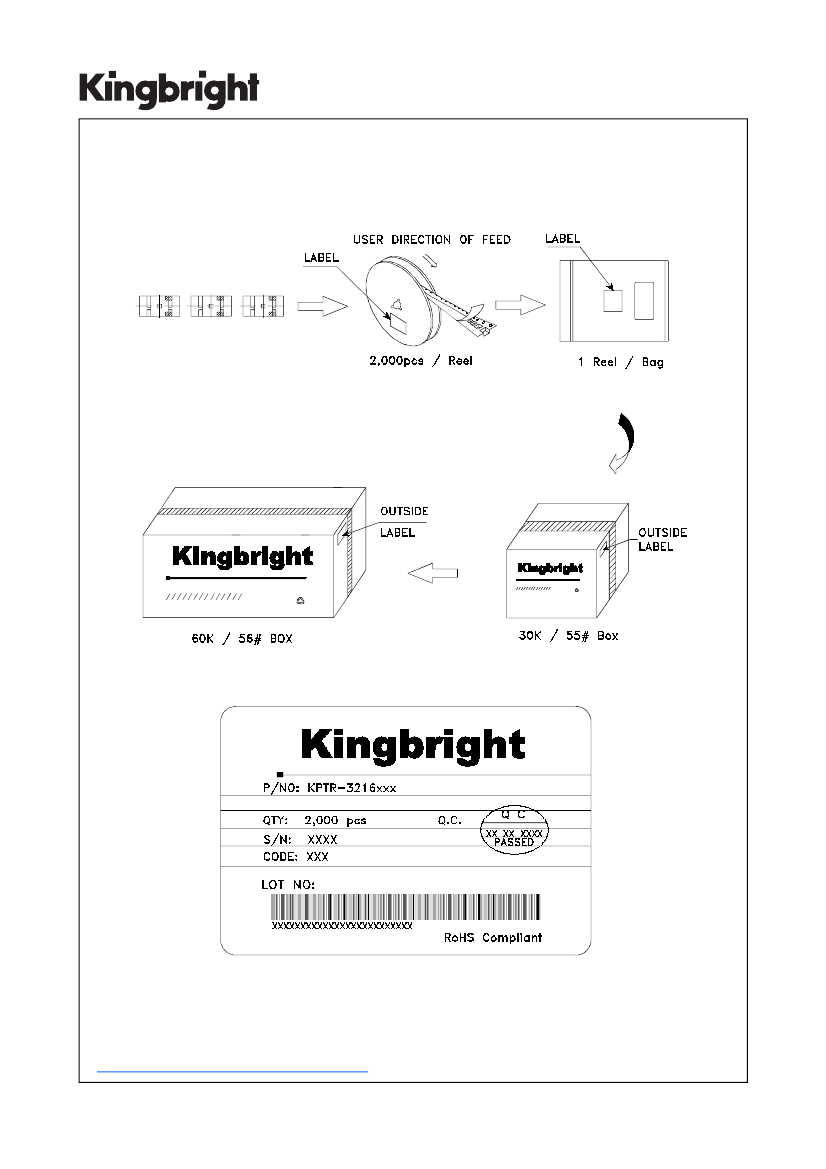

PACKING & LABEL SPECIFICATIONS
KPTR-3216ZGC
K
g
in
ig
r
b
t
h
Detailed application notes are listed on our website.
http://www.kingbright.com/application_notes
SPEC NO: DSAH5761
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: APR/01/2013
DRAWN: F.Cui
PAGE: 5 OF 5
ERP: 1203003785
