MIL-DTL-24308
D-Subminiature
550-041
D-Subminiature TAG Ring
®
Split Backshell
with Shrink Boot Groove
550 T 041 M 2 F0 B 1 L T
Basic Part No.
Cable Entry Style
T = Top
S = Side
E = End
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
K
Typ.
J
Typ.
H
Entry
Typ.
1.19 (30.2) Max Typ.
Style G
Gland Nut
S
SIDE
ENTRY
Shrink Boot Supplied (Table I), Omit for None
L = Strain Relief, G = Gland Nut
0 = Without EMI Gasket, 1 = With EMI Gasket
Jackscrew Type (Page A-4)
Receptacle Mounting (Right Page)
F0 = Front Mounting
R1-R9 = Rear Mounting
Shrink Boot
Accomodation
T
TOP
ENTRY
E
END
ENTRY
EMI Gasket (Optional)

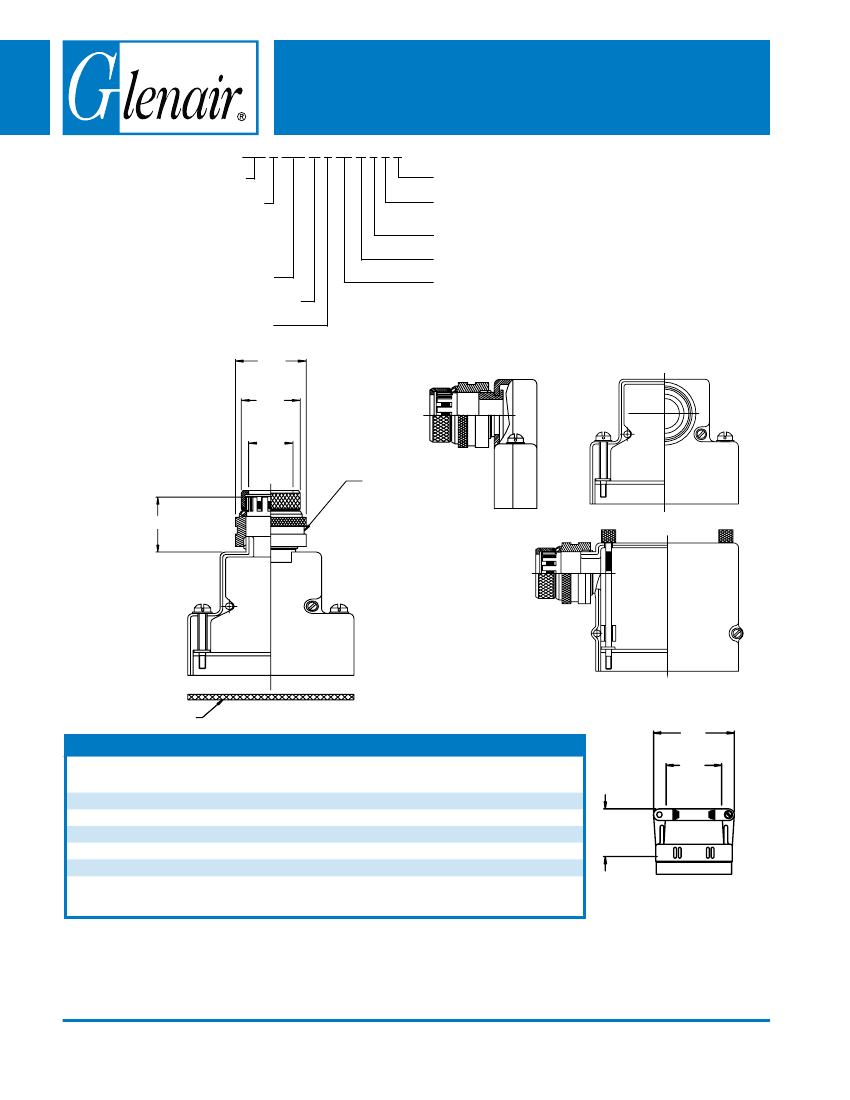

TABLE I: SHELL SIZE, CABLE ENTRY & SHRINK BOOT
H
J
K Dia
Shell
Entry
Max
Max
Size
.250 (6.4)
.545 (13.8)
.650 (16.5)
1
.375 (9.5)
.670 (17.0)
.774 (19.7)
2
.475 (12.1)
.795 (20.2)
.963 (24.5)
3
.475 (12.1)
.795 (20.2)
.963 (24.5)
4
.575 (14.6)
.920 (23.4) 1.042 (26.5)
5
6* 1.000 (25.4) 1.295 (32.9) 1.420 (36.1)
* Shell Size 6 Available in Top Entry Only.
L
Max
.968 (24.6)
1.046 (26.6)
1.156 (29.4)
1.156 (29.4)
1.218 (30.9)
1.593 (40.5)
Shrink
Boot
202K121-25-0
202K132-25-0
202K142-25-0
202K142-25-0
202K153-25-0
202K163-25-0
L
H
Entry
.750 (19.1)
Max
Style L
Strain Relief
1. Metric dimensions (mm) are indicated in parentheses.
2.
DO NOT USE CONNECTORS WITH FLOAT MOUNTINGS.
3. TAG Ring
®
nut is aluminum with gold iridite finish. TAG Ring
®
spring is beryllium copper with gold
plating.
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-40
D-Subminiature Split Backshells
Standard Dimensions
Termination
Type
Jackscrew
Types B, D,
E, H, K
(Page A-4)
P
Jackscrew
Types B, D,
E, H, K
(Page A-4)
F
R
F
E
E
S - SIDE
ENTRY
T - TOP
ENTRY
Termination
Type
A
D
C
B
Jackscrew Types B , D, H
and J Only (Page A-4)
Shrink Sleeve (As Required)
E - END
ENTRY
E
A
G
.12 (3.0) Ref.
Com’l
Shell Shell Size
Ref
Size
1
E/09
A/15
2
3
B/25
C/37
4
5
D/50
6
F/104
COMMON CONNECTOR/SHELL INTERFACE & BACKSHELL DIMENSIONS
A
Max
1.393 (35.4)
1.706 (43.3)
2.265 (57.5)
2.900 (73.7)
2.800 (71.1)
2.900 (73.7)
B
Max
.624 (15.8)
.624 (15.8)
.624 (15.8)
.624 (15.8)
.750 (19.1)
.844 (21.4)
C Ref.
.312 (7.9)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.375 (9.5)
.422 (10.7)
±.005
.984
1.312
1.852
2.500
2.406
2.500
D
(.1)
(25.0)
(33.3)
(47.0)
(63.5)
(61.1)
(63.5)
P
(18.5)
(26.7)
(40.5)
(56.9)
(54.4)
(56.9)
R Ref
.719 (18.3)
.719 (18.3)
.938 (23.8)
.938 (23.8)
.938 (23.8)
1.094 (27.8)
.730
1.050
1.594
2.240
2.140
2.240
Panel
Dash
No. Thickness
n/a
CC
n/a
F0
.031 (.8)
R1
.047 (1.2)
R2
.062 (1.6)
R3
.093 (2.4)
R4
.104 (2.6)
R5
.125 (3.2)
R6
.156 (4.0)
R7
.135 (3.4)
R8
.188 (4.8)
R9
CABLE MOUNTING AND BACKSHELL DIMENSIONS
E
.174 (4.4)
.343 (8.7)
.247 (6.3)
.231 (5.9)
.216 (5.5)
.185 (4.7)
.174 (4.4)
.153 (3.9)
.125 (3.2)
.140 (3.6)
.094 (2.4)
Sizes 1 & 2
1.451 (36.9)
1.625 (41.3)
1.525 (38.7)
1.509 (38.3)
1.500 (38.1)
1.470 (37.3)
1.451 (36.9)
1.430 (36.3)
1.400 (35.6)
1.417 (36.0)
1.368 (34.7)
F + .031 (0.79)
Sizes 3 - 5
1.671 (42.4)
1.844 (46.8)
1.745 (44.3)
1.728 (43.9)
1.720 (43.7)
1.690 (42.9)
1.671 (42.4)
1.650 (41.9)
1.620 (41.1)
1.637 (41.6)
1.590 (40.4)
Size 6
1.820 (46.2)
2.000 (50.8)
1.890 (48.0)
1.875 (47.6)
1.860 (47.2)
1.829 (46.5)
1.820 (46.2)
1.798 (45.7)
1.767 (44.9)
1.805 (45.8)
1.740 (44.2)
G + .031 (0.79)
Sizes 1 & 2 Sizes 3 - 5
1.583 (40.2) 1.831 (46.5)
1.750 (44.5) 2.000 (50.8)
1.656 (42.1) 1.904 (48.4)
1.640 (41.7) 1.888 (48.0)
1.625 (41.3) 1.873 (47.6)
1.594 (40.5) 1.842 (46.8)
1.583 (40.2) 1.831 (46.5)
1.563 (39.7) 1.811 (46.0)
1.531 (38.9) 1.781 (45.2)
1.550 (39.4) 1.798 (45.7)
1.500 (38.1) 1.750 (44.5)
Metric dimensions (mm) are indicated in parentheses.
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-41
MIL-DTL-24308
D-Subminiature
