32-5098-0003-00-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 32-5098-0003-00-001

32-5098-0003-00-001: DescriptionPCMCIA Connector, 25 Contact(s), 1 Row(s), Male, Plug; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

32-5098-0003-00-001 Overview

PCMCIA Connector, 25 Contact(s), 1 Row(s), Male, Plug

32-5098-0003-00-001 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5098
Plug information	21-5098-0003-00-001
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

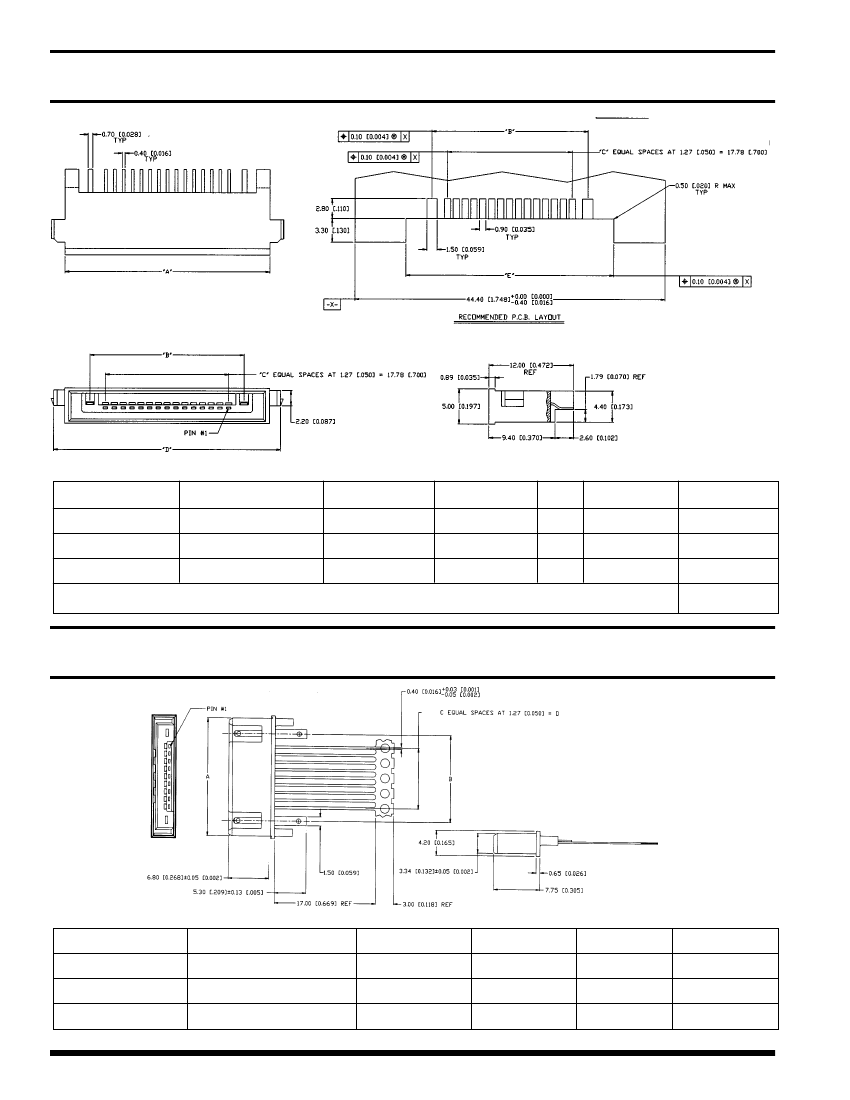

I/O Card Connectors

SERIES 5098

Receptacles

Recommended P.C. Board Layout

# POSITIONS

PART NUMBER

21-5098-0005-00-001

21-5098-0002-00-001

21-5098-0003-00-001

21,91 (0.863")

29,53 (1.163")

42,23 (1.663")

14,60 (0.575)

22,22 (0.875)

34,92 (1.375)

25,11 (0.989)

32,73 (1.289)

45,43 (1.789)

*22,90 (0.902)

*29,73 (1.170)

44,40 (1.748)

* +0,2-0, (+.008-.0)

I/O Cable Connectors

SERIES 5098

Plugs

# POSITIONS

PART NUMBER

32-5098-0001-00-001

32-5098-0002-00-001

32-5098-0003-00-001

19,70 (0.776)

27,32 (1.076)

40,02 (1.576)

14,60 (0.575)

22,22 (0.875)

34,92 (1.375)

10,16 (0.400)

17,78 (0.700)

30,48 (1.200)

32-5098-0003-00-001 Related Products

	32-5098-0003-00-001	32-5098-0001-00-001	21-5098-0002-00-001	21-5098-0003-00-001	32-5098-0002-00-001	21-5098-0005-00-001
Description	PCMCIA Connector, 25 Contact(s), 1 Row(s), Male, Plug	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Plug	PCMCIA Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle	PCMCIA Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle	PCMCIA Connector, 15 Contact(s), 1 Row(s), Male, Plug	PCMCIA Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	FEMALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5098	5098	5098	5098	5098	5098
Plug information	21-5098-0003-00-001	21-5098-0005-00-001	32-5098-0002-00-001	32-5098-0003-00-001	21-5098-0002-00-001	32-5098-0001-00-001
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	BOARD	BOARD	CABLE	BOARD
Number of rows loaded	1	1	1	1	1	1
Total number of contacts	25	9	15	25	15	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
