AD10N680J500A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000068uF, Through Hole Mount, AXIAL LEADED; File Size168KB，2 Pages; ManufacturerWalsin Technology Corporation

Download Datasheet Parametric View All

AD10N680J500A Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000068uF, Through Hole Mount, AXIAL LEADED

AD10N680J500A Parametric

Parameter Name	Attribute value
Objectid	1234303200
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	6.25
capacitance	0.000068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Manufacturer's serial number	AD10
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK; TR, 14 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal shape	WIRE

Preview

Download Datasheet

View All

MLC AXIAL LEAD CAPACITOR

w w w. p a s s i v e c o m p o n e n t . c o m

Features, Taping Specification & Capacitance Chart

FEATURES

1. MLC Axial-Lead Capacitor (AD) is built with superior moisture and shock resistant epoxy coating material.

Produces in high volume by automated processes to ensure uniform conforming coating.

2. The axial lead MLC can be supplied in both bulk or taping form for automatic insertion and sequencing with

any other axial lead components.

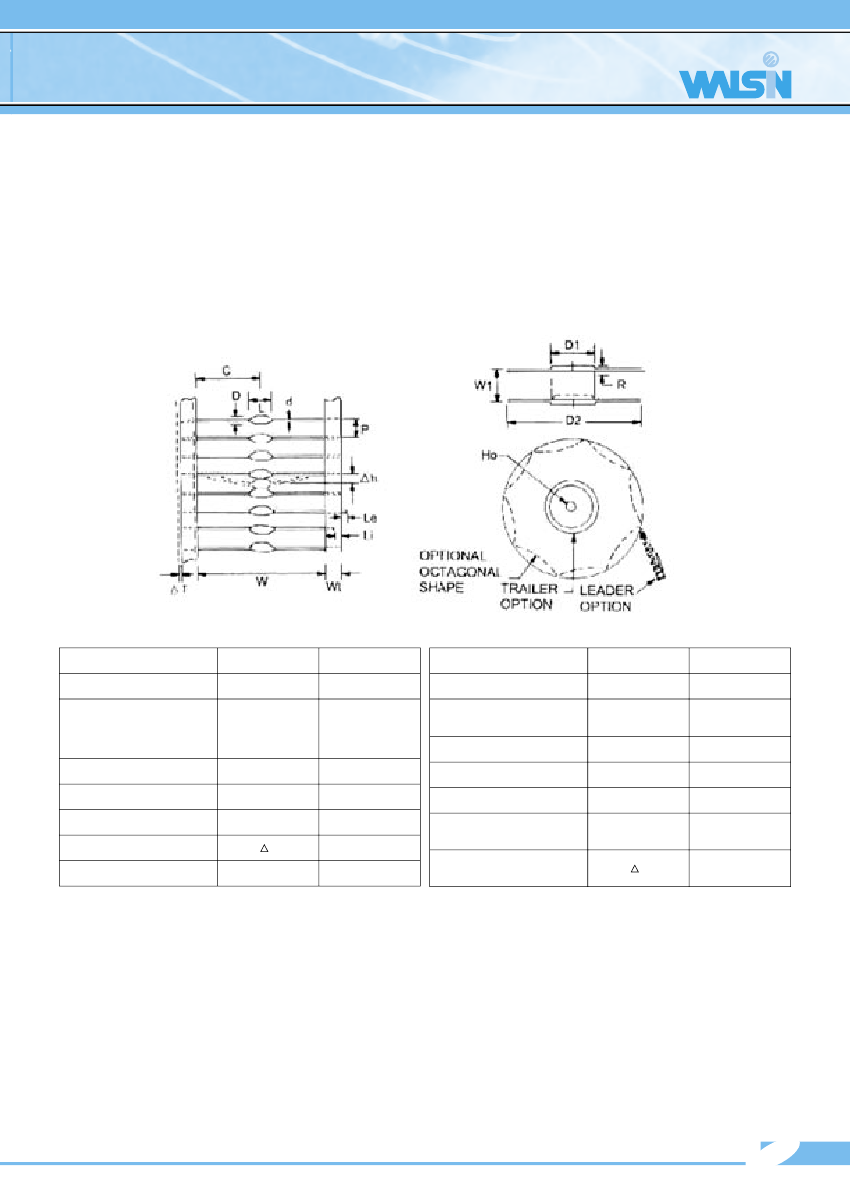

TAPING SPECIFICATION AND DIMENSION

ITEM

Pitch of component

Cumulative tolerance of p

Over 6 consecutive

Tape width

Lead wire protrusion

Lead extension into tape

Off set between tapes

Width between tapes

SYMBOL

P

DIMENSION

5.08 ± 0.51

ITEM

Centered

Core Diameter

SYMBOL

C

D1

D2

W1

R

H0

DIMENSION

26.2 ± 0.76

3.49 - 92.1

standard 61.0

360 max

69.9 ± 1.5

9.5 min

13.89 - 38.10

standard 15.9

1.2 max

± 0.15

Real Diameter

Wt

Le

Li

T

W

6.0 ± 1.0

1.57 max

3.96 max

0.8 max

Deflection Form

52.4 ± 1.5

Nominal Position

h

Core Width

Recess Depth

Arbor Hole

38
