315VXP68MSN22X25: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 315V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, CAN; File Size446KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

315VXP68MSN22X25 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 315V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, CAN

315VXP68MSN22X25 Parametric

Parameter Name	Attribute value
Objectid	1675860574
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.43907 mA
Manufacturer's serial number	VXP
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	315 V
ripple current	320 mA
surface mount	NO
Delta tangent	0.2
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

FINAL ACCEPTED ORDER DATE [2008/09]

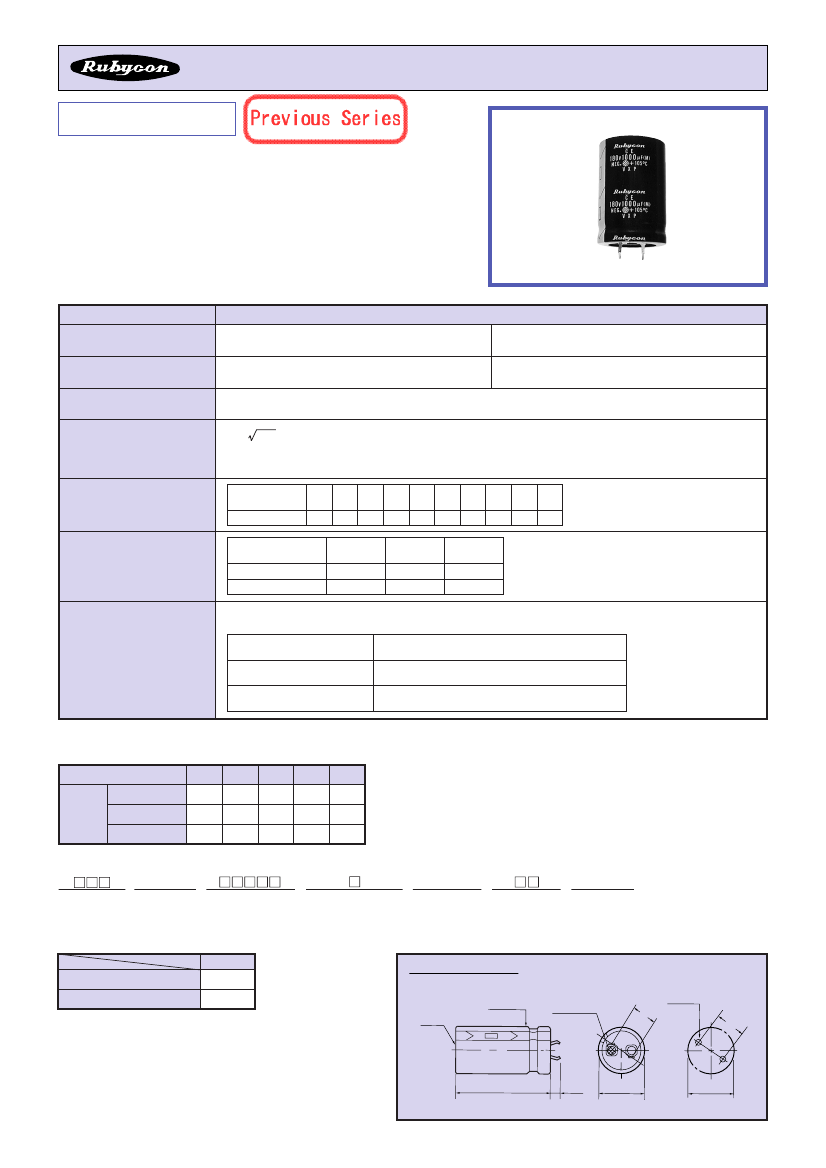

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

VXP

SERIES

105°C 5000 hours, Snap-in Terminal Type

♦FEATURES

•

Load Life : 105°C 5000 hours.

♦SPECIFICATIONS

Items

Category Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I=3 CV

-40~+105°C

10~100V.DC

±20%(20°C,120Hz)

(After 5 minutes application of rated voltage)

V=Rated Voltage(V)

25

35

50

63

80

Characteristics

-25~+105°C

160~400V.DC

I=Leakage Current(µA)

Dissipation

Factor(MAX)

Rated Voltage(V)

tanδ

10

16

C=Rated Capacitance(µF)

(20°C,120Hz)

100 160~ 315~

250 400

0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.20

10~100

3

12

160~250

3

315~400

8

Rated Voltage(V)

(120Hz)

Impedance Ratio(MAX)

Z(-25°C)/Z(20°C)

Z(-40°C)/Z(20°C)

After applying rated voltage with rated ripple current for 5000hrs at 105°C, the capacitors shall

meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within

±20%(For

10WV ;

±25%)of

the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

♦MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency

(Hz)

60(50) 120

500

1k

10k<

=

10~100WV

Coefficient

0.90 1.00 1.05 1.10 1.15

160~250WV 0.80 1.00 1.20 1.30 1.50

315~400WV 0.80 1.00 1.20 1.25 1.40

♦PART

NUMBER

VXP

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

OOE

Option

Terminal Code

DxL

Case Size

♦Option

without plate

with plate

Code

OOE

Blank

♦DIMENSIONS

SN [4(3.5)mm] terminal type

(mm)

SLEEVE

VENT

2-

φ

2

NEGATIVE

10

±0.1

L

±

2

*4

±

0.5

*For

φ35,

3.5±0.5

φD±1

MOUNTING HOLES
