80ZLH1000MEFCFA16X40 datasheet, PDF

Datasheet> All Categories > 80ZLH1000MEFCFA16X40

80ZLH1000MEFCFA16X40: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; File Size354KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

80ZLH1000MEFCFA16X40 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

80ZLH1000MEFCFA16X40 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1235374780
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.8 mA
Manufacturer's serial number	ZLH
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	1716 mA
surface mount	NO
Delta tangent	0.08
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

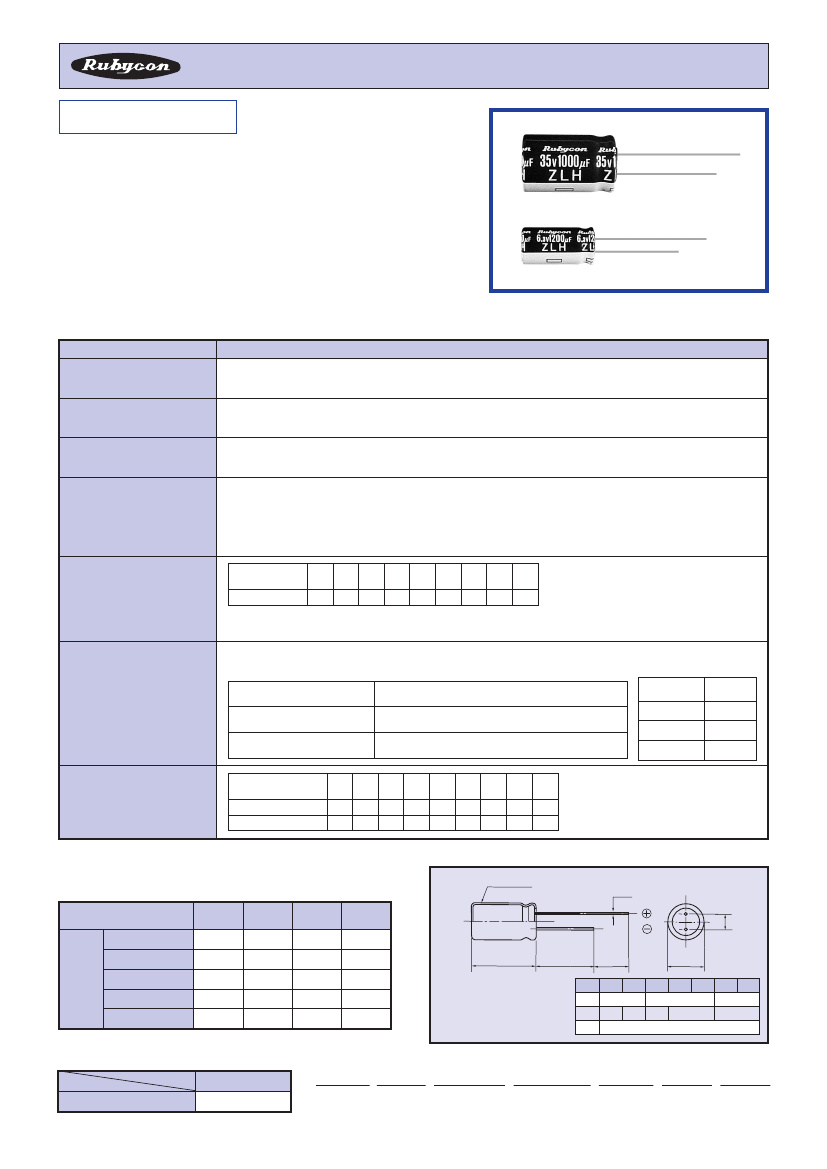

小½アルミニウム電解コンデンサ

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

ZLH

シリーズ

SERIES

105℃ 小½化長寿½ ½イピー

ンダンス品

105℃ Miniaturized, Long Life, Low impedance.

◆特長／FEATURES

・リ

ZLシーズの耐久性向上と高容量化を実現更に高周波イ

し、

ンピーダンス

を½減。

Achieved endurance improvement and miniaturization of ZL series, as well as high

frequency impedance reduction.

・

105℃ 6000∼10000時間品。

Load Life : 105℃ 6000∼10000 hours.

・

RoHS指令対応品。

RoHS compliance.

◆規格表／SPECIFICATIONS

項目

Items

カテゴリ温度範囲

Category Temperature Range

特性

Characteristics

−40∼＋105℃

6.3∼100V.DC

±20％

（20℃，

120Hz）

I＝0.01CV又は3μAのいずれか大なる値以下

（定格電圧印加2分後)

定格電圧範囲

Rated Voltage Range

静電容量許容差

Capacitance Tolerance

漏

れ

電

流

I＝0.01CV

or 3μA whichever is greater. (After 2 minutes)

Leakage Current(MAX)

I＝漏れ電流(μA)

C＝定格静電容量(μF) V＝定格電圧(V)

Leakage Current Rated Capacitance Rated Voltage

定格電圧(V)

120Hz）

6.3 10 16 25 35 50 63 80 100

（20℃，

Rated Voltage

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.08

損失角の正接 (tanδ)

Dissipation Factor(MAX)

1000μFを越える

ものは1000μF増す毎に上表の値に0.02を加えた値と

する。

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

105℃, 右表の時間定格電圧プル重畳）

（リ

印加後、

下記項目

を満足すると。

こ

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

静電容量変化率

Capacitance Change

損失角の正接

Dissipation Factor

漏

れ

電

流

Leakage Current

定格電圧(V)

6.3

Rated Voltage

（−25℃）（20℃） 2

（−40℃）（20℃） 3

初期値の±25％以内

（6.3v,10v : ±30%）

Within ±25％ of the initial value. (6.3v,10v : ±30%)

規格値の200％以下

Not more than 200％ of the speciﬁed value.

規格値以下

Not more than the speciﬁed value.

80 100

ケースサイ

ズ時間(hrs)

Case Size Life Time

φD≦ 6.3

φD＝

6000

8000

10000

耐

Endurance

久

性

φD≧ 10

温

特

性

（120Hz）

Low Temperature Stability

（イ

ンピーダンス比）

Impedance Ratio(MAX)

◆リ

プル電流補正係数／

MULTIPLIER FOR RIPPLE CURRENT

周波数係数 Frequency Coeﬃcient

周波数

（Hz）

Frequency

◆寸法図／DIMENSIONS

スー

リブ

SLEEVE(PET)

（mm）

F ±0.5

φD＋0.5MAX

φd

120

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

100k≦

1.00

L＋ MAX

15MIN

4MIN

8.2∼33μF

47∼270μF

Coeﬃcient

係数

330∼680μF

820∼1800μF

2200∼8200μF

φD

φd

2.0

6.3

0.5

2.5

3.5

0.6

12.5

0.8

7.5

5.0

L≦16 : α

＝1.5 L≧20 : α

＝2.0

◆副記号／OPTION

記号

Code

PETスー

PET Sleeve

リブ

Ｅ

ＦC

◆呼称方法／PART NUMBER

□□□

定格電圧

Rated Voltage

ZLH

シリーズ名

Series

□□□□□

定格静電容量

Rated Capacitance

静電容量許容差

Capacitance Tolerance

□□□

副記号

Option

□□

リー

ド加工記号

Lead Forming

D×L

ケースサイズ

Case Size
