80ZLJ68MRX10X12.5 datasheet, PDF

Datasheet> All Categories > 80ZLJ68MRX10X12.5

80ZLJ68MRX10X12.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 80V, 20% +Tol, 20% -Tol, 68uF,; File Size94KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

80ZLJ68MRX10X12.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 80V, 20% +Tol, 20% -Tol, 68uF,

80ZLJ68MRX10X12.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7194555847
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.35
capacitance	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
length	12.5 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	780 mA
Terminal surface	TIN
Terminal pitch	5 mm

Preview

Download Datasheet

View All

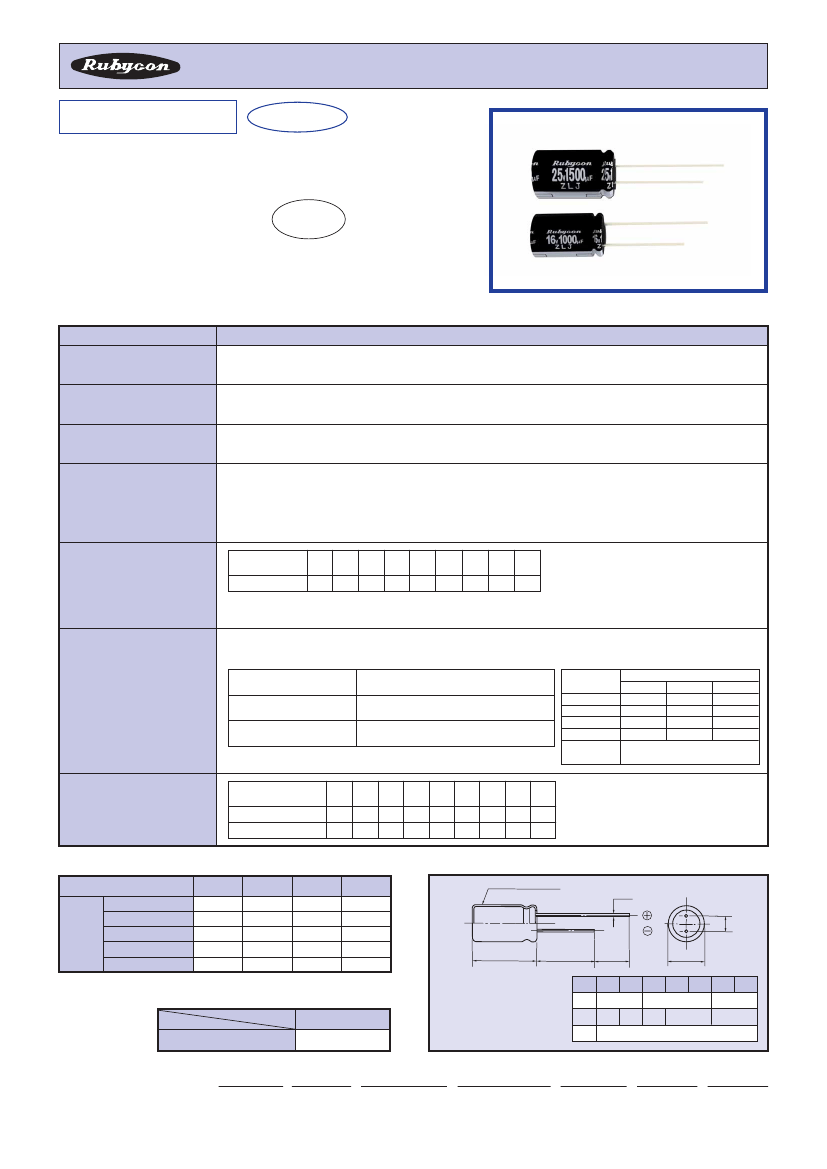

RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS

ZLJ

SERIES

UPGRADE

105℃ High Ripple Current, Long Life, Low Impedance

・

Load Life : 105℃ 6000∼10000 hours.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼100Vdc

±20％

（20℃，

120Hz）

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝0.01CV

or 3μA whichever is greater.(After 2 minutes)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(Vdc)

Rated Voltage

6.3 10 16 25 35 50 63 80 100

(Vdc)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.08

（20℃，

120Hz）

Dissipation Factor(MAX)

(tanδ)

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rated voltage with rated ripple current for speciﬁed time at 105℃,

the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

(6.3Vdc, 10Vdc ±30%)

：

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Life Time(hrs)

6.3Vdc 10∼50Vdc 63∼100Vdc

φD≦6.3

6000

7000

6000

8000

9000

8000

8×11.5

9000

10×12.5

9000

9000 10000

8×16,8×20

10×16,10×20,10×25

10000

φD≧12.5

Case Size

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

(Vdc)

（−25℃）（20℃） 2

（−40℃）（20℃） 3

80 100

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

◆DIMENSIONS

100k≦

1.00

SLEEVE(PET)

（mm）

F ±0.5

φD＋0.5MAX

φd

120

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

8.2∼33μF

47∼270μF

Coeﬃcient

330∼680μF

820∼1800μF

2200∼8200μF

L＋ MAX

15MIN

4MIN

φD

φd

6.3

0.5

10 12.5

0.6

0.8

7.5

◆OPTION

PET Sleeve

Code

Blank

2.0

2.5

3.5

5.0

L≦16 : α

＝1.5 L≧20 : α

＝2.0

◆PART NUMBER

□□□

Rated Voltage

ZLJ

Series

□□□□□

Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
