ABLS3-10.000MHZ-D4Y-T

Description
crystals 10mhz 30ppm -40c +85c 18pf
CategoryPassive components    Crystal/resonator
File Size111KB,1 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

ABLS3-10.000MHZ-D4Y-T Overview

crystals 10mhz 30ppm -40c +85c 18pf

ABLS3-10.000MHZ-D4Y-T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT, HC49/US, SMD, 2 PIN
Reach Compliance Codecompliant
Factory Lead Time10 weeks
Other featuresAT-CUT; TAPE AND REEL
Ageing5 PPM/FIRST YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.003%
frequency tolerance30 ppm
JESD-609 codee3
load capacitance18 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency10 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL11.4XB4.7XH2.5 (mm)/L0.449XB0.185XH0.098 (inch)
Series resistance50 Ω
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches1

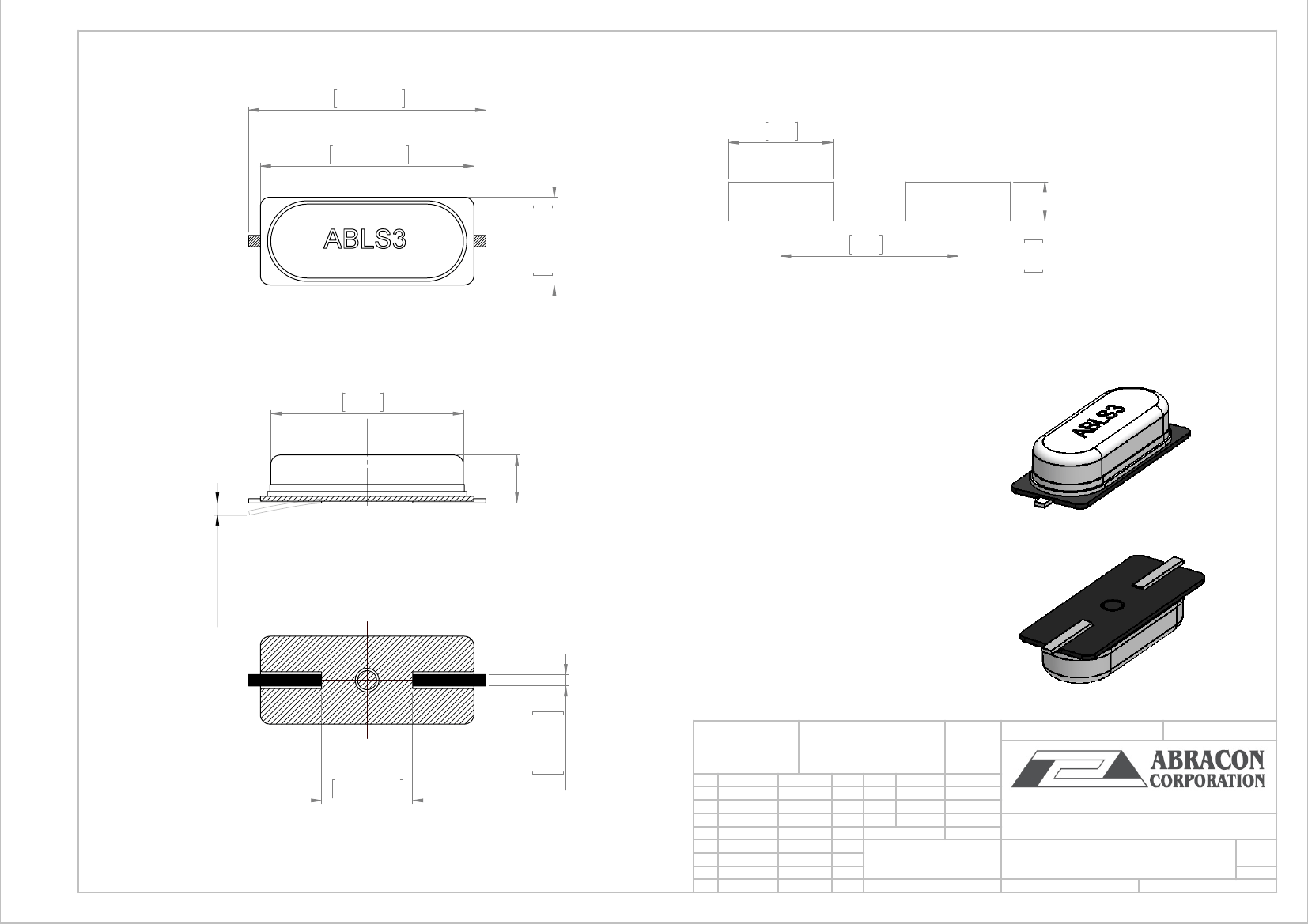

0.500±0.02
12.7±0.6
0.45±0.006
11.4±0.15
0.19±0.006
4.7±0.15
Recommended Land Pattern
0.22
5.6
0.406 Max.
10.3
0.004[0.1] Max.
0.000[0.0]Min.
(Both sides)
H
H: 2.5mm max for frequency 6MHz or higher
2.6mm max for frequency lower than 6MHz
0.008
0.024+0.004
-
+0.2
0.6 - 0.1
0.192±0.008
4.88±0.2
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCH(MM)
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
NAME
DRAWN
CHK'D
APPV'D
MFG
Q.A
SAAZVAT
XXXXXX
FINISH:
DEBUR AND
BREAK SHARP
EDGES
0.083
2.1
0.374
9.5
DO NOT SCALE DRAWING
REVISION
-
SIGNATURE
DATE
30332 Esperanza, Rancho Santa margarita, California 92688
TITLE:
CRYSTAL
MATERIAL:
DWG NO.
ABLS3
SHEET 1 OF 1
A3
WEIGHT: 0.26
SCALE:6:1
