CERAMIC SURFACE MOUNT MICROPROCESSOR CRYSTAL
ABMM
FEATURES:
• Suitable for RoHS reflow
• Low height 1.3 mm max
• AT-strip cut offers a tight tolerance & stability
Pb
RoHS
Compliant
APPLICATIONS:
• Computers, Modems, Microprocessors
• Communication, Test equipment
• PCMCIA
7.0 x 5.0 x 1.3 mm
| | | | | | | | | | | | |
| |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operation Mode
ABMM
6.0 MHz to 125 MHz
AT-cut
6.0 MHz ~ 33.0 MHz (Fundamental: Standard)
33.01 MHz - 125 MHz (Third-Overtone: Standard)
33.01 MHz ~ 50.0 MHz (Fundamental: Please spedcify. See options)
Operating
Temperature
Storage
Te
mperature
Frequency
Tolerance
at +25°C
Frequency Stability over the
Operating
Temp. (Ref to +25°C)
Equivalent Series Resistance
Shunt Capacitance C
0
Load Capacitance C
L
Drive Level
Aging at 25°C (first year)
Insulation Resistance
- 10°C to + 60°C (see options)
- 40°C to + 85°C
± 50 ppm max. (see options)
± 50 ppm max. (see options)
See
Table
1
7pF max.
18pF (see options)
500µW
max., 100µW typical
± 5ppm max.
500MΩ min at 100Vdc ± 15V
ESR (Ω) Max
TABLE 1: STANDARD ESR
6.000 - 11.999(Fund)
12.000 - 20.000(Fund)
Frequency (MHz)
70
50
20.000 - 50.000(Fund)
33.000 - 125.00(3rd O/T)
Frequency (MHz)
ESR (Ω) Max
40
80
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABMM –
MHz -
-
R
-
-
-
-
-
Pac kag ing
Blan
k:
Bulk
T: Ta
pe & Ree l
(1k)
T2: Ta
pe & Ree l
(250)
Fre qu e nc y in MHz
e .g.
6.000MHz
14.318 18MHz
26.000 MHz
Load Capac itance
P lea
se s
pe cify CL
(8
to
33 pF) in pF or S for S e rie
s
P lea
se
co nta ct
ABRACON
fo r othe r
va lue
s
Mode
F: Fund.AT
for
>33 MHz
ES R if o the r than S TD
S pe cify a va lue in Ω
Ope rating Te mp.
E: 0°C
~ +70°C
B: -20°C
~ +70°C
C:
-30°C
~ +70°C
N:
-30°C
~ +85°C
D: -40°C
~ +85°C
Fre q. Tole ranc e
1:
±
10 ppm
7: ±
15 ppm
2: ± 20
ppm
3:
± 25
ppm
4: ±
30 ppm
Fre q. S tability
U: ±
10 pp m
(*)
G: ±
15 ppm
(**
)
X: ± 20
pp m
W: ± 25
pp m
Y: ±
30 pp m
H:
±
35 pp m
* -10 to +60
°C
only.
°C
** Option
E, B,
and10 to +60 only.
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 02.26.12
30332
Esperanza,
Rancho Santa
Margarita,
California
92688
tel
949-546-8000
|
fax
949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
CERAMIC SURFACE MOUNT MICROPROCESSOR CRYSTAL
ABMM

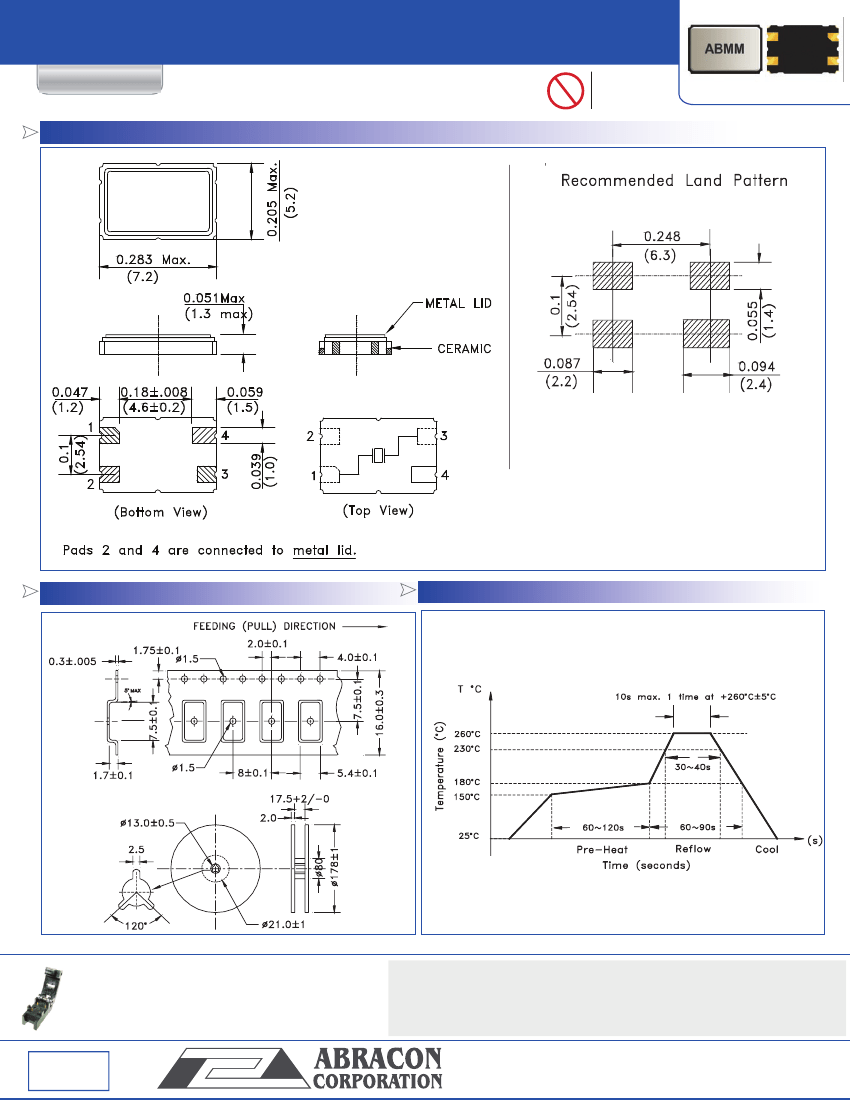

OUTLINE DRAWING:
Pb
RoHS
Compliant
7.0 x 5.0 x 1.3 mm
| | | | | | | | | | | |
| | |
Dime nsion : Inche s (mm)
Note 1: A longer pad (1.5mm) may appear on either pad 2, 3, or 4.
Note 2: A chamfer of 0.3mm may appear on pad 1 or 2.
Note 3: Pads 2 and 4 are connected to the metal lid.
TAPE & REEL:
Tape and reel 1,000 pcs/reel
REFLOW PROFILE:
Dimensions: mm
Need a test socket for the ABMM Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON
ABRACON ISIS
ISO 9001 / QS 9000
ISO9001:2008
CE R
CE RTIFIED
ATTENTION
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for
:
Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically
designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring
high reliability where component failure could result in loss of life and/or property. For applications requiring
high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
Revised: 02.26.12
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
