3950135000PPST: DescriptionBoard Connector, 13 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Plug; File Size109KB，1 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

3950135000PPST Overview

Board Connector, 13 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Plug

3950135000PPST Parametric

Parameter Name	Attribute value
Objectid	304369397
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.2 inch
subject depth	0.368 inch
body length	2.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P13
Contact to complete cooperation	SN ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYETHYLENE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Termination type	SURFACE MOUNT
Total number of contacts	13

Preview

Download Datasheet

View All

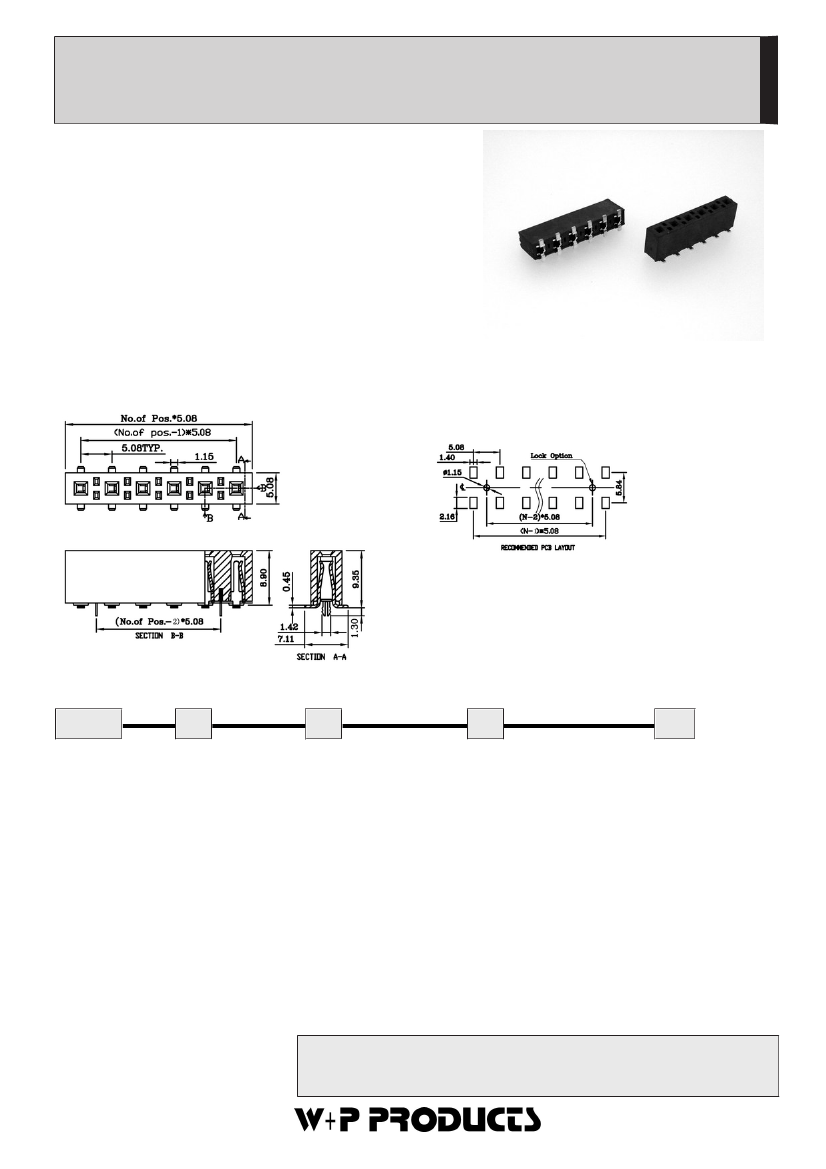

3950

SMT-Buchsenleiste Power-Kontakt RM 5,08mm

SMT Female Header Power-Contact 5,08mm Pitch

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Isolationswiderstand

> 1x10

Ω

Insulation Resistance

> 1x10

Ω

Spannungsfestigkeit

500V

@ 1min

Test Voltage

500V

@ 1min

Nennstrom

7,9A

Current Rating

7,9A

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

Contacts

Plating

Locating Peg

Packing

3950

02-20

Vergoldet

Gold plated

Verzinnt

Tin plated

Sel. Au/Sn

Ohne Pos.hilfe

W/o loc. peg

Mit Pos.hilfe

With loc. peg

PPST

PPTR

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= In Stangen /

In tubes

PPST

= In Stangen mit PP-Pad /

In tube with PP-Pad

PPTR

= Tape & Reel mit PP-Pad /

Tape & Reel packing with PP-Pad

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
