RDMF12TS112G

Description
Fixed Resistor, Carbon Film, 0.5W, 1100ohm, 300V, 2% +/-Tol, -500,350ppm/Cel
File Size705KB,2 Pages
ManufacturerAkahane Electronics Ind Corp
Environmental Compliance
Download Datasheet Parametric View All

RDMF12TS112G Overview

Fixed Resistor, Carbon Film, 0.5W, 1100ohm, 300V, 2% +/-Tol, -500,350ppm/Cel

RDMF12TS112G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1214744096
Reach Compliance Codecompliant
ECCN codeEAR99
structureCylindrical
Lead diameter0.55 mm
Manufacturer's serial numberRDMF12
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package diameter2.4 mm
Package length6 mm
Package shapeCYLINDRICAL PACKAGE
Package formAxial
method of packingBox
Rated power dissipation(P)0.5 W
resistance1100 Ω
Resistor typeFIXED RESISTOR
seriesRDMF
technologyCARBON FILM
Temperature Coefficient-500,350 ppm/°C
Tolerance2%
Operating Voltage300 V
用途
-Application-
電源回路
インバータ
AC アダプタ
Switching power supply
Inverter circuit.
AC adapter.
特長
-Features-
不燃性の塗装の汎用抵抗器
外装は UL94 V-0 認定品
R½HS対応品
外装色:グリーン
Coating color: Green
General purpose resistor with non-flammable coating.
“UL94 V-0” authorized coating.
RoHS compliant product.

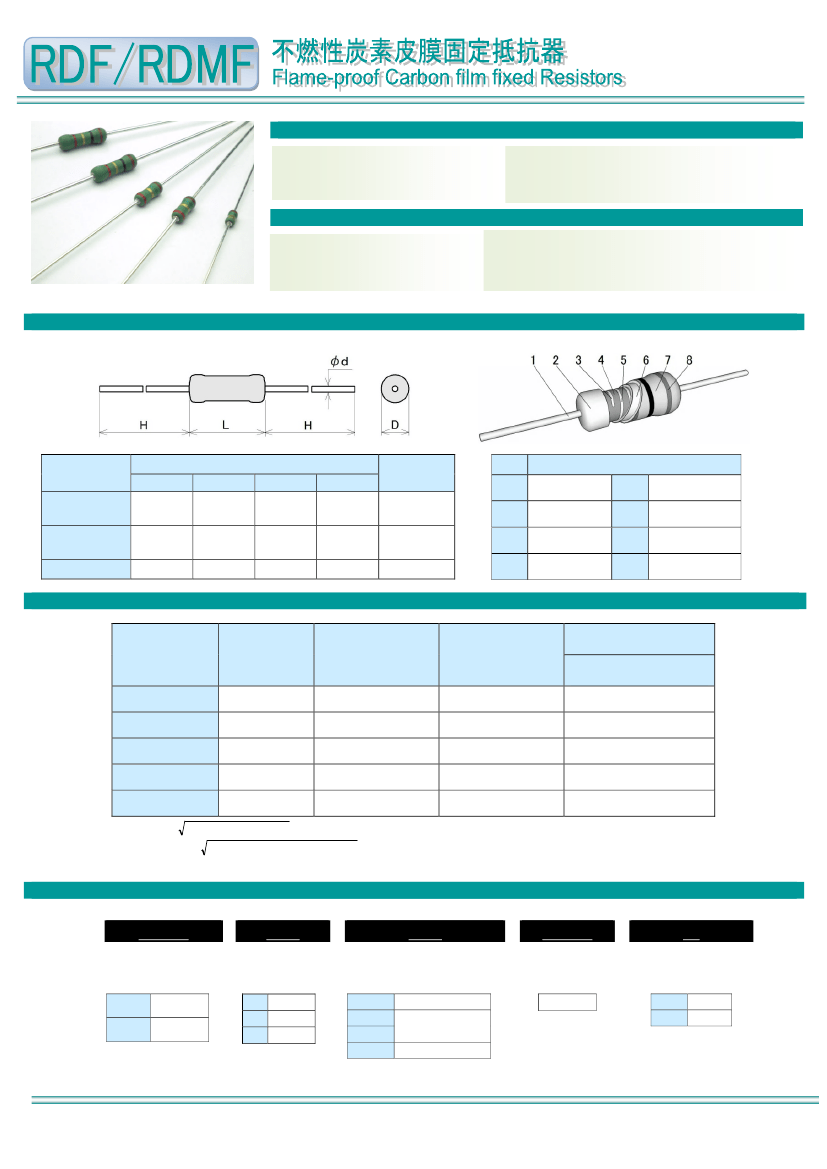

構造・寸法
-Construction・Dimensions-
½名
Type
RDF16S
RDMF14S
RDF14S
RDMF12S
RDF12S
寸法
Dimensions (mm)
L
3.2
+
0.2
-
0
6.0±0.3
8.5±0.5
D
1.85±0.2
2.4±0.2
2.8±0.3
d
0.45±0.05
0.55±0.05
0.7±0.05
H(Bulk)
28 ± 3
28 ± 3
28 ± 3
質量
Mass (mg)
110
210
320
No
1
2
3
4
リード線
Lead wire
名称
Parts Name
5
6
7
8
カッティング溝
Trimming lines
キャップ
End cap
皮膜保護塗装
Protecting coat
基½
Ceramic core
絶縁塗装
Insulating coat
抵抗皮膜
Resistive film
カラーコード
Color code
仕様
-Specifications-
½名
Type
RDF16
RDF14
RDF12
RDMF14
RDMF12
定格電力
Power Rating
0.166W
0.25W
0.5W
0.25W
0.5W
最高½用電圧
Maximum Working
Voltage
200V
300V
350V
250V
300V
最高過負荷電圧
Maximum Overload
Voltage
400V
600V
700V
500V
600V
抵抗値範囲
Resistance Range
G(±2%)、J(±5%)
E24
½
2.2MΩ
½
5.1MΩ
½
5.1MΩ
½
2.2MΩ
½
2.2MΩ
定格電圧は
定格電力´ 公称抵抗値
による計算値、又は最高½用電圧のいずれか小さい方の値とする。
Rated voltage =
Power Rating
´
NominalResistance
or Maximum Working Voltage, whichever is lower.
½名
-How to Code-
RDF
種類
Type
標準品
Standard
小½品
RDMF Miniature
RDF
16
定格電力
Power
Rating
16 0.166W
14 0.25W
12 0.5W
S
TB※
TU※
TS
TB
包装½態
Package
Bulk
52mmTaping box
26mmTaping box
102
抵抗値
Resistance
Value
3digits
例)Ex.
4.7Ω→4R7
220KΩ→224
許容差
Resistance
Tolerance
J
G
±5%
±2%
※RDF16,
RDF12→TB
RDF14, RDMF12→TU
本カタログに記載の仕様は予告なく変更する場合がございます。ご注文及びご½用前に納入仕様書等で内容をご確認頂きます様お願い致します。
Specifications given herein are subject to change without notice. Please confirm technical specifications before you order and / or use.
32
http://www.akaneohm.com
