D38999/20WE99PN

Description
23 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size71KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

D38999/20WE99PN Overview

23 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE

D38999/20WE99PN Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codenot_compliant
Factory Lead Time23 weeks
Other featuresSTANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedCadmium (Cd)
Contact point genderMALE
Contact materialCOPPER ALLOY
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION/ENVIRONMENT/FLUID RESISTANT
Filter functionNO
IEC complianceNO
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE AND PANEL
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM PLATED
Shell materialALUMINUM ALLOY
Housing sizeE
Termination typeCRIMP
Total number of contacts23
Base Number Matches1

Preview

Download Datasheet
DTS

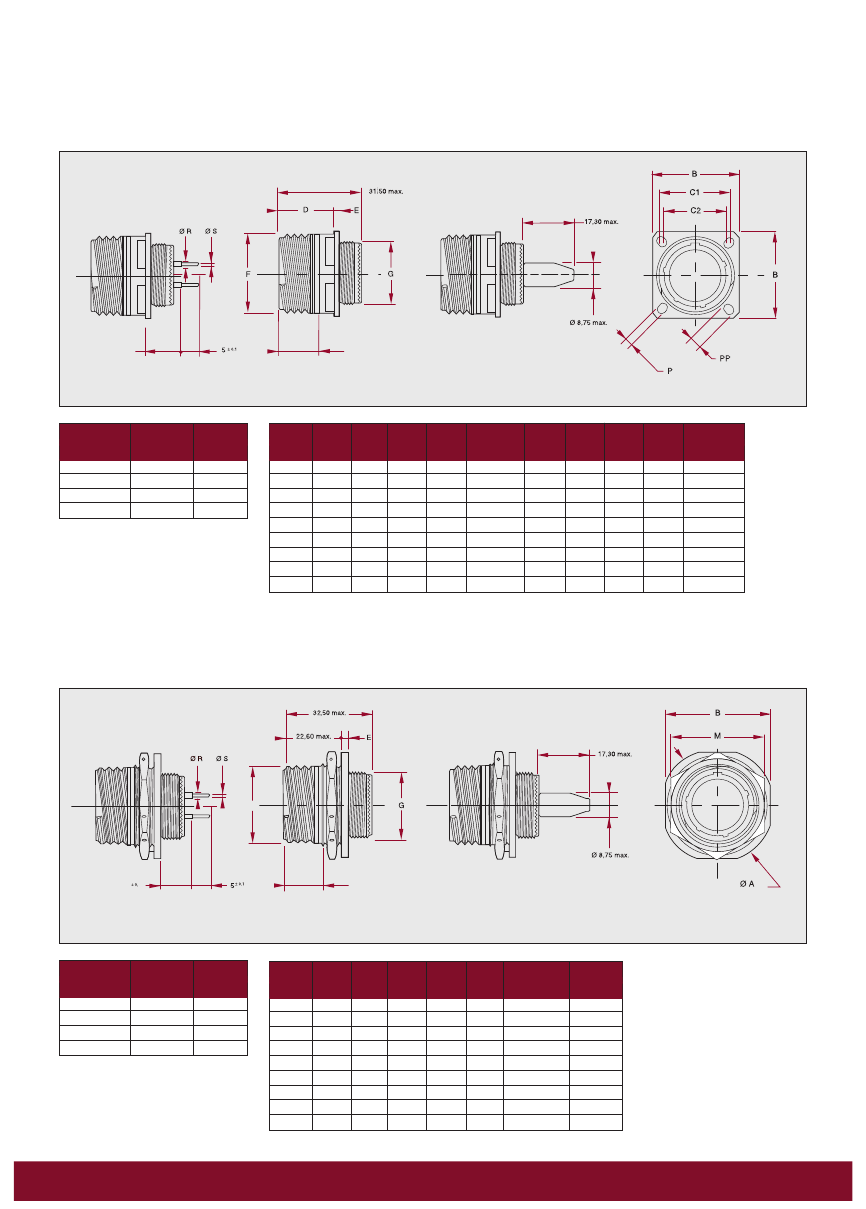

Receptacles / Embases
Square flange / Collerette carrée
Type 20
13,50
± 0,6
12,95 max.
With PCB contacts
Avec contacts à picots
With protect sleeves, see pages 18 and 19
Manchon avec “tétine”, voir pages 18 et 19
Contact size
Taille contact
22
20
16
12
R
± 0,05
S
+0
-- 0,05
Size
Taille
09
11
13
15
17
19
21
23
25
B
± 0,3
C1
18,26
20,62
23,01
24,61
26,97
29,36
31,75
34,93
38,10
C2
15,09
18,26
20,62
23,01
24,61
26,97
29,36
31,75
34,93
D
E
+0
-- 0,4
F
± 0,1
G
± 0,1
P
± 0,2
PP
± 0,2
Mass/Masse
Alu
*
10,00
16,00
22,00
31,00
46,00
51,00
65,00
78,00
97,00
max.
20,90
20,90
20,90
20,90
20,90
20,90
20,10
20,10
20,10
1,0.
1,5
2,2
3,80 ± 0,04
0,50.
0,70.
1,15
1,50 ± 0,1
23,80
26,20
28,60
31,00
33,30
36,50
39,70
42,90
46,00
2,10 / 2,50
2,10 / 2,50
2,10 / 2,50
2,10 / 2,50
2,10 / 2,50
2,10 / 2,50
2,10 / 3,20
2,10 / 3,20
2,10 / 3,20
15,75
18,90
22,10
25,25
29,95
31,55
34,70
37,90
41,10
11,90
14,90
17,90
21,90
24,90
27,90
30,90
33,90
36,90
3,25
3,25
3,25
3,25
3,25
3,25
3,25
3,91
3,91
5,49
4,93
4,93
4,93
4,93
4,93
4,93
6,15
6,15
PCB contacts part number
Référence contacts à picot
See/page 21
*
Mass without contact. Poids sans contact
Jam-nut mounting / Collerette ronde
Type 24
12,06
5
12,95 max.
With PCB contacts
Avec contacts à picots
With protect sleeves, see pages 18 and 19
Manchon avec “tétine”, voir pages 18 et 19
Contact size
Taille contact
22
20
16
12
R
± 0,05
S
+0
-- 0,05
Size
Taille
09
11
13
15
17
19
21
23
25
A
± 0,3
B
± 0,4
E
+ 0,1
- 0,7
F
± 0,1
G
± 0,1
M
Mass/Masse
mini / max.
Alu *
16,00
23,00
31,00
48,00
55,00
67,00
81,00
93,00
111,00
*
Mass without contact
Poids sans contact
1,0.
1,5
2,2
3,80 ± 0,04
0,50.
0,70.
1,15
1,50 ± 0,1
30,20
34,90
38,10
41,30
44,50
49,20
52,40
55,60
58,70
27,00
31,80
34,90
38,10
41,30
46,00
49,20
52,40
55,60
2,20
2,20
2,20
2,20
2,20
3,00
3,00
3,00
3,00
15,75
18,90
22,10
25,25
29,95
31,55
34,70
37,90
41,10
11,90 21,82 / 24,00
14,90 24,99 / 27,00
17,90 29,77 / 32,00
21,90 32,91 / 36,00
24,90 36,12 / 37,00
27,90 39,25 / 41,00
30,90 42,47 / 46,00
33,90 45,61 / 50,00
36,90 49,25 / 51,23
PCB contacts part number
Référence contacts à picot
See/page 21
11

D38999/20WE99PN Related Products

D38999/20WE99PN D38999/20WE99PA D38999/20WB98SN D38999/20WD19SN D38999/26WJ35SD D38999/20WG75PA D38999/20WG75PN D38999/20WD19SB
Description 23 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 23 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 6 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 19 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 128 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 4 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 4 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE 19 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code not_compliant compliant unknown unknown unknown compliant compliant compliant
Other features STANDARD: MIL-DTL-38999, EMI SHIELDED STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED STANDARD: MIL-DTL-38999, EMI SHIELDED COMPATIBLE CONTACTS:M39029/56-351 COMPATIBLE CONTACTS:M39029/56-348, EMI/RFI SHIELDED TYPE STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED STANDARD: MIL-DTL-38999, EMI SHIELDED STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED
Back shell type SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE PLUG RECEPTACLE RECEPTACLE RECEPTACLE
Connector type MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR
Contact to complete cooperation GOLD GOLD GOLD NOT SPECIFIED NOT SPECIFIED GOLD GOLD GOLD
Contact point gender MALE MALE FEMALE FEMALE FEMALE MALE MALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY NOT SPECIFIED NOT SPECIFIED COPPER ALLOY COPPER ALLOY COPPER ALLOY
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO NO NO NO
empty shell NO NO NO YES NO NO NO NO
Environmental characteristics CORROSION/ENVIRONMENT/FLUID RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT/FLUID/MOISTURE RESISTANT ENVIRONMENT/FLUID/MOISTURE RESISTANT CORROSION/ENVIRONMENT/FLUID RESISTANT CORROSION/ENVIRONMENT/FLUID RESISTANT ENVIRONMENT RESISTANT
Filter function NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO
MIL compliance YES YES YES YES YES YES YES YES
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO
Installation type CABLE AND PANEL PANEL PANEL PANEL CABLE CABLE AND PANEL CABLE AND PANEL PANEL
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface CADMIUM PLATED CADMIUM PLATED CADMIUM PLATED OLIVE DRAB CADMIUM PLATED CADMIUM PLATED CADMIUM PLATED CADMIUM PLATED CADMIUM PLATED
Shell material ALUMINUM ALLOY ALUMINUM ALLOY ALUMINUM ALLOY ALUMINUM ALLOY ALUMINUM ALLOY ALUMINUM ALLOY ALUMINUM ALLOY ALUMINUM ALLOY
Housing size E E B D J G G D
Total number of contacts 23 23 6 19 128 4 4 19
Is it Rohs certified? incompatible incompatible incompatible - - conform to conform to incompatible
Factory Lead Time 23 weeks 23 weeks 23 weeks 23 weeks 23 weeks - - 23 weeks
Contact completed and terminated Cadmium (Cd) Cadmium (Cd) - - - Cadmium (Cd) Cadmium (Cd) Cadmium (Cd)
Termination type CRIMP SOLDER SOLDER - SOLDER CRIMP CRIMP SOLDER
Maker - - TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity
