Specifications

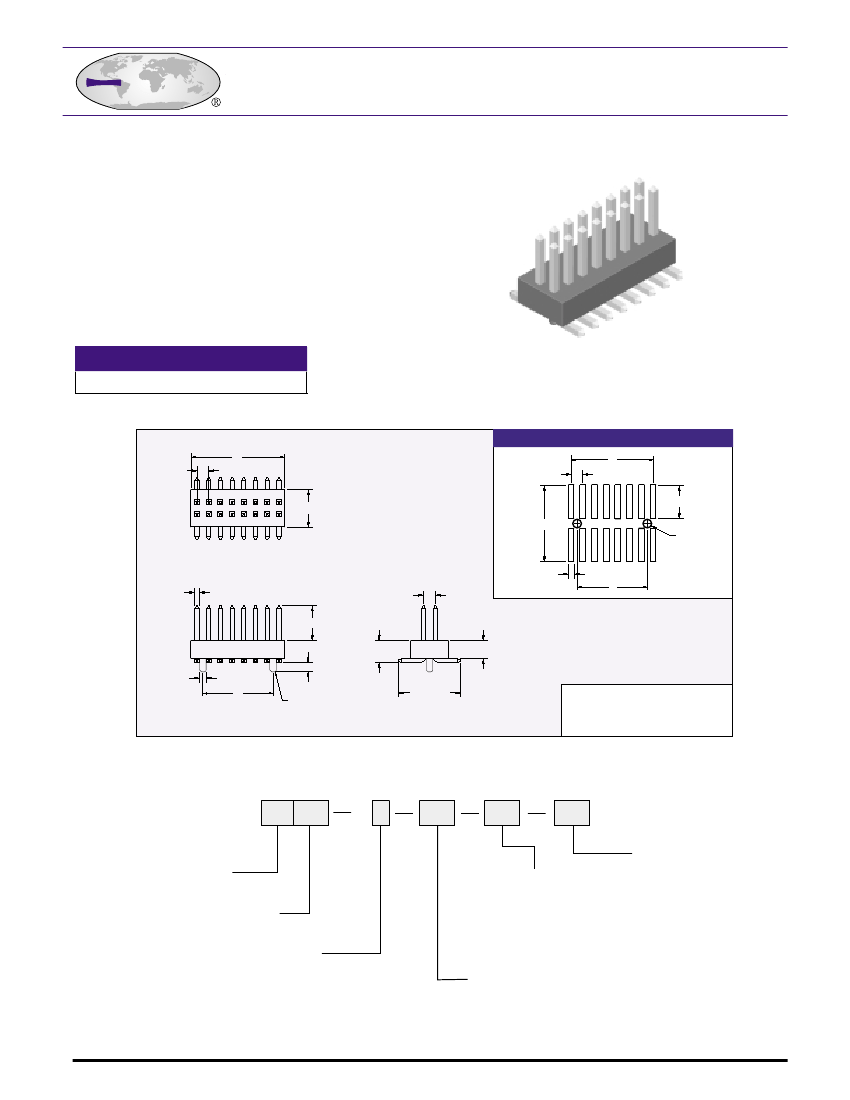

.039 [1.00] SMT Strip Header
9800 Series Headers
Insulator Material: LCP 94V-0 UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold over .000050 Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Max. Processing Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
SUGGESTED MATING CONNECTOR
98XXS-AX-XX-XX (PAGE F-03)
PCB LAYOUT
A
.039 [1.00]
B
.039 [1.00] TYP
.
.112 [2.85]
.256 [6.50]
Ø.029 [.74]
.125 [3.17]
.025 [.64]
.012 [0.30] SQ.
CONTACT LENGTH
.071 [1.80]
.028 [.70]
.025 [.64]
C
LOCATING PEG
(OPTIONAL)
.205 [5.20]
.059 [1.50]
.039 [1.00]
C
A
= .039 x No. of Pos.
B
= .039 x (No. of Cont./2 -1)
C
= .039 x (No. of Cont./2 -2)
DIMENSIONS ARE IN INCHES & [MM]
PART NUMBERING
98 XX
SERIES CODE
.039 HEADERS
A X
XX
XX
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING AVAILABILITY
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
03
= Au Flash
Au Flash
85
=15µ”Au
15µ”Au
90
=30µ”Au
30µ”Au
NO. OF CONTACTS
06 - 98
100 =
01
LOCATING PEG
1
= WITH LOCATING PEG
0
= WITHOUT LOCATING PEG
CONTACT LENGTH OPTIONS
01
= .075 [1.90]
CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS
