0603NPOID470G: DescriptionCeramic Capacitor, Ceramic, 100V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.000047uF, 0603,; File Size44KB，2 Pages; ManufacturerKOA

Download Datasheet Parametric View All

0603NPOID470G Overview

Ceramic Capacitor, Ceramic, 100V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.000047uF, 0603,

0603NPOID470G Parametric

Parameter Name	Attribute value
Objectid	718414297
package instruction	, 0603
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.000047 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Special Tolerances Available-See Factory
dielectric materials	CERAMIC
high	0.9 mm
length	1.6 mm
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Paper, 10 Inch
positive tolerance	2%
Rated (DC) voltage (URdc)	100 V
series	0603
size code	0603
Temperature characteristic code	NP0
Temperature Coefficient	30ppm/Cel ppm/°C
width	0.81 mm

Preview

Download Datasheet

View All

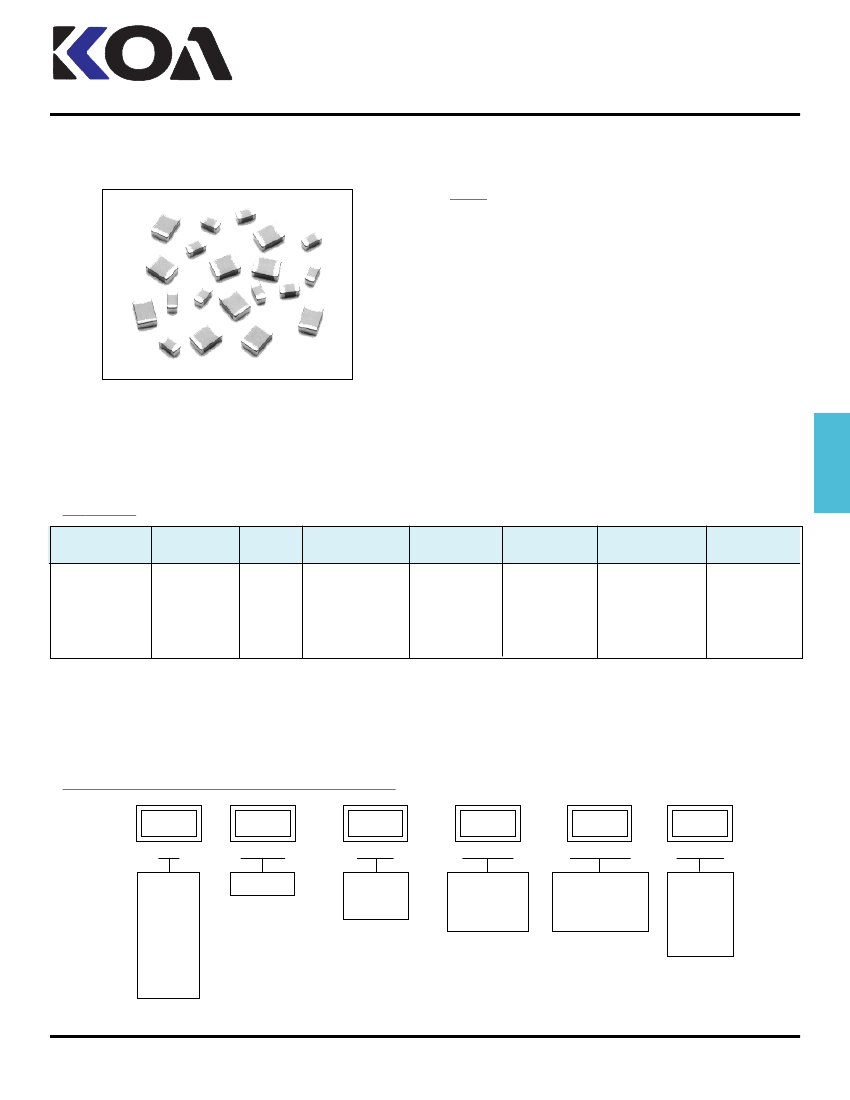

CERAMIC CHIP CAPACITORS

SPEER ELECTRONICS, INC.

NPO

• Small size

• High Q factor

• Wide range of capacitance values

• Available in 50, 100 and 200 volt ratings

• Low TCC

CHIP

CAPACITORS

Operating

Temperature

-55°C to +125°C

Insulation

Reistance

+25°C

100,00MΩ

min or 1000

MΩ -µF

min whichever

is less

0805

Size

0402

0603

0805

1206

1210

1812

1825

See

page 82

RATINGS

Capacitance

Voltage

Dissipation

Test

Tolerance

Ratings

Factor

T.C.C.

Voltage

±0.5pf

25V

±0.25pf

50V

For Values

0

±

30 ppm/°C 1.0

±

0.2 Vrms

±2%

100V

>30pF: 0.1% max

0.5pF ~ 0.033

µ

F

±1%

200V

±5%

±10%

**

** Special tolerances available, contact the factory.

Capacitance

Range

ORDERING & SPECIFYING INFORMATION

NPO

Dielectric

NPO

H

Voltage

H = 50V

I = 100V

J = 200V

T

Packaging

T = 7" Paper

D = 10" Paper

TE = 7” Plastic

B = 10” Plastic

101

Capacitance

2 significant digits

+ no. of zeros.

R indicates

decimal point.

K

Tolerance

K =

±10%

J =

±5%

G =

±2%

F =

±1%

D =

±0.5pf

C =

±0.25pf

TELEPHONE:

814-362-5536

83

FAX:

814-362-8883
