SERIES 28
HiPer-D
®
Accessories
Low-Profile EMI Backshell, two-piece, elliptical entry, non-environmental
289T005 top entry, 289S005 side entry
Lightweight, low profile space-saving two piece backshell fits securely into
groove in HiPer-D® connectors. Fits standard HiPer-D® pin and socket connectors
(280-018P, 280-019S) and Combo HiPer-D® connectors (280-046P and 280-047S).
Terminate cable shield with optional Band-Master™ATS clamping band. Elliptical
cable entry provides room for large wire bundles. Machined aluminum alloy or
stainless steel backshell consists of two interlocking housings and two 300 series
stainless steel screws. Overlapping seam improves EMI shielding performance.
Compatible with Glenair Series 77 lipped heat-shrink boots. Non-environmental.

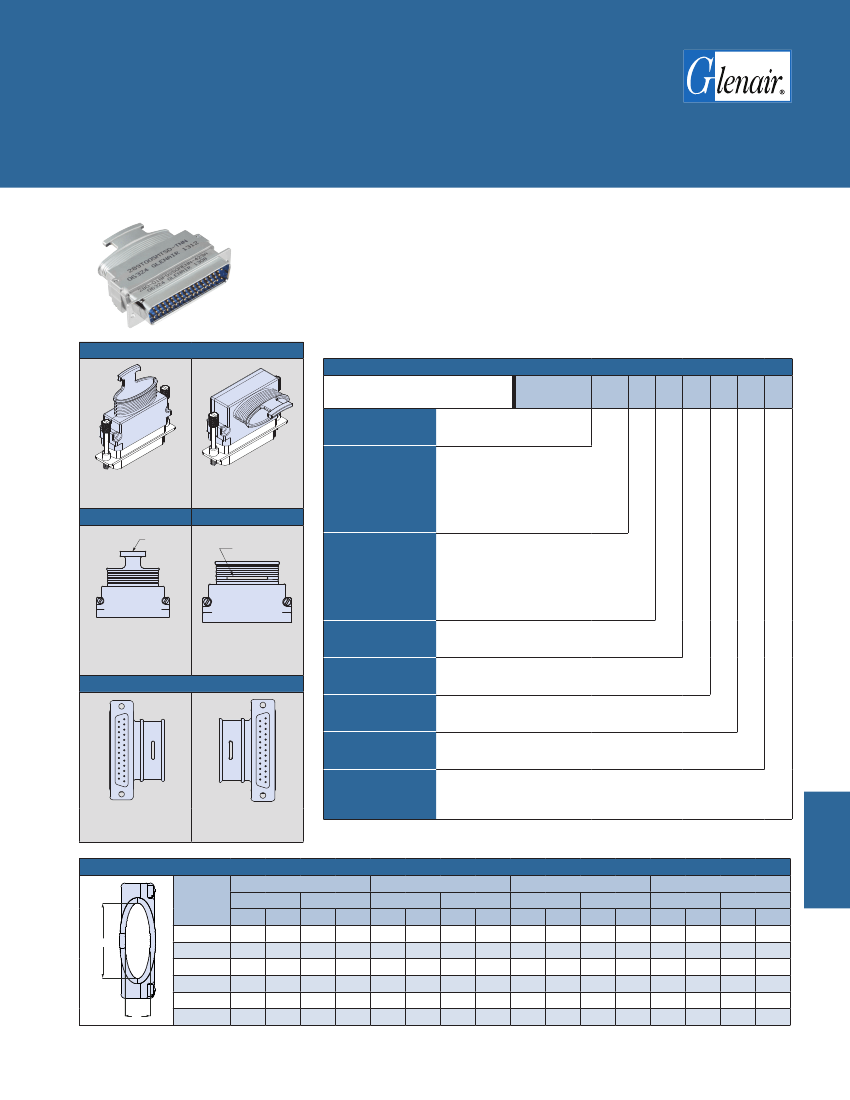

Ordering Information
Sample Part Number
Basic Part Number
289T005
289S005
Entry Style
289T005
MT
3
B
-N
N
K
289T005
= Top Entry (Fig.
1)
289S005
= Side Entry (Fig.
2)
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel
(RoHS)
1
= Shell Size 1
2
= Shell Size 2
3
= Shell Size 3
4
= Shell Size 4
5
= Shell Size 5
6
= Shell Size 6
A, B, C or D
See Cable Entry Size Table Below
N
= Supplied without Qwik Ty™
T
= With Qwik Ty™ Strain Relief (Fig.
3)
N
= Supplied without Slots
S
= With Slots for Terminating Individual Shields (Fig.
4)
N
= Supplied without Band
K
= Supplied with Pre-Coiled Band (600-052-1)
Omit for 289T005. Applies only to 289S005.
1
= Cable Exit on Long Side of Shell Keystone (Fig.
5)
2
= Cable Exit on Short Side of Shell Keystone (Fig.
6)
Top Entry
289T005
Fig. 1
Side Entry
289S005
Fig. 2
Finish
Qwik Ty™ Option
QWIK-TY
Slot Option
SLOT
Shell Size
Qwik Ty™
Fig. 3
Fig. 4
Slots
Entry Size
Qwik Ty™ Option
Slot Option
EMI/RFI Band
Cable Entry
Direction
Cable Entry Direction
Long Side Entry (1)
Fig. 5
Short Side Entry (2)
Fig. 6
E
F
Shell
Size
1
2
3
4
5
6
.143
.188
.245
.291
.326
.376
In.
E
SIZE A
mm
In.
F
3.63
4.78
6.22
7.39
8.28
9.55
.143
.188
.245
.291
.326
.376
mm
3.63
4.78
6.22
7.39
8.28
9.55
.195
.256
Cable Entry Size
SIZE B
E
F
In. mm In. mm
4.95
6.50
.195
.256
F
.242 6.15
.480 12.19
4.95
6.50
In.
E
SIZE C
mm
In.
F
.242
.375
mm
6.15
9.53
.438 11.13
.688 17.48
In.
E
SIZE D
mm
In.
F
.375
.375
mm
9.53
9.53
.550 13.97
.800 20.32
.770 19.56
.863 21.92
.375 9.53 .780 19.81
.375 9.53 1.260 32.00
.485 12.32 1.250 31.75
.550 13.97 1.323 33.60
.375 9.53 1.125 28.58
.375 9.53 1.813 46.05
.485 12.32 1.750 44.45
.550 13.97 1.875 47.63
.375 9.53
.375 9.53
.485 12.32
.550 13.97
F-5
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Accessories
Low-Profile EMI Backshell, two-piece, elliptical entry, non-environmental
289T005 top entry

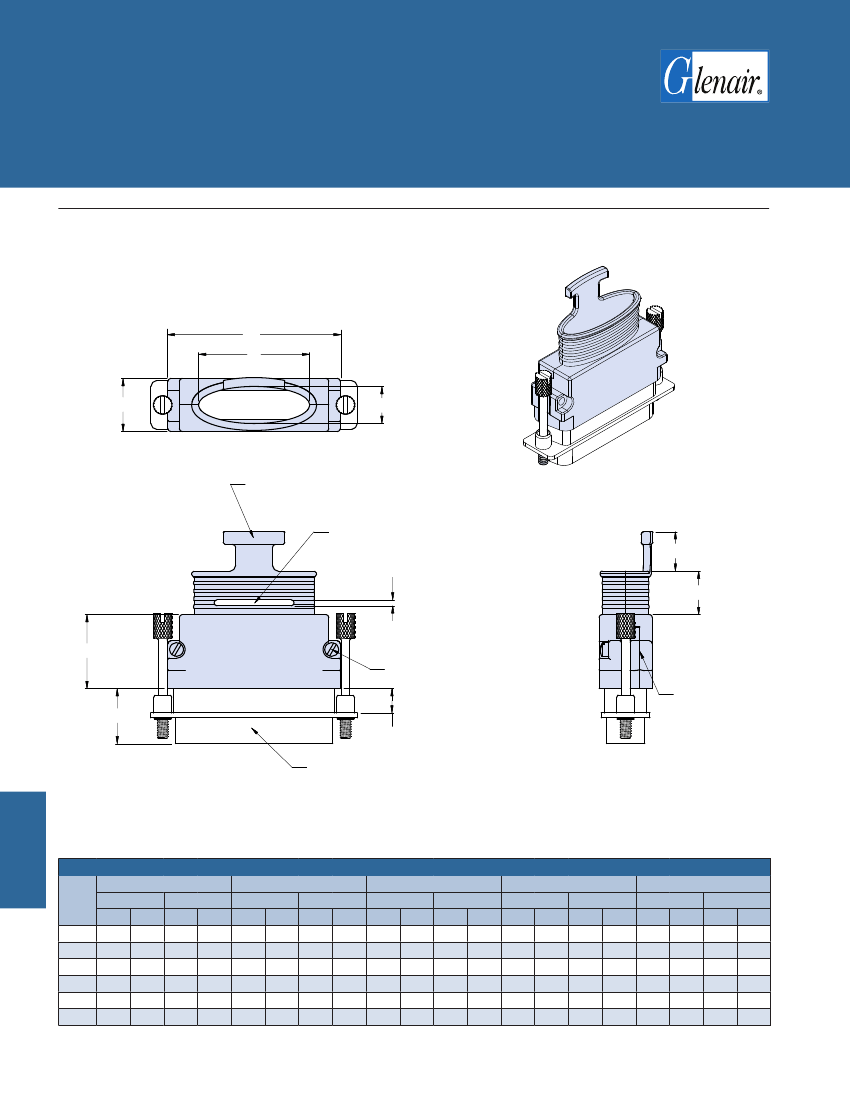

289T005 DIMENSIONS
A
E
B
F
QWIK TY OPTION
SLOT OPTION
.41 (10.4)
.06 (1.5)
.44 (11.2)
.750 (19.05)
FILLISTER HEAD, CAPTIVE
SCREW HARDWARE
.57 (14.4)
.25 (6.3)
CONNECTOR SHOWN FOR REF. ONLY
OVERLAPPING
EMI JOINT
F
Shell
Size
1
2
3
4
5
6
F-6
.880 22.35
1.210 30.73
1.750 44.45
2.400 60.96
2.305 58.55
2.400 60.96
A Max
In. mm
B Max
In. mm
.509 12.93
.509 12.93
.509 12.93
.509 12.93
.620 15.75
.683 17.35
Entry Size A
E
F
In. mm In. mm
.143 3.63
.188 4.78
.245 6.22
.291 7.39
.326 8.28
.376 9.55
.143 3.63
.188 4.78
.245 6.22
.291 7.39
.326 8.28
.376 9.55
Dimensions
Entry Size B
E
F
In. mm In. mm
.195 4.95
.256 6.50
.550 13.97
.800 20.32
.770 19.56
.863 21.92
.195 4.95
.256 6.50
Entry Size C
E
F
In. mm In. mm
.242 6.15
.480 12.19
.242 6.15
.375 9.53
Entry Size D
E
F
In. mm In. mm
.438 11.13
.688 17.48
.375 9.53
.375 9.53
.375 9.53
.375 9.53
.485 12.32
.550 13.97
.375 9.53 .780 19.81
.375 9.53 1.260 32.00
.485 12.32 1.250 31.75
.550 13.97 1.323 33.60
.375 9.53 1.125 28.58
.375 9.53 1.813 46.05
.485 12.32 1.750 44.45
.550 13.97 1.875 47.63
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Accessories
Low-Profile EMI Backshell, two-piece, elliptical entry, non-environmental
289S005 side entry

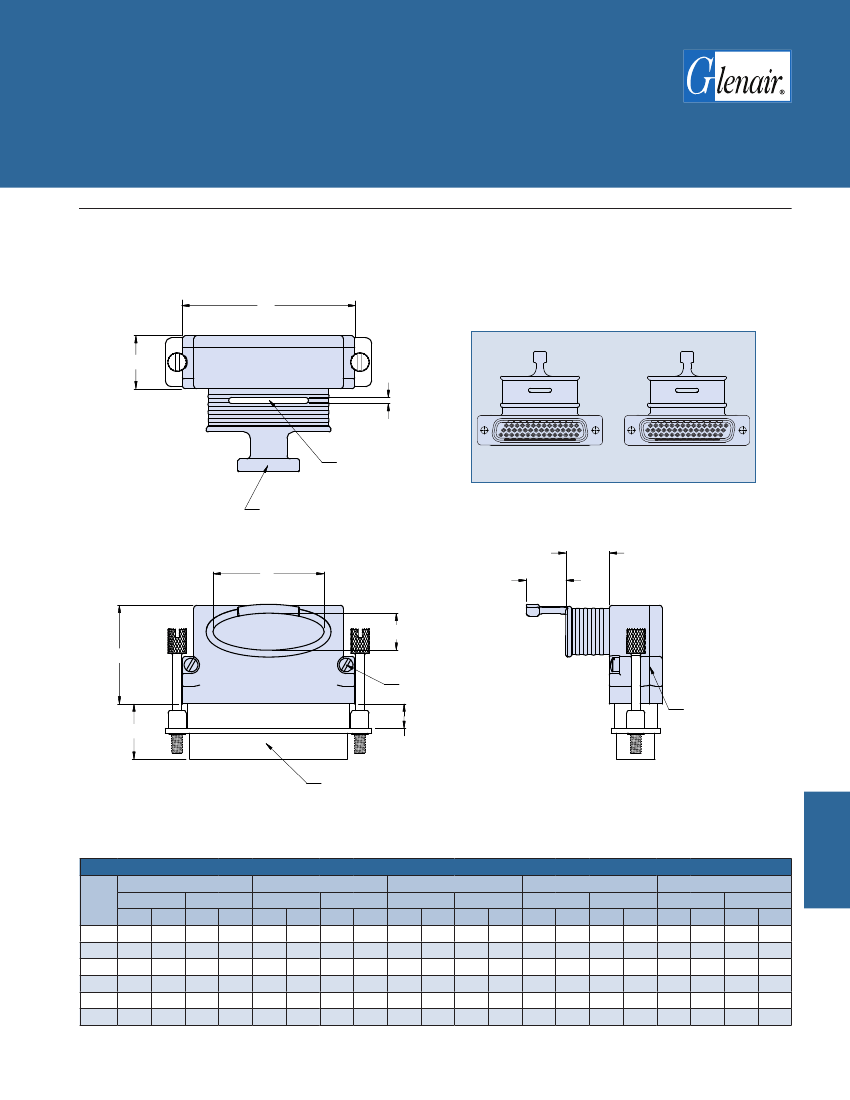

289S005 DIMENSIONS
A
Cable Exit Direction
B
.06 (1.5)
SLOT OPTION
DIRECTION 2
CABLE EXITS ON
SHORT SIDE OF
KEYSTONE
DIRECTION 1
CABLE EXITS ON LONG
SIDE OF KEYSTONE
QWIK TY OPTION
.44 (11.2)
E
.41 (10.4)
F
1.00 (2.5)
FILLISTER HEAD, CAPTIVE
SCREW HARDWARE
.57 (14.5)
OVERLAPPING
EMI JOINT
.25 (6.4)
CONNECTOR SHOWN FOR REF. ONLY
(SEE 280-018P & 280-019S)
Shell
Size
1
2
3
4
5
6
.894 22.71
1.218 30.94
1.760 44.70
2.408 61.16
2.297 58.34
2.422 61.52
A Max
In. mm
B Max
In. mm
.550 13.97
.550 13.97
.550 13.97
.550 13.97
.654 16.61
.716 18.19
Entry Size A
E
F
In. mm In. mm
.143 3.63
.188 4.78
.245 6.22
.291 7.39
.326 8.28
.376 9.55
.143 3.63
.188 4.78
.245 6.22
.291 7.39
.326 8.28
.376 9.55
Dimensions
Entry Size B
E
F
In. mm In. mm
.195 4.95
.256 6.50
.550 13.97
.800 20.32
.770 19.56
.863 21.92
F
Entry Size C
E
F
In. mm In. mm
.242 6.15
.480 12.19
.242 6.15
.375 9.53
.195 4.95
.256 6.50
Entry Size D
E
F
In. mm In. mm
.438 11.13
.688 17.48
.375 9.53
.375 9.53
.375 9.53
.375 9.53
.485 12.32
.550 13.97
F-7
.375 9.53 .780 19.81
.375 9.53 1.260 32.00
.485 12.32 1.250 31.75
.550 13.97 1.323 33.60
.375 9.53 1.125 28.58
.375 9.53 1.813 46.05
.485 12.32 1.750 44.45
.550 13.97 1.875 47.63
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
