477-006

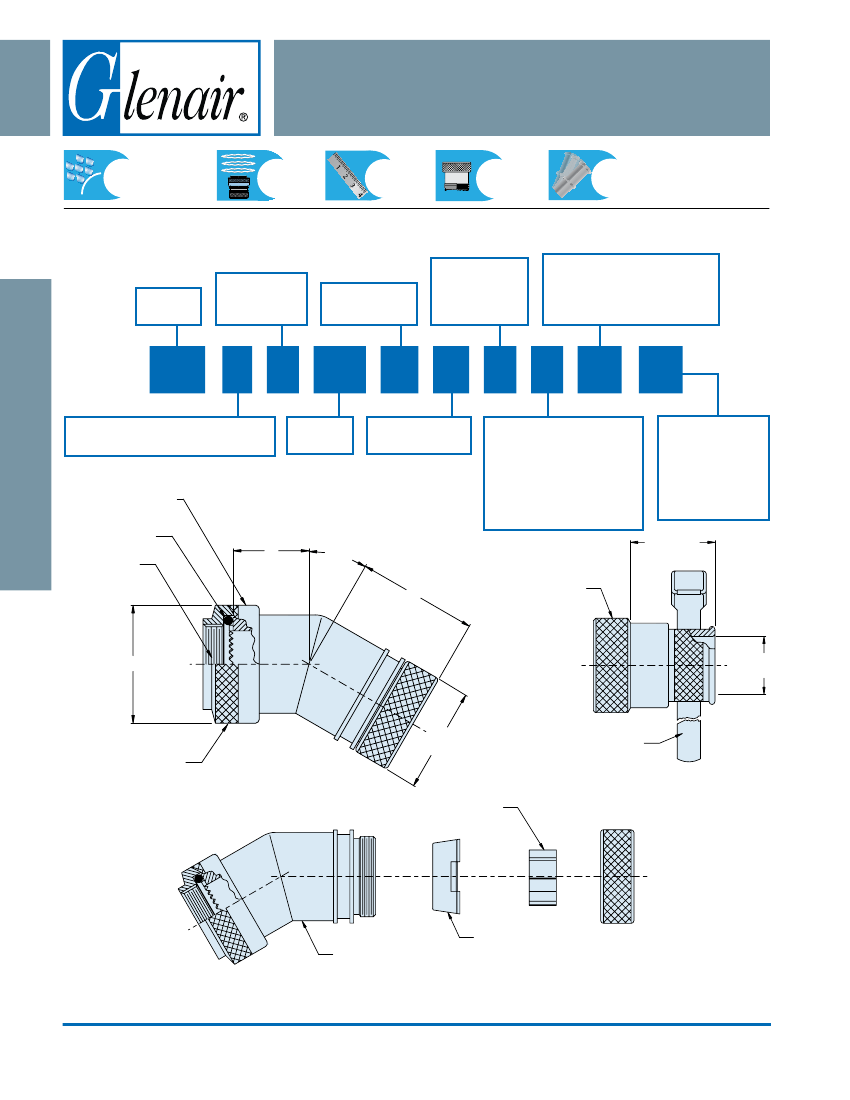

StarShield™ 30˚ EMI/RFI Shield Termination
Backshell
For MIL-DTL-38999 Series III & IV Connectors
Standard
Length
StarShield™
Backshells
Environmental
Self
Nesting
Self
Nestor
Rear End
Options
High
Ferrule Count
StarShield™ 30° environmental, high ferrule count backshell with self-nestor coupling
Angular
Function
Z
- 30̊
Ferrule
Quantity
Code
(See Table I)
Drilled Star
DS
= Drilled Star - Optional
(Omit If Not Required)
(See note 4)
Product
Series
Finish Code
(See Table II)
477
H
z
006
Basic
Number
NF
17
6
G
DS
-
T
Shrink Boot
Option
T
= Shrink boot -
optional
(Omit for None)
(See Table III)
1.17 Max
B
Connector Designator
H
=
MIL-DTL-38999 Series III & IV
Order No.,
(See Table I)
Over Travel Coupling
(See Note 5)
O-ring
A Thread
D
30°
E
Rear End Options
B
= Banding Nut With
Band
C
= Conduit Backshell
G
= Gland Nut
T
= Tinel Nut With Tinel
Ring for Single Braid
Banding Nut
SYMBOL B
B Max
Banding Nut
with Band
H
Dia
Knurl Style Mfr
Option - Typ
SYMBOL Z
30°
C
Max
Band
(See P/N 601-040)
Star
(See Note 4)
SYMBOL G
Gland Nut
Elbow Assembly
Compression
Ring Assembly
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-26
E-Mail: sales@glenair.com
477-006
StarShield™ 30˚ EMI/RFI Shield Termination
Backshell
For MIL-DTL-38999 Series III & IV Connectors
Table I: Dimensions
Order
No
09
11
13
15
17
19
21
23
25
Connector
Shell Size
Ref
A/9
B/11
C/13
D/15
E/17
F/19
G/21
H/23
J/25
A Thread
ISO Metric
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
B Dia Max C Dia Max
.75 (19.0)
.87 (22.0)
1.00 (25.5)
1.20 (30.5)
1.32 (33.5)
1.46 (37.0)
1.52 (38.5)
1.65 (42.0)
1.83 (46.5)
.69 (17.5)
.85 (21.5)
.89 (22.5)
1.00 (25.5)
1.12 (28.5)
1.24 (31.5)
1.38 (35.0)
1.50 (38.0)
1.61 (41.0)
D Max
.45(11.5)
.47(12.0)
.49(12.5)
.51(13.0)
.53(13.5)
.55(14.0)
.57(14.5)
.59(15.0)
.61(15.5)
E Max
.94 (24.0)
.96 (24.5)
.98 (25.0)
1.00 (25.5)
1.02 (26.0)
1.04 (26.5)
1.06 (27.0)
1.08 (27.5)
1.10 (28.0)
F
±.003 (.08)
.435 (11.0)
.623 (15.8)
.746 (18.9)
.871 (22.1)
.996 (25.3)
1.121 (28.5)
1.245 (31.6)
1.371 (34.8)
1.371 (34.8)
G Thread
ISO Metric
M12X 1 - 6g
M15X 1 - 6g
M18 X 1 - 6g
M22 X 1 - 6g
M25 X 1 - 6g
M28 X 1 - 6g
M31 X 1 - 6g
M34 X 1 - 6g
M37 X 1 - 6g
H ±.004
(0.10)
.315 ( 8.00)
.531 (13.50)
.591 (15.00)
.709 (18.00)
.827 (21.00)
.945 (24.00)
1.063 (27.00)
1.181 (30.00)
1.299 (33.00)
Ferrule Quantitiy
(See Note 4)
Std.
1
2
3
5
6
7
9
10
12
Optional
-
-
-
-
7
-
11
11,12,13,15
13,14,15,17,18
Table II: Material and Finish Options
Code
Material; Finish Description
M
Aluminum; electroless nickel
MT Aluminum; nickel - PTFE
Aluminum; CAD/O. D. over
NF
electroless nickel
Aluminum; zinc nickel/O. D. over
ZN
electroless nickel
Aluminum; zinc nickel/black over
ZR
electroless nickel (RoHS)
Z1 Stainless steel; passivate
ZM Stainless steel; electroless nickel
Table III: Shrink Boot
Shrink Boot Ref. Part
Shell Size
Number
09
770-001S1 04
11
770-001S1 06
13
770-001S1 06
15
770-001S1 07
17
770-001S1 07
19
21
23
25
770-001S1 08
770-001S1 08
770-001S1 08
770-001S1 09
Notes:
Materials/Finish
Backshell, elbows, coupling & gland
Al alloy or CRES/
nut, compression ring, star
Table III
O-ring
Tinel ring-nickel
Band
Silicone/n.a.
Titanium alloy/n.a.
CRES/passivate
1. Assembly identified with
manufacturer’s name and P/N, space
permitting.
2. For effective grounding, connector
with conductive finish should be used.
3. Glenair 600 series backshell assembly
tools are recommended for assembly
and installation.
4. Star not supplied with order number
09. Drilled star is available on order
numbers 15-25 only. If optional ferrule
qty per Table 1 is selected, one split
and one solid star will be supplied
5. Over-travel coupling design provides
self-seating & self-locking functionality
eliminating lock-wire requirements.
6. Ferrule kit sold separately.
687-764 ferrule and HST device kit
687-809 ferrule and sealing device kit
687-748 solder ferrule
687-841-01 HST flex device
.33 Max
G Thread
SYMBOL C
Conduit
Adapter
SYMBOL T
Tinel Nut
F
.94 Max
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-27
E-Mail: sales@glenair.com
StarShield™
Backshells
B
