LX2172IDMT datasheet, PDF - EEWORLD Datasheet

LX2172IDMT: DescriptionSwitching Regulator, Current-mode, 2.8A, 115kHz Switching Freq-Max, PDSO8, PLASTIC, SOIC-8; CategoryPower/power management The power supply circuit; File Size335KB，5 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

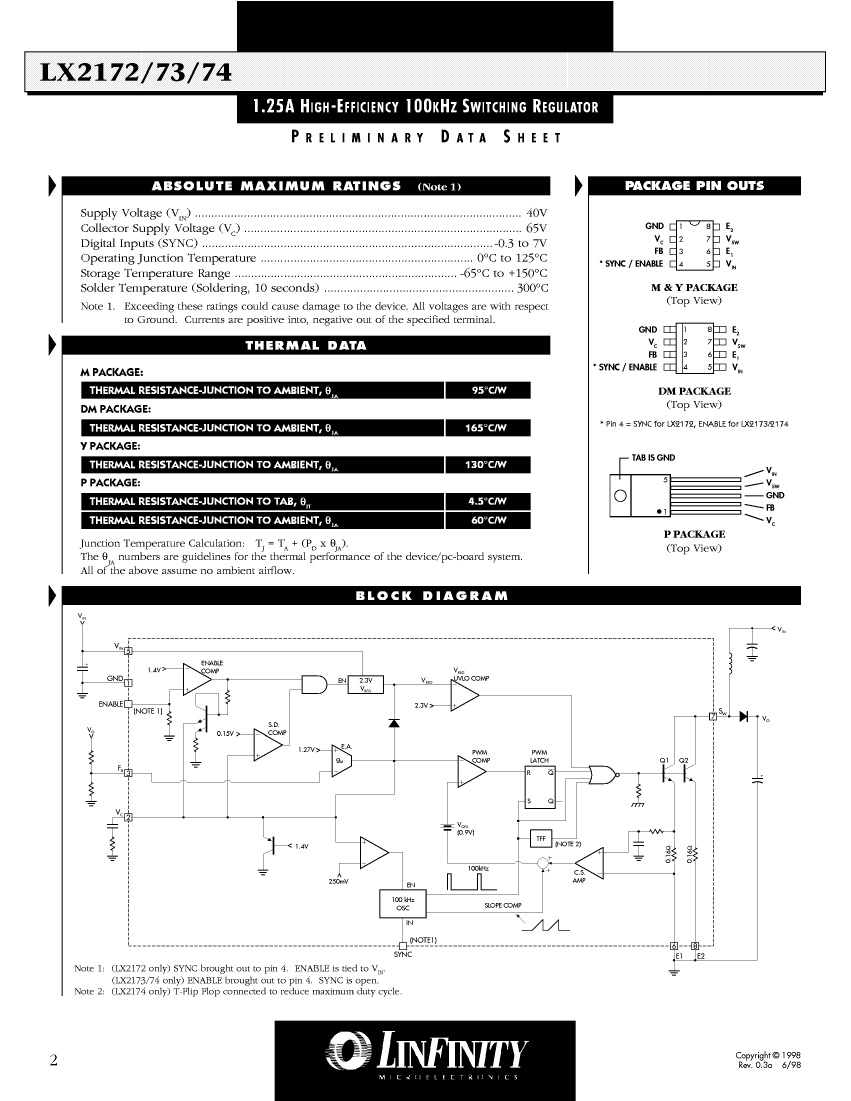

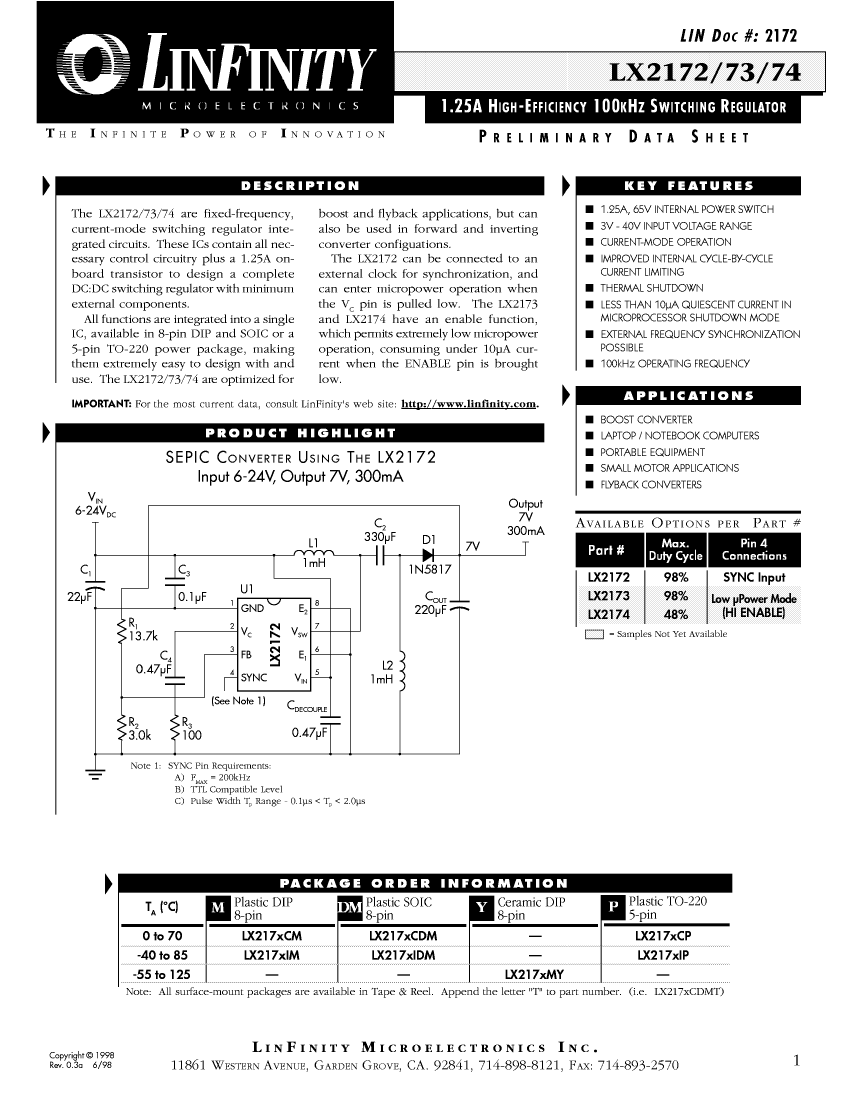

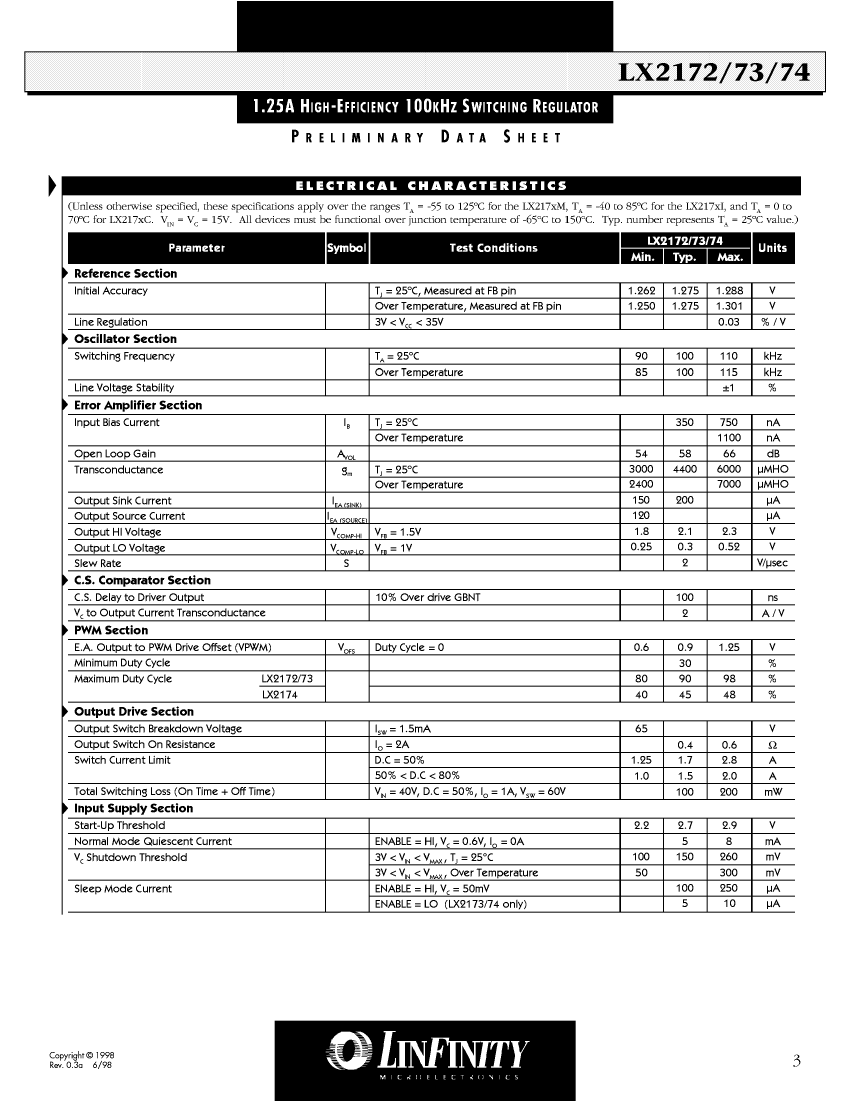

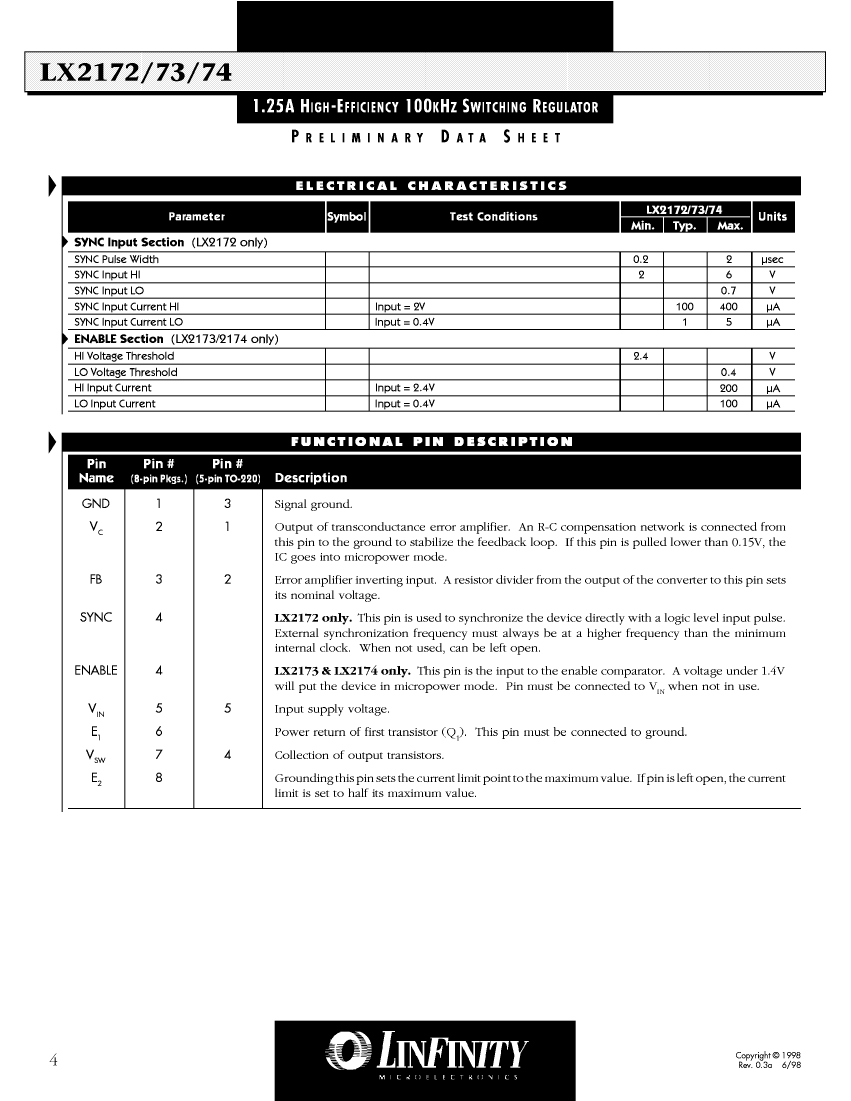

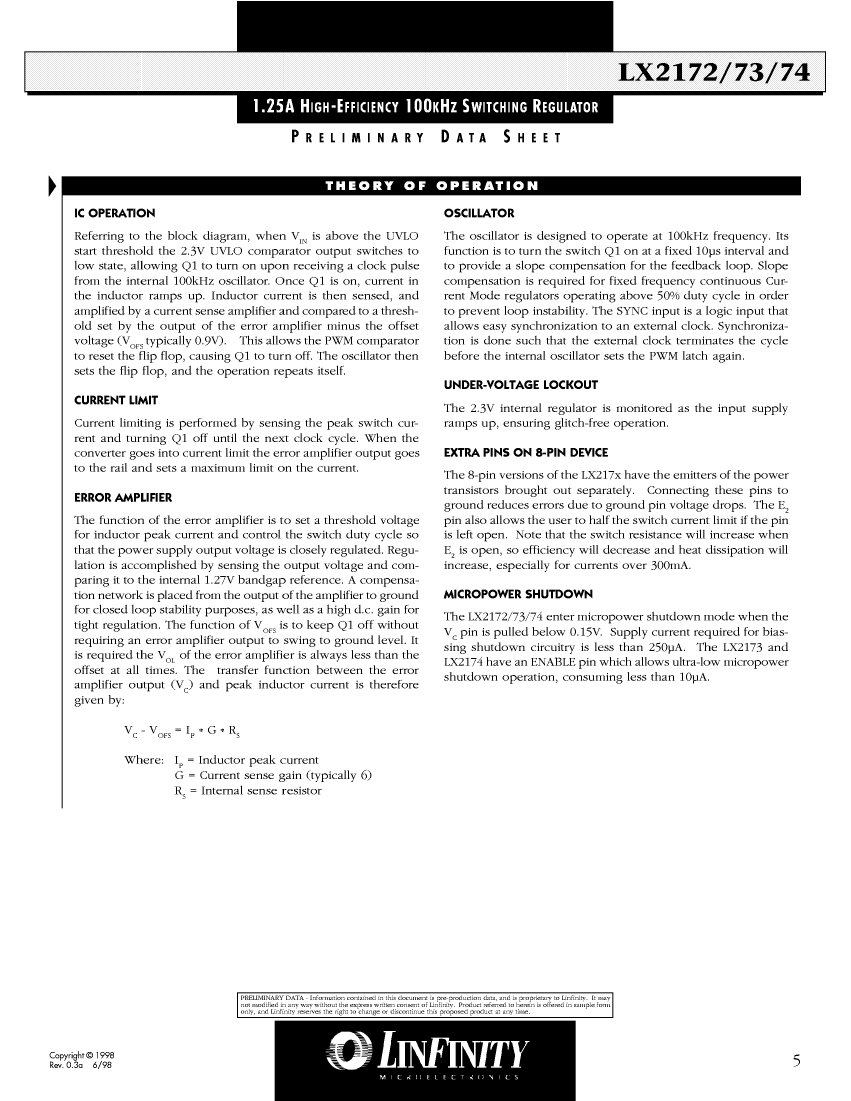

LX2172IDMT Overview

Switching Regulator, Current-mode, 2.8A, 115kHz Switching Freq-Max, PDSO8, PLASTIC, SOIC-8

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microsemi
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	35 V
Minimum input voltage	3 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G8
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	2.8 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	115 kHz
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm
Base Number Matches	1
