3-175629-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-175629-7

3-175629-7: Description7 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-175629-7 Overview

7 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE

3-175629-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	1500 PER REEL MOUNTED
body width	0.118 inch
subject depth	0.134 inch
body length	0.402 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	175629
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

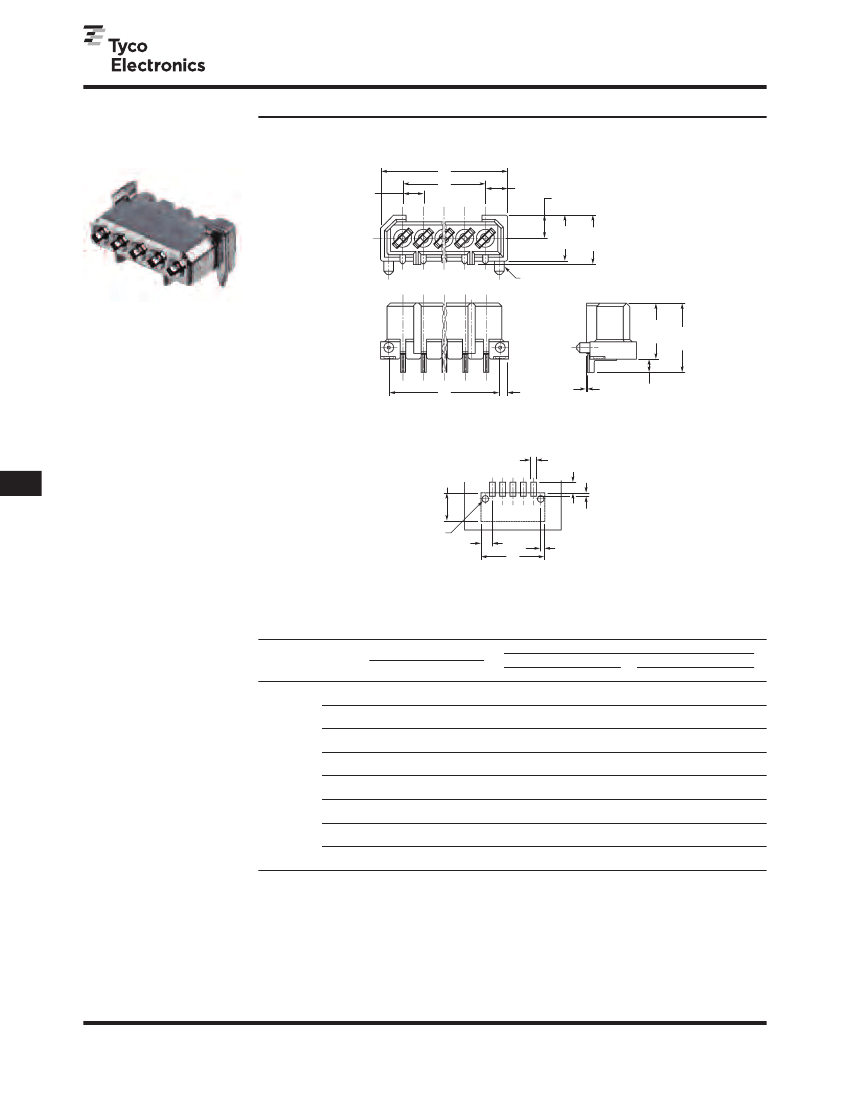

Ribbon Cable Interconnect Solutions

1-Row Horizontal Receptacles

1.25

Pitch

[.049]

1.35

[.053]

1.40

[.055]

2.80 3.00

[.110] [.118]

Optional

Mounting Boss

Material and Finish

Housing

— Black PPS, UL 94V-0

rated

Contacts

— Phosphor bronze,

post tin plated over nickel underplate

3.40

[.134]

4.20

[.165]

0.50

[.020]

0.05

[.002]

0.80

[.031]

3.40

[.134]

0.70

Min.

[.028]

1.30

[.051]

.050

[1.27]

Centerline Ribbon Cable Connectors

1-Row Horizontal Receptacles

Ø 0.80

[.031]

1.35

[.053]

0.70

Min.

[.028]

0.50

[.020]

PCB Mounting Layout

1.25 Fine Pitch (FP) - 1-Row Horizontal Receptacles

No. of

Pos.

2.35

Slot Key

6.45

.254

7.70

.303

8.95

.352

10.20

.402

11.45

.451

13.95

.549

22.70

.894

26.45

1.041

Dimensions

3.75

.148

5.00

.197

6.25

.246

7.50

.295

8.75

.345

11.25

.443

20.00

.787

23.75

.935

5.45

.215

6.70

.264

7.95

.313

9.20

.362

10.45

.411

12.95

.510

21.70

.854

25.45

1.002

Part Numbers

With Mounting Bosses

Without Mounting Bosses

Tape

Bag

Tape

Bag

3-175637-4

3-175637-5

3-175637-6

3-175637-7

3-175637-8

4-175637-0

—

3-174638-4

3-174638-5

3-174638-6

3-174638-7

3-174638-8

4-174638-0

4-174638-7

5-174638-0

3-175629-4

3-175629-5

3-175629-6

3-175629-7

3-175629-8

4-175629-0

4-175629-7

—

3-174903-4

3-174903-5

3-174903-6

3-174903-7

3-174903-8

4-174903-0

4-174903-7

5-174903-0

Catalog 82012

Revised 10-09

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-8706-080-208
