250T07W561MT4E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 250T07W561MT4E

250T07W561MT4E: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.00056uF, Surface Mount, 0402, CHIP; File Size617KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric View All

250T07W561MT4E Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.00056uF, Surface Mount, 0402, CHIP

250T07W561MT4E Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1265150856
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.54
capacitance	0.00056 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e0
Manufacturer's serial number	250T07
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
size code	0402
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

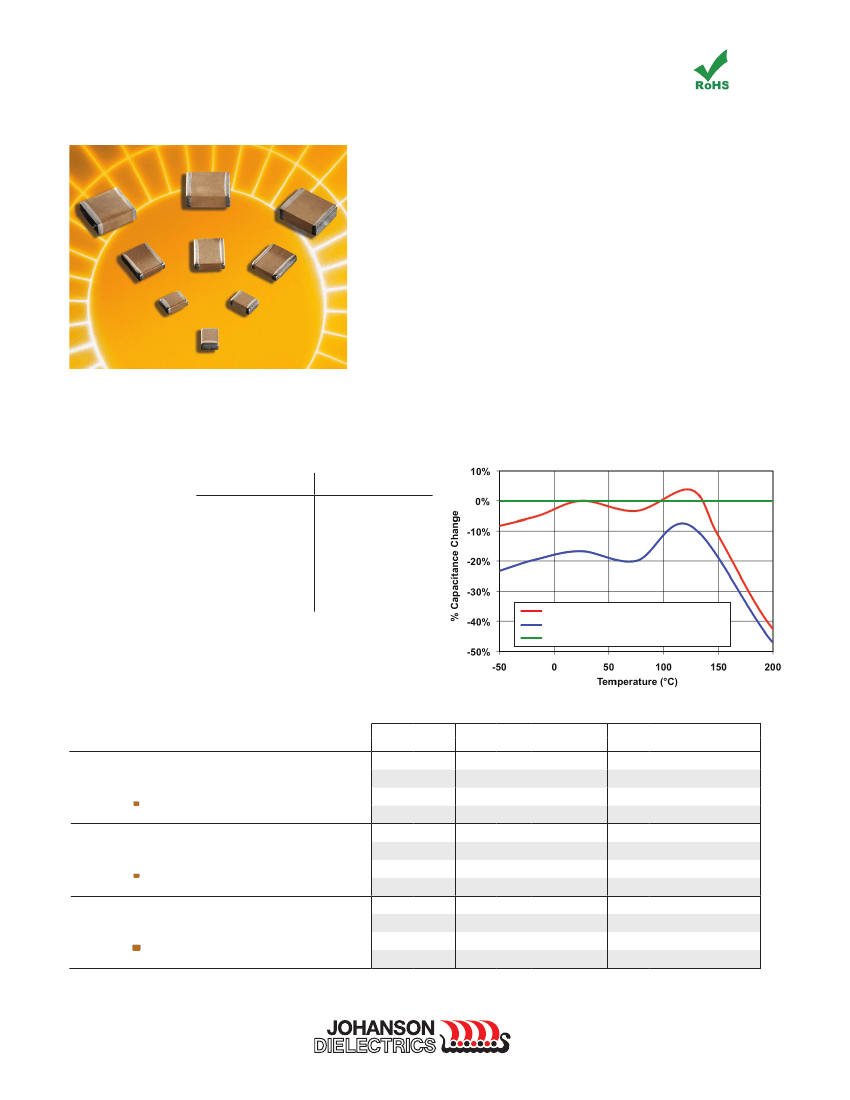

HigH TemperaTure Surface mounT

MLCC

200°C

FEAtUrEs

for Frequency stability

• No De-rating Required

•

Maintain Capacitance at High temperature

• No Conformal Coating Required

APPLICAtIONs

•

Deep Hole Drilling Electronics

• High Temperature Modules

• Industrial Equipment

• Automotive • Avionics

ELECtrICAL CHArACtErIstICs

NPO

OPErAtING rANGE:

tEMPErAtUrE

COEFFICIENt:

200°C CAP. DrOP:

DIssIPAtION FACtOr:

AGING rAtE:

INsULAtION

rEsIstANCE:

WItHstANDING

VOLtAGE:

-55 to +200°C

0±30ppm/°C

(-55to+125°C)

-0.5% max.

0.001 (0.1%) max.

None

X7r

-55 to +200°C

0±15%

(-55to+125°C)

-45% max.

0.020 (2.0%) max.

<1.0% per

Temperature - Voltage Coefficient

25°C IR >100GΩ or 1000ΩF (whichever

200°C IR >1ΩF or 100MΩ

is less)

2.5 X WVDC for ratings

≤

200 VDC

1.5 X WVDC for ratings 201-500 VDC

X7R Temp. Only

X7R Temp. & Rated Voltage (100%)

NPO Temp. & Rated Voltage (100%)

MECHANICAL CHArACtErIstICs

rAtED

VOLtAGE

25 VDC

50 VDC

100 VDC

200 VDC

25 VDC

50 VDC

100 VDC

200 VDC

25 VDC

50 VDC

100 VDC

200 VDC

t07/0402

E/B

Inches

.040 ±.004

.020 ±.004

.025 Max.

.008±.004

Inches

.063 ±.008

.032 ±.008

.035 Max.

.010±.005

Inches

.080 ±.010

.050 ±.010

.055 Max.

.020±.010

(mm)

(1.02 ±.10)

(0.51 ±.10)

(0.64)

(.20±.10)

(mm)

(1.60 ±.20)

(0.81 ±.20)

(0.89)

(.25±.13)

(mm)

(2.03 ±.25)

(1.27 ±.25)

(1.40)

(0.51±.25 )

NPO DIELECtrIC

MINIMUM

MAXIMUM

10 pF

270 pF

10 pF

100 pF

10 pF

120 pF

82 pF

50 pF

820 pF

330 pF

220 pF

120 pF

2200 pF

1500 pF

1000 pF

680 pF

X7r DIELECtrIC

MINIMUM

MAXIMUM

100 pF

4700 pF

100 pF

10 pF

1000 pF

100 pF

1000 pF

100 pF

1500 pF

390 pF

100 pF

0.022 pF

0.010 pF

2200 pF

5600 pF

0.100 µF

0.033 µF

0.010 µF

2200 pF

t14/0603

t15/0805

www.johansondielectrics.com
