E 30/15/7
Core
■
Delivery mode: single units
B66319
Magnetic characteristics
(per set)
l/A
l
e
A
e
A
min
V
e
= 1.12 mm
–1
= 67 mm
= 60 mm
2
= 49 mm
2
= 4000 mm
3
Approx. weight
22 g/set
Ungapped
Material
N30
N27
N87
A
L
value
nH
3100 +30/–20%
1700 +30/–20%
1900 +30/–20%
e
2760
1510
1690
< 0.81 (200 mT, 25 kHz, 100 °C)
< 2.20 (200 mT, 100 kHz, 100 °C)
P
V
W/set
Ordering code
B66319G0000X130
B66319G0000X127
B66319G0000X187
Gapped
Material
g
mm
0.100.02
0.180.02
0.340.02
A
L
value
approx.
nH
460
300
195
e
Ordering code
** = 27 (N27)
**
= 87 (N87)
B66319G0100X1**
B66319G0180X1**
B66319G0340X1**
N27,
N87
410
265
175
The A
L
value in the table applies to a core set comprising one ungapped core (dimension g = 0) and
one gapped core (dimension g > 0).
Calculation factors
(for formulas, see
“E cores: general information”
)
Material
Relationship between
air gap – A
L
value
K1 (25 °C)
N27
N87
Validity range:
90
90
K2 (25 °C)
– 0.708
– 0.708
Calculation of saturation current
K3 (25 °C)
156
154
K4 (25 °C)
– 0.847
– 0.796
K3 (100 °C) K4 (100 °C)
144
140
– 0.865
– 0.873
K1, K2: 0.10 mm < s < 2.00 mm
K3, K4: 560 nH < A
L
< 60 nH
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/13
E 30/15/7
Accessories
Coil former (magnetic axis horizontal or vertical)
GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code black
B66232A, B: Valox 420-SE0
®
E45329 (M)
, GE PLASTICS B V
B66232J: Pocan B4235
®
E245249 (M)
, LANXESS AG
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3.5 s
Winding:
see Data Book 2013, chapter “Processing notes, 2.1”
Squared pins.

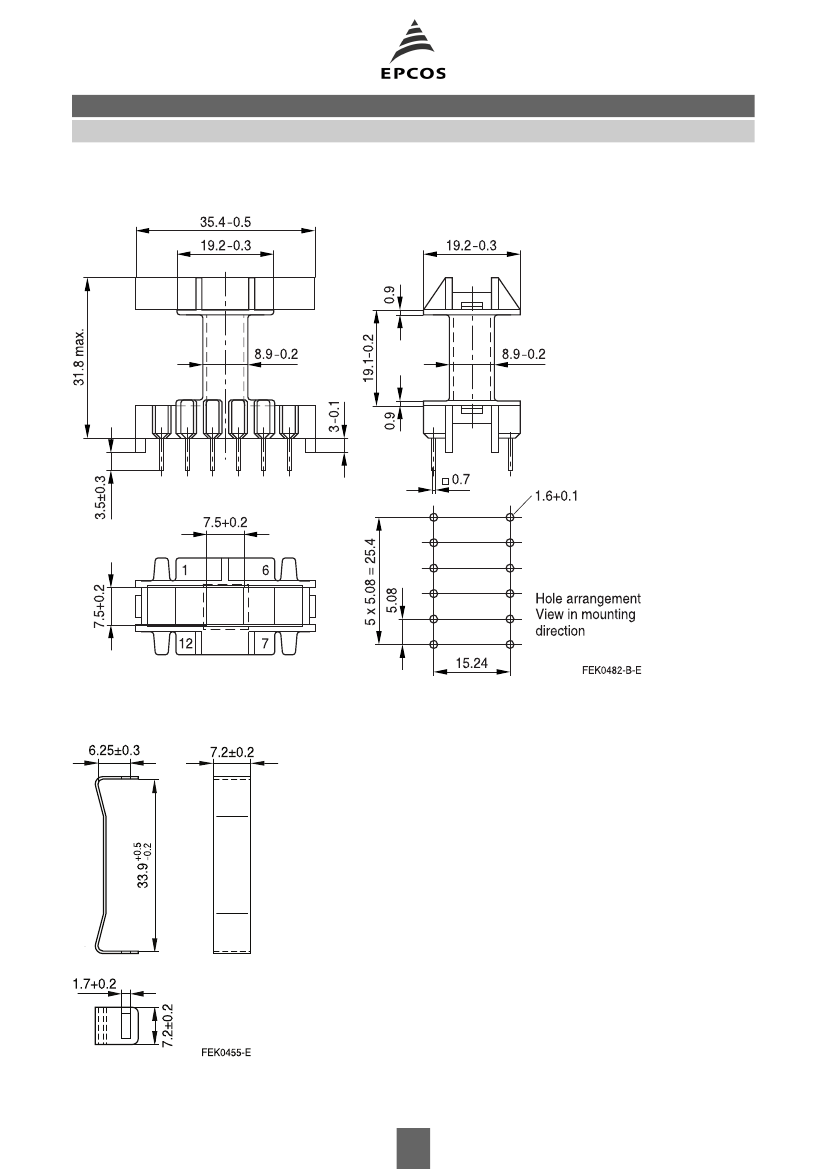

Yoke
Coil former
Version
Horizontal
Vertical
Sections
1
1
A
N
mm
2
90
90
l
N
mm
56
56
A
R
value Pins
21
21
14
12
B66232B1114T001
B66232J1112T001
B66232A2010X000
Material: Stainless spring steel (0.4 mm)
Ordering code
Material:
B66232
Yoke (ordering code per piece, 2 are required)
Horizontal version
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/13
Ferrites and accessories
Cautions and warnings
Cautions and warnings
Mechanical stress and mounting
Ferrite cores have to meet mechanical requirements during assembling and for a growing number
of applications. Since ferrites are ceramic materials one has to be aware of the special behavior
under mechanical load.
As valid for any ceramic material, ferrite cores are brittle and sensitive to any shock, fast changing
or tensile load. Especially high cooling rates under ultrasonic cleaning and high static or cyclic loads
can cause cracks or failure of the ferrite cores.
For detailed information see chapter
“Definitions”,
section 8.1.
Effects of core combination on A
L
value
Stresses in the core affect not only the mechanical but also the magnetic properties. It is apparent
that the initial permeability is dependent on the stress state of the core. The higher the stresses are
in the core, the lower is the value for the initial permeability. Thus the embedding medium should
have the greatest possible elasticity.
For detailed information see chapter
“Definitions”,
section 8.2.
Heating up
Ferrites can run hot during operation at higher flux densities and higher frequencies.
NiZn-materials
The magnetic properties of NiZn-materials can change irreversible in high magnetic fields.
Processing notes
– The start of the winding process should be soft. Else the flanges may be destroid.
– To strong winding forces may blast the flanges or squeeze the tube that the cores can no more
be mount.
– To long soldering time at high temperature (>300 °C) may effect coplanarity or pin arrangement.
– Not following the processing notes for soldering of the J-leg terminals may cause solderability
problems at the transformer because of pollution with Sn oxyd of the tin bath or burned insulation
of the wire. For detailed information see chapter
“Processing notes”,
section 8.2.
– The dimensions of the hole arrangement have fixed values and should be understood as
a recommendation for drilling the printed circuit board. For dimensioning the pins, the group
of holes can only be seen under certain conditions, as they fit into the given hole arrangement.
To avoid problems when mounting the transformer, the manufacturing tolerances for positioning
the customers’ drilling process must be considered by increasing the hole diameter.
5
