54LS195AL1MQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS195AL1MQB

54LS195AL1MQB: DescriptionShift Register, 4-Bit, TTL, CQCC20,; Categorylogic logic; File Size193KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS195AL1MQB Overview

Shift Register, 4-Bit, TTL, CQCC20,

54LS195AL1MQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Humidity sensitivity level	2A
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
Base Number Matches	1

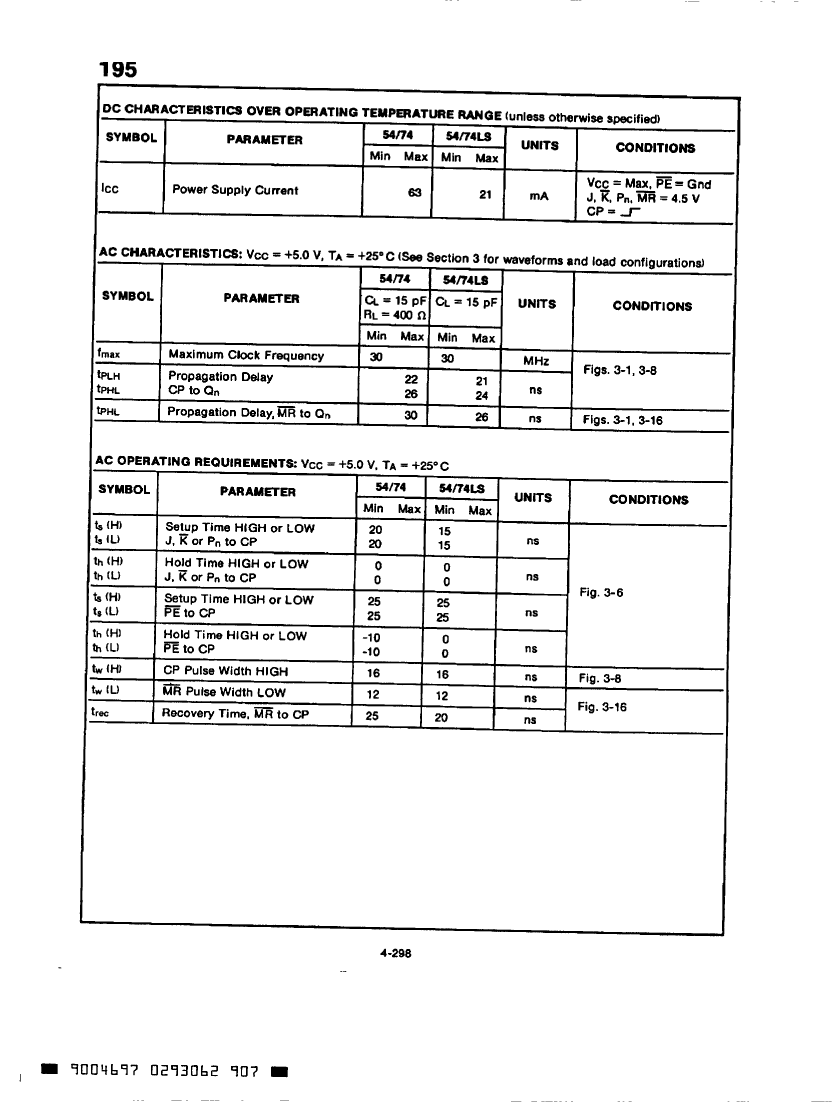

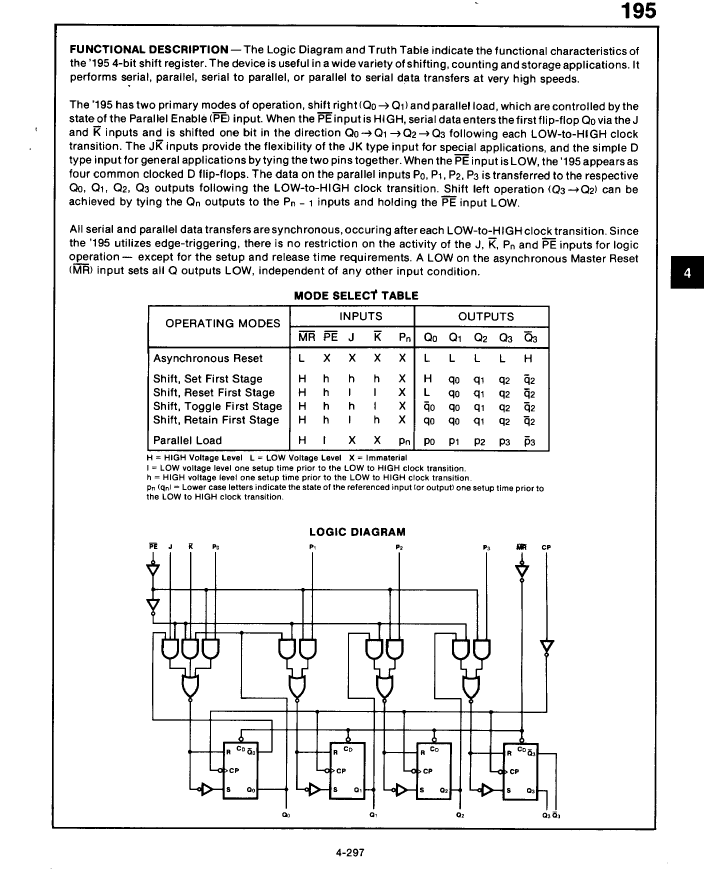

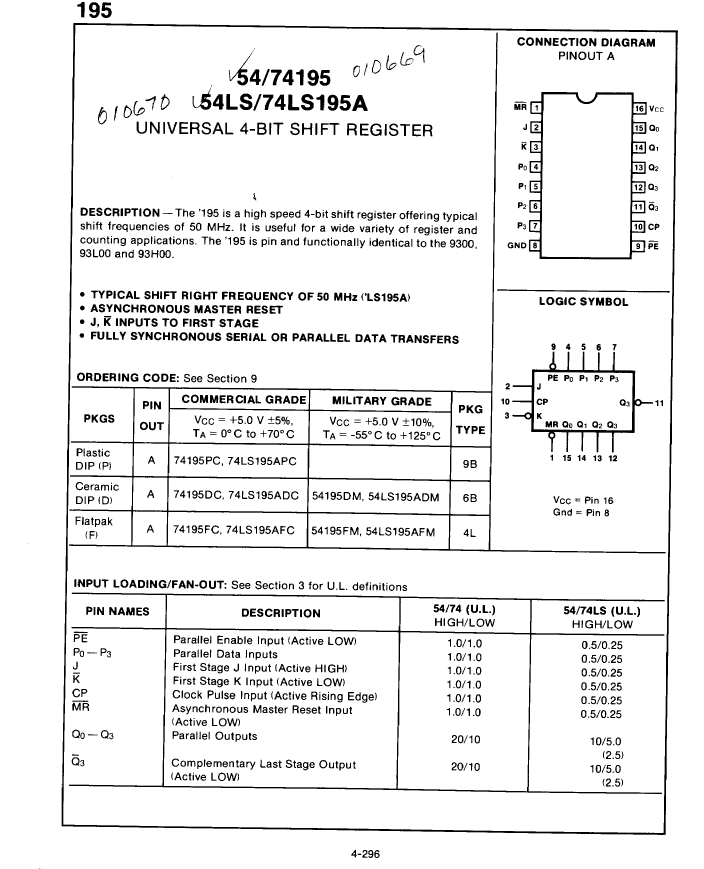

Preview

Download Datasheet

View All

54LS195AL1MQB Related Products

	54LS195AL1MQB	54LS195ADMQB	54195DMQB	54195FMQB	5962-01-090-7517	74195DCQM	74LS195AFCQR
Description	Shift Register, 4-Bit, TTL, CQCC20,	Shift Register, 4-Bit, TTL, CDIP16,	Shift Register, 4-Bit, Bidirectional, TTL, CDIP16,	Shift Register, 4-Bit, TTL, CDFP16,	Shift Register, 4-Bit, TTL, CDFP16,	Shift Register, 4-Bit, TTL, CDIP16,	Shift Register, 4-Bit, TTL, CDFP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	unknown	unknown	compliant	compli	compli	compli
JESD-30 code	S-XQCC-N20	R-XDIP-T16	R-XDIP-T16	R-XDFP-F16	R-XDFP-F16	R-XDIP-T16	R-XDFP-F16
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	20	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	DIP	DFP	DFP	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	DIP16,.3	DIP16,.3	FL16,.3	FL16,.3	DIP16,.3	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	-	-	Contains lead	Contains lead	Contains lead	Contains lead
JESD-609 code	e0	e0	e0	e0	-	e0	e0
Humidity sensitivity level	2A	-	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	250	-	-	250	250	250	250
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	30	-	-	30	30	30	30
Base Number Matches	1	1	1	1	-	-	-
package instruction	-	DIP, DIP16,.3	-	-	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3
