CAT1102007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> CAT1102007

CAT1102007: Descriptionethernet cables / networking cables 24awg 4pr solid 7ft red (10gx); CategoryThe connector Connector bracket; File Size109KB，4 Pages; ManufacturerBELDEN; Environmental Compliance

Download Datasheet Parametric View All

CAT1102007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CAT1102007	-	-	View	Buy Now

CAT1102007 Overview

ethernet cables / networking cables 24awg 4pr solid 7ft red (10gx)

CAT1102007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BELDEN
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

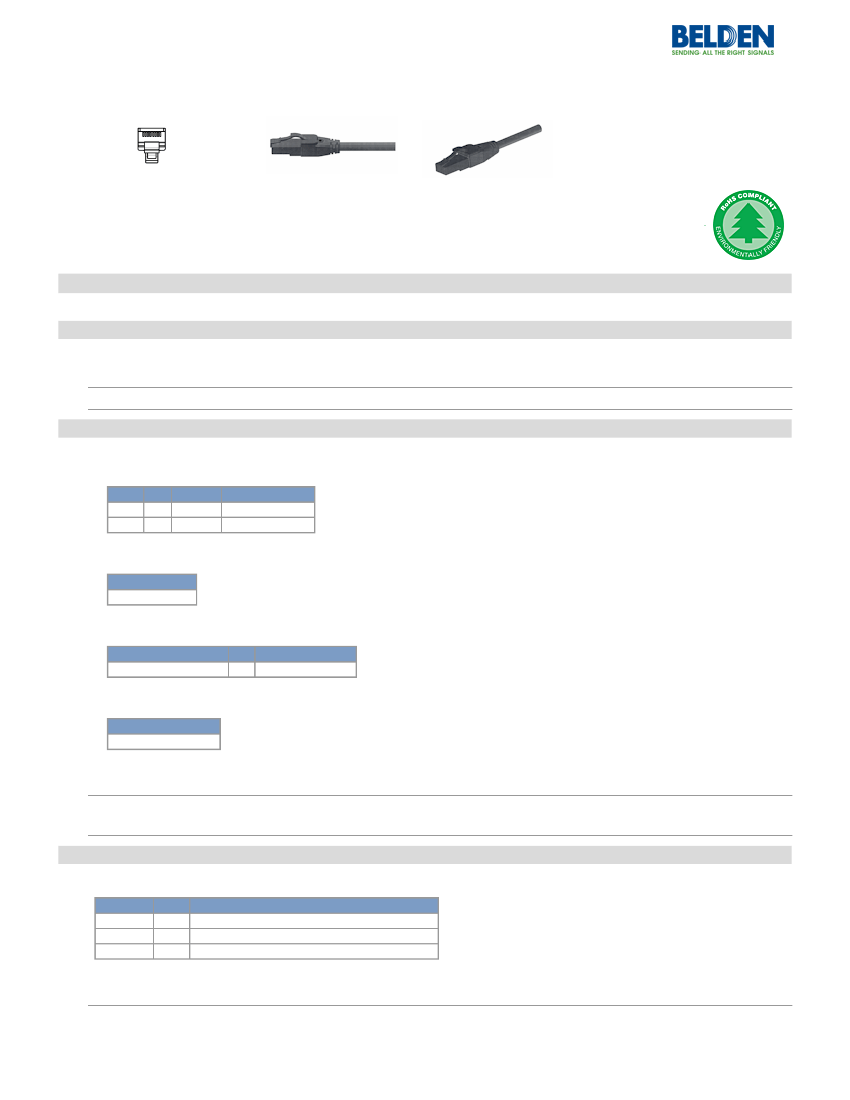

Detailed Specifications & Technical Data

ENGLISH MEASUREMENT VERSION

CAT1100000 Cable Assemblies - 10GX Modular Cord

For more Information

please call

1-800-Belden1

General Description:

10GX Traceable Patch Cord, Bonded-Pair, 4-Pair, 24 AWG Solid, CMR, T568A/B-T568A/B

Usage (Overall)

Suitable Applications:

IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T. 20 and 40

sec. flashing high intensity LED Battery operated (included), push button

activated.

10GX Modular Jacks, 10GX RJ45 Couplers, 10GX Patch Panels

Related Parts:

Multi Conductor

Physical Characteristics

Conductor

AWG:

# Pairs AWG Stranding Conductor Material

Solid

BC - Bare Copper

Insulation

Insulation Material:

Insulation Material

PO - Polyolefin

Outer Shield

Outer Shield Material:

Outer Shield Trade Name Type Outer Shield Material

Floating Screen

Foil

AL - Aluminum

Outer Jacket

Outer Jacket Material:

Outer Jacket Material

PVC - Polyvinyl Chloride

Overall Cabling

Overall Cabling Fillers:

Cross Web

Overall Diameter

Overall Nominal Diameter:

0.265 in.

Physical Characteristics (Connectivity)

Materials

Materials:

Description Type

Plug

Boot

Contacts

RJ45

Material

Polycarbonate

Elastomer

Blades Phosphor Bronze with 50u inch Gold over Nickel Plating

Color

Boot Color:

Translucent

Wiring Scheme

Wiring Scheme:

T568A/B-T568A/B

Page 1 of 4

12-04-2013

Detailed Specifications & Technical Data

ENGLISH MEASUREMENT VERSION

CAT1100000 Cable Assemblies - 10GX Modular Cord

Revision Number: 0

Revision Date: 11-11-2013

Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications

described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not

ensure product availability.

Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,

statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or

exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,

negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.

All sales of Belden products are subject to Belden's standard terms and conditions of sale.

Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the

compliance date may be in stock at Belden facilities and in our Distributor’s inventory. The information provided in this Product Disclosure, and

the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden’s knowledge,

information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide

for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not

to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for

determining the applicability of legislation and regulations based on their individual usage of the product.

Page 4 of 4

12-04-2013
