CB5369-000: DescriptionSST-48-15/FR/97/RED/NM; Categoryaccessories; File Size113KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CB5369-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CB5369-000	-	-	View	Buy Now

CB5369-000 Overview

SST-48-15/FR/97/RED/NM

CB5369-000 Parametric

Parameter Name	Attribute value
Wall type	single
color	red
Shrinkage	3:1
Material	Irradiated modified polyolefin
flexibility	semi-rigid
Fluid type	Turbine fuel, lubricating oil, hydraulic oil, defrost fluid
Expand inner diameter (minimum value)	38.1 mm [ 1.5 in ]
Recovered inner diameter (maximum value)	12.7 mm [ 0.5 in ]
Shrinkage temperature (min) (°C)	90
Resistant	friction, liquid, humidity
Operating temperature range (°C)	-55 – 110
Flammability	Non-flammable
Shrinkage temperature (°C)	121
fluid resistance	Humidity/Spray Protection
Applicable area	global, global
Encapsulation method	pieces
Product source	US
Low outgassing	no

Preview

Download Datasheet

View All

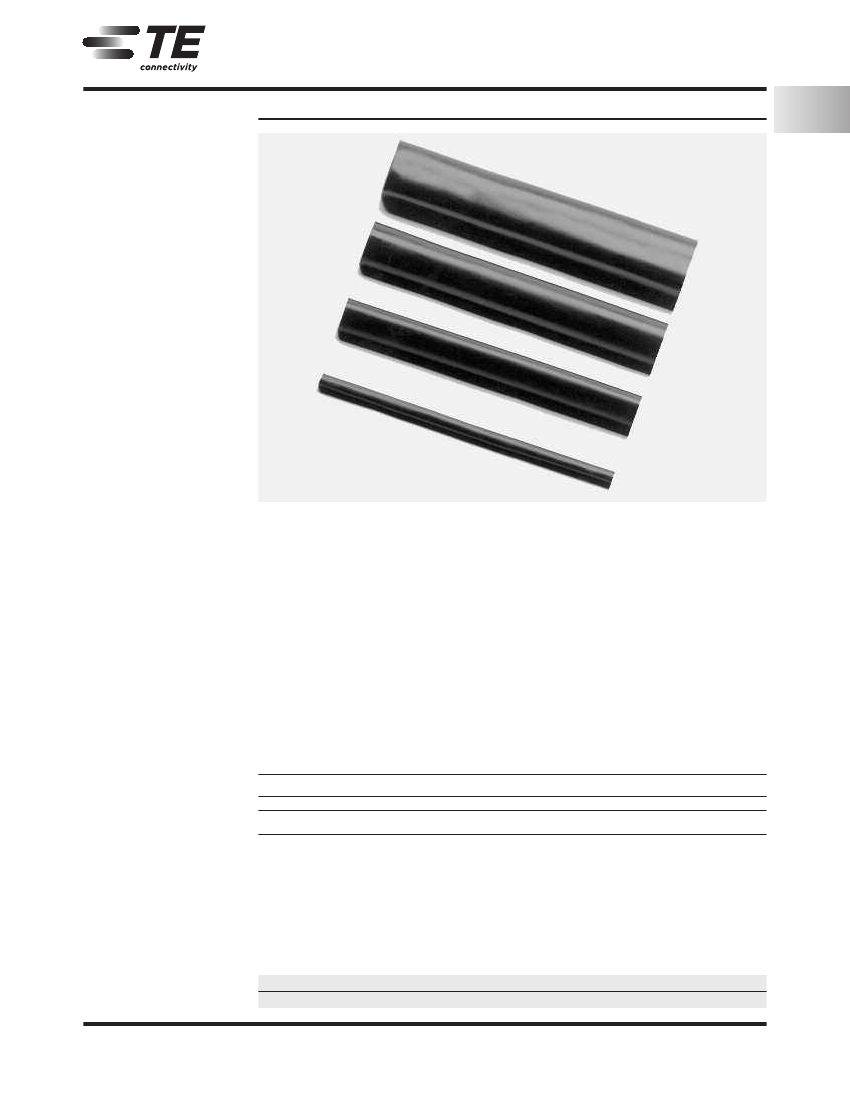

RAYCHEM Tubing Products

SST/SST-FR

Self-Sealing,

Heat-Shrinkable Tubing

Product Facts

Thick adhesive liner forms

an effective barrier against

fluids and moisture

I

Thick-wall insulation,

strain relief and abrasion

protection

I

No need for greases, tape,

or epoxy

I

Expansion ratios as high as

3:1

I

Available in flame-retardant

material

I

SST has the following

agency approvals:

- ABS (American Bureau of

Shipping)

- Lloyd’s (Lloyd’s Register of

Shipping)

I

RoHS compliant

I

1

Heat-shrinkable Tubing

Applications

SST provides a simple,

positive splice-sealing

method that offers

protection under adverse

environmental conditions.

Tubing supplied with

standard sealant provides

water sealing and environ-

mental protection in wet or

underground applications.

The thermoplastic adhesive

not only seals, but also

provides mechanical strain

relief. The polymer tubing

has excellent insulating,

abrasion-resistance, and

strain-relief properties.

Installation

Minimum shrink

temperature: 90°C [195°F]

Minimum full recovery

temperature: 121°C [250°F]

Operating Temperature Range

-55°C to 110°C

[-67°F to 230°F]

Specifications/Approvals

Series

SST

SST-FR

Military

—

AMS-DTL-23053/15*,

Classes 1 and 2

Industry

—

ASTM D 685, nonburning

Agency

ABS, Lloyd’s

Raychem

RW-2011

*Formerly MIL-I-23053/I5 and MIL-DTL-23053/15.

Available in:

Americas

I

Europe

I

Asia Pacific

I

1-117

9-1773447-9

CIS WR 08/2011

te.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-475-6222

Mexico: 52-55-1106-0800

L. & S. America: 54-11-4733-2200

Germany: 49-6251-133-1999

China: 86-400-820-6015

Japan: 81-44-844-8013

UK: 44-800-267-666

CB5369-000 Related Products

	CB5369-000	CF3734-000	CF3733-000
Description	SST-48-15/FR/97/RED/NM	SST-48-15/FR/WHT/97	SST-48-15/FR/RED/97
Wall type	single	single	single
color	red	White	red
Shrinkage	3:1	3:1	3:1
Material	Irradiated modified polyolefin	Irradiated modified polyolefin	Irradiated modified polyolefin
flexibility	semi-rigid	semi-rigid	semi-rigid
Fluid type	Turbine fuel, lubricating oil, hydraulic oil, defrost fluid	Turbine fuel, lubricating oil, hydraulic oil, defrost fluid	Turbine fuel, lubricating oil, hydraulic oil, defrost fluid
Expand inner diameter (minimum value)	38.1 mm [ 1.5 in ]	38.1 mm [ 1.5 in ]	38.1 mm [ 1.5 in ]
Recovered inner diameter (maximum value)	12.7 mm [ 0.5 in ]	12.7 mm [ 0.5 in ]	12.7 mm [ 0.5 in ]
Shrinkage temperature (min) (°C)	90	90	90
Resistant	friction, liquid, humidity	friction, liquid, humidity	friction, liquid, humidity
Operating temperature range (°C)	-55 – 110	-55 – 110	-55 – 110
Flammability	Non-flammable	ignition retardation	ignition retardation
Shrinkage temperature (°C)	121	121	121
fluid resistance	Humidity/Spray Protection	Humidity/Spray Protection	Humidity/Spray Protection
Applicable area	global, global	global, global	global, global
Encapsulation method	pieces	pieces	pieces
Product source	US	US	US
Low outgassing	no	no	no
